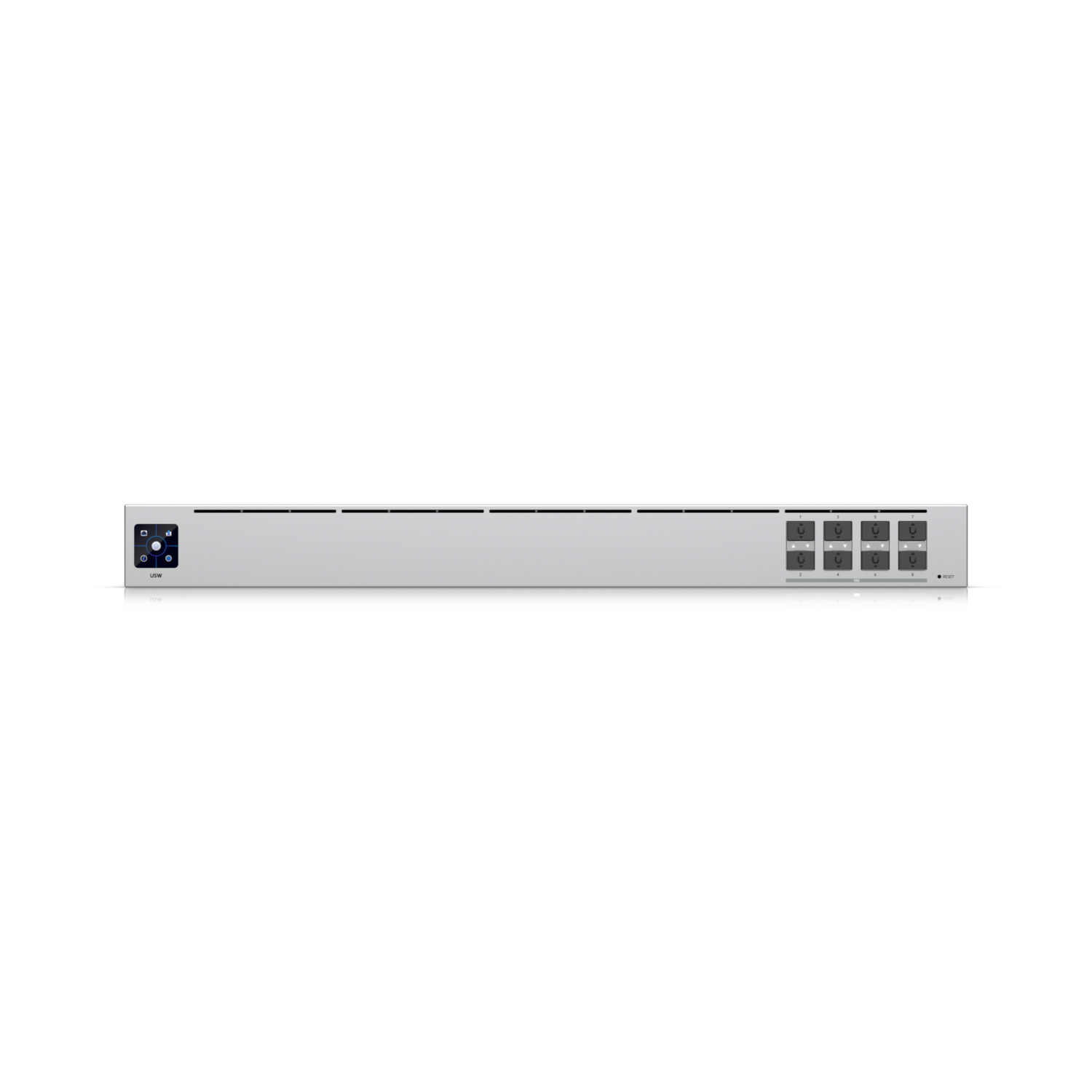

USW-Aggregation

Product Overview

Mechanical
Dimensions	442 x 120 x 43.7 mm (17.4 x 4.7 x 1.7")
Weight	Without mounting brackets: 2.6 kg (5.8 lb) With mounting brackets: 2.7 kg (6 lb)
Enclosure material	SGCC steel
Hardware
Management interface	Ethernet In-Band
Networking interface	(8) 10G SFP+ ports
Total non-blocking throughput	80 Gbps
Switching capacity	160 Gbps
Forwarding rate	119.04 Mpps
Power method	Universal input, 100—240V AC, 50/60 Hz
Power supply	AC/DC, internal, 36W
Supported voltage range	100—240V AC
Max. power consumption	30W
ESD/EMP protection	Air: ± 16kV, contact: ± 12kV
Max. number of supported SFP+ modules	UACC-OM-MM-10G: 8 UACC-OM-SM-10G: 8 UACC-CM-RJ45-10G: 4 UACC-CM-RJ45-MG: 4
Services	SMB Layer 2 GbE switch
LCM display	(1) 1.3" LCM color touchscreen
Button	Factory reset
Ambient operating temperature	-5 to 40° C (23 to 104° F)
Ambient operating humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
Switching Features
Layer 2 features	IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs
Layer 3 features	–
LEDs
System	Status
SFP+	Link/activity
Application Requirements
UniFi Network	Version 5.14.12 and later

Mechanical
Dimensions	442 x 120 x 43.7 mm (17.4 x 4.7 x 1.7")
Weight	Without mounting brackets: 2.6 kg (5.8 lb) With mounting brackets: 2.7 kg (6 lb)
Enclosure material	SGCC steel
Hardware
Management interface	Ethernet In-Band
Networking interface	(8) 10G SFP+ ports
Total non-blocking throughput	80 Gbps
Switching capacity	160 Gbps
Forwarding rate	119.04 Mpps
Power method	Universal input, 100—240V AC, 50/60 Hz
Power supply	AC/DC, internal, 36W
Supported voltage range	100—240V AC
Max. power consumption	30W
ESD/EMP protection	Air: ± 16kV, contact: ± 12kV
Max. number of supported SFP+ modules	UACC-OM-MM-10G: 8 UACC-OM-SM-10G: 8 UACC-CM-RJ45-10G: 4 UACC-CM-RJ45-MG: 4
Services	SMB Layer 2 GbE switch
LCM display	(1) 1.3" LCM color touchscreen
Button	Factory reset
Ambient operating temperature	-5 to 40° C (23 to 104° F)
Ambient operating humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
Switching Features
Layer 2 features	IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs
Layer 3 features	–
LEDs
System	Status
SFP+	Link/activity
Application Requirements
UniFi Network	Version 5.14.12 and later

Current Price

AUD 526.36
