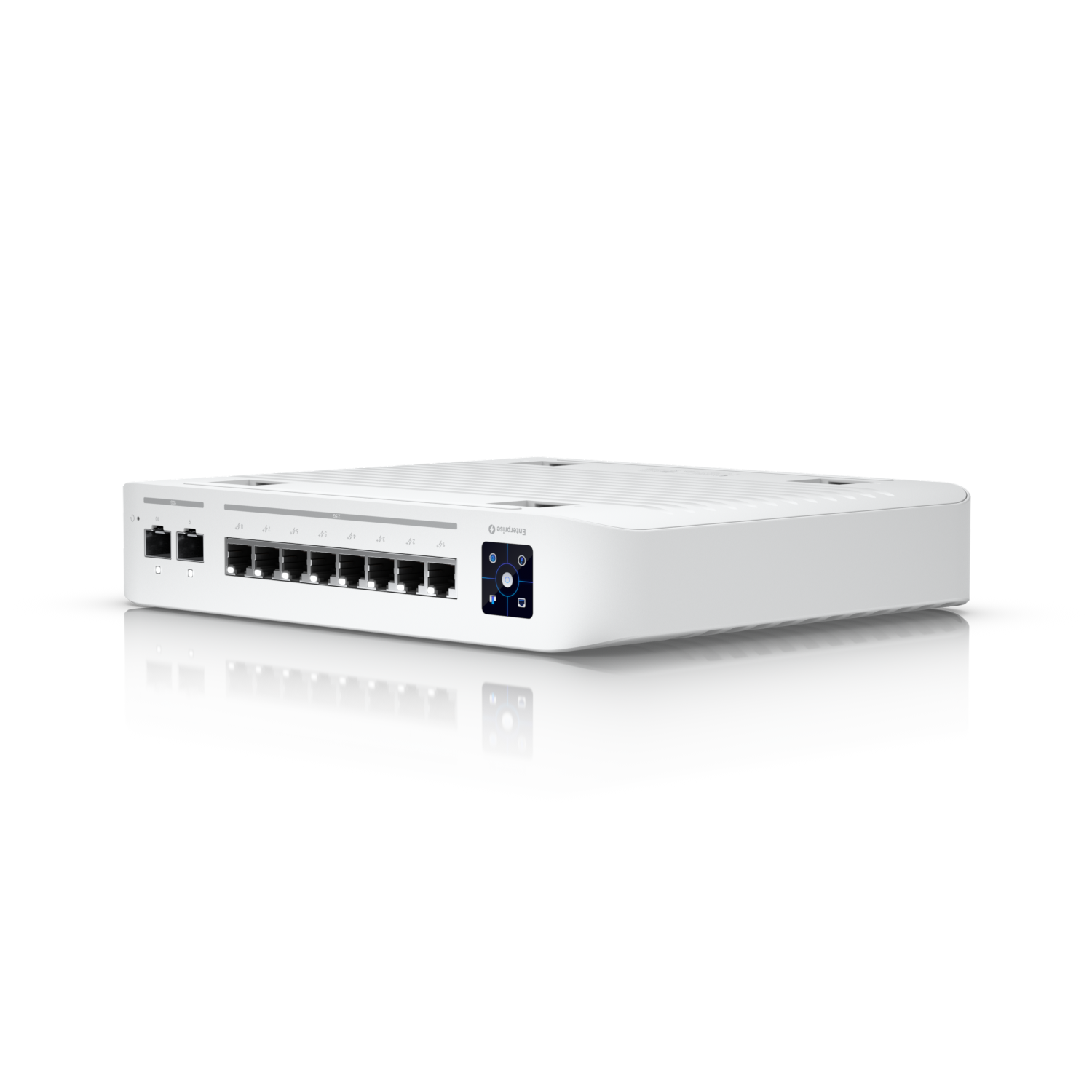

USW-Enterprise-8-PoE
Product Overview
| Mechanical | |
|---|---|
| Dimensions | 200 x 248 x 44 mm (7.9 x 9.8 x 1.7") |
| Weight | 2.4 kg (5.3 lb) |
| Enclosure material | Polycarbonate |
| Mount material | Polycarbonate |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (8) 2.5 GbE RJ45 ports (2) 10G SFP+ ports |
| PoE interface | (8) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| Total non-blocking throughput | 40 Gbps |
| Switching capacity | 80 Gbps |
| Forwarding rate | 59.52 Mpps |
| Power method | Universal input, 100—240V AC, 2A Max., 50/60 Hz |
| Power supply | AC/DC, internal, 150W |
| Supported voltage range | 100—240V AC |
| Total available PoE | 120W |
| Max. PoE+ wattage per port by PSE | 32W |
| Voltage range PoE mode | PoE: 44—57V PoE+: 50—57V |
| LCM Display | (1) 1.3" color touchscreen |
| Mounting | Desktop-mountable (Do not physically stack the USW-Enterprise-8-PoE) |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| Ambient operating temperature | -5 to 45° C (23 to 113° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs |
| Layer 3 features | DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks |
| LEDs | |
| System | Status |
| Ethernet | Link/activity |
| SFP+ | Link/activity |
| Application Requirements | |
| UniFi Network | Version 6.3.51 and later |
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 200 x 248 x 44 mm (7.9 x 9.8 x 1.7") |
| Weight | 2.4 kg (5.3 lb) |
| Enclosure material | Polycarbonate |
| Mount material | Polycarbonate |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (8) 2.5 GbE RJ45 ports (2) 10G SFP+ ports |
| PoE interface | (8) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| Total non-blocking throughput | 40 Gbps |
| Switching capacity | 80 Gbps |
| Forwarding rate | 59.52 Mpps |
| Power method | Universal input, 100—240V AC, 2A Max., 50/60 Hz |
| Power supply | AC/DC, internal, 150W |
| Supported voltage range | 100—240V AC |
| Total available PoE | 120W |
| Max. PoE+ wattage per port by PSE | 32W |
| Voltage range PoE mode | PoE: 44—57V PoE+: 50—57V |
| LCM Display | (1) 1.3" color touchscreen |
| Mounting | Desktop-mountable (Do not physically stack the USW-Enterprise-8-PoE) |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| Ambient operating temperature | -5 to 45° C (23 to 113° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs |
| Layer 3 features | DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks |
| LEDs | |
| System | Status |
| Ethernet | Link/activity |
| SFP+ | Link/activity |
| Application Requirements | |
| UniFi Network | Version 6.3.51 and later |
