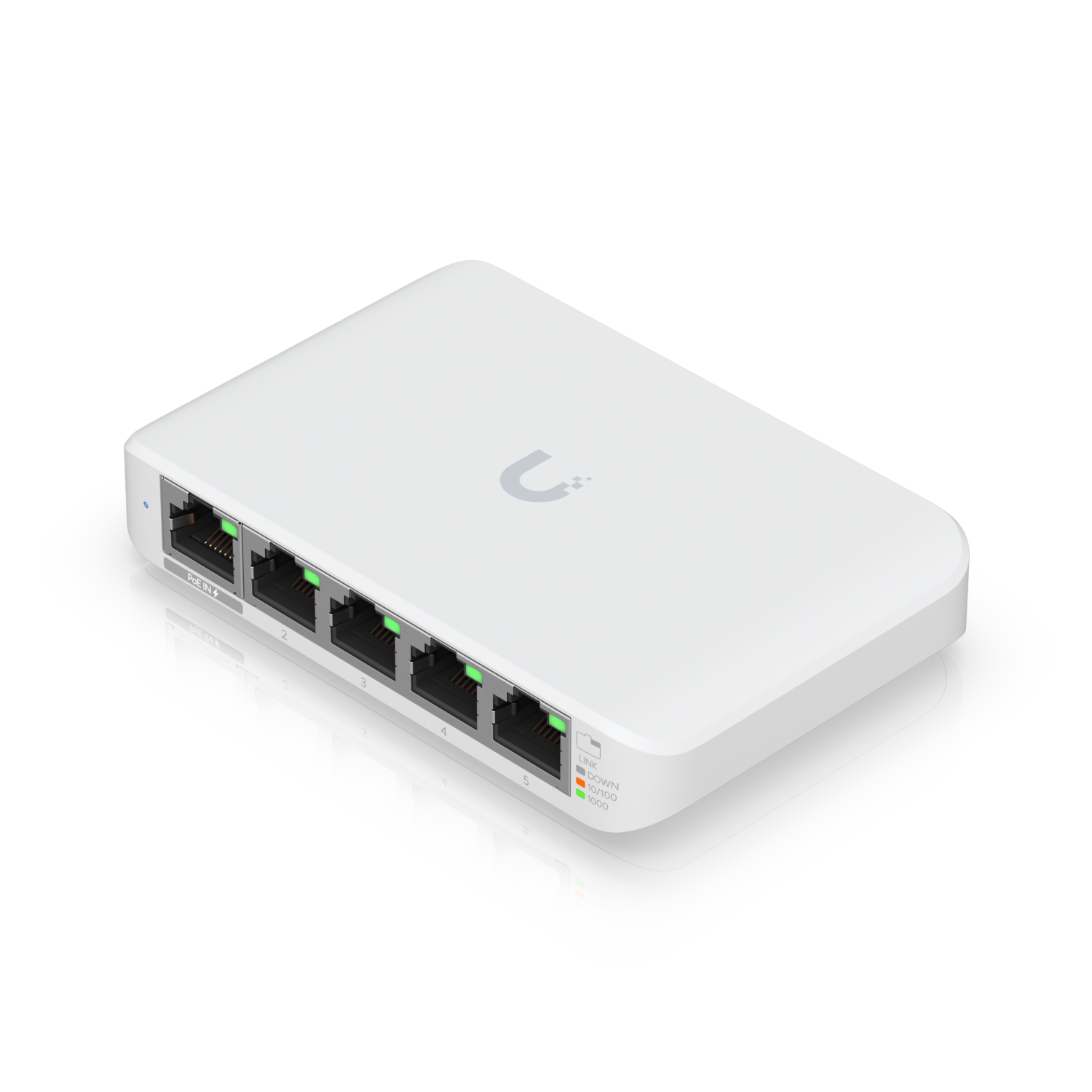

USW-Flex-Mini
Product Overview
| Mechanical | |
|---|---|
| Dimensions | 107 x 70 x 21 mm (4.2 x 2.8 x 0.8") |
| Weight | 150 g (5.3 oz) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (5) GbE RJ45 ports |
| Total non-blocking throughput | 5 Gbps |
| Switching capacity | 10 Gbps |
| Forwarding rate | 7.44 Mpps |
| Power method | (1) USB Type C, 5V (1) PoE/PoE+, 44—57V DC, 0.05—0.04A |
| Power supply | 5V, 1A power adapter* *Only single-unit packages include the 5V, 1A USB-C power adapter. |
| Supported voltage range | USB Type C: 4.7—5.3V DC PoE/PoE+: 44—57V DC |
| Max. power consumption | 2.5W |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| Button | Factory reset |
| Ambient operating temperature | -5 to 45° C (23 to 113° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | Port isolation Storm control Port mirroring Multicast / broadcast rate limiting Flow control Jumbo frames Egress rate limit |
| Layer 3 features | – |
| LEDs | |
| System | Status |
| Ethernet | Speed/link/activity |
| Application Requirements | |
| UniFi Network | Version 5.12.5 and later |
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 107 x 70 x 21 mm (4.2 x 2.8 x 0.8") |
| Weight | 150 g (5.3 oz) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (5) GbE RJ45 ports |
| Total non-blocking throughput | 5 Gbps |
| Switching capacity | 10 Gbps |
| Forwarding rate | 7.44 Mpps |
| Power method | (1) USB Type C, 5V (1) PoE/PoE+, 44—57V DC, 0.05—0.04A |
| Power supply | 5V, 1A power adapter* *Only single-unit packages include the 5V, 1A USB-C power adapter. |
| Supported voltage range | USB Type C: 4.7—5.3V DC PoE/PoE+: 44—57V DC |
| Max. power consumption | 2.5W |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| Button | Factory reset |
| Ambient operating temperature | -5 to 45° C (23 to 113° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | Port isolation Storm control Port mirroring Multicast / broadcast rate limiting Flow control Jumbo frames Egress rate limit |
| Layer 3 features | – |
| LEDs | |
| System | Status |
| Ethernet | Speed/link/activity |
| Application Requirements | |
| UniFi Network | Version 5.12.5 and later |
