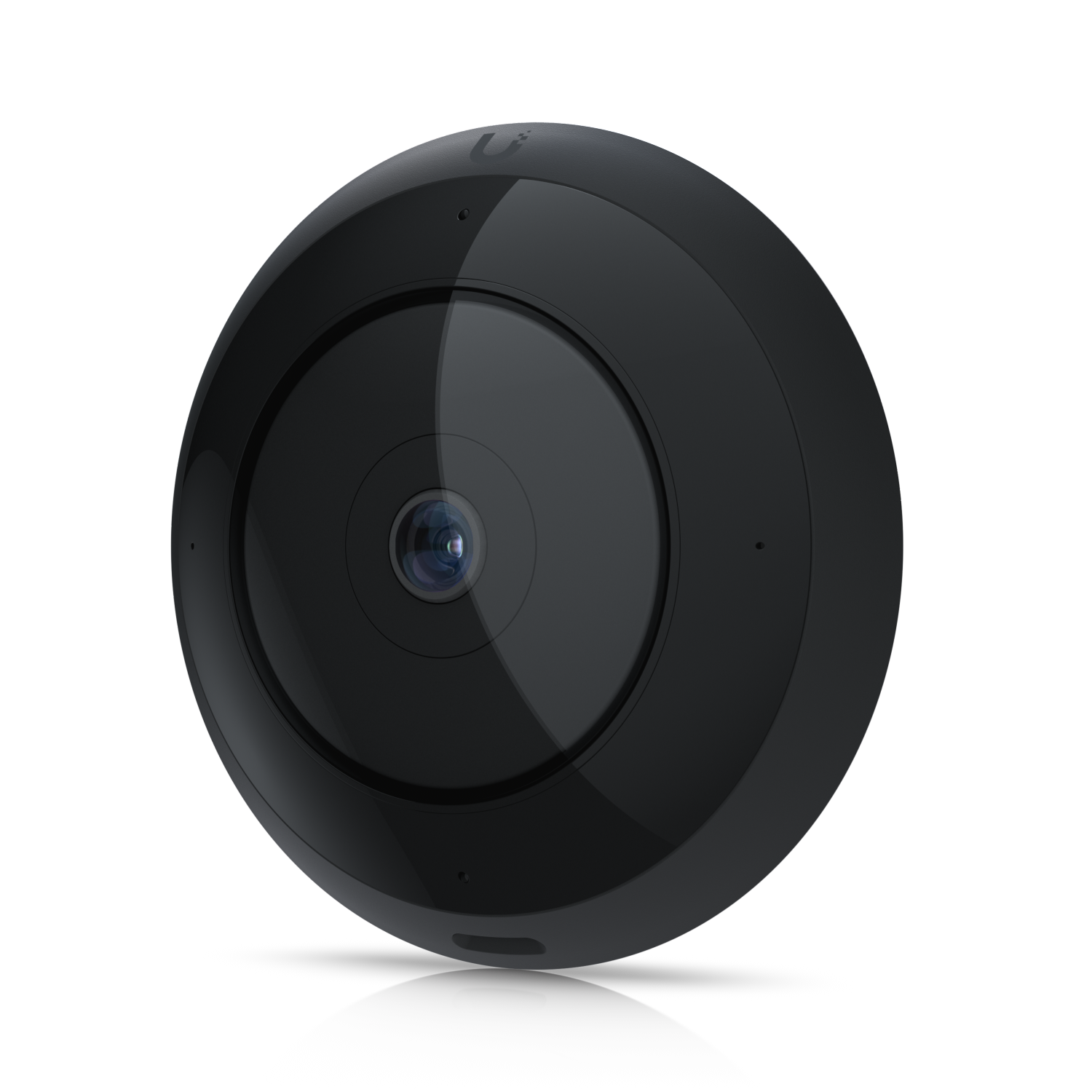

UVC-AI-360
Product Overview
| Mechanical | |
|---|---|
| Dimensions | Ø147 x 49 mm (Ø5.8 x 1.9") |
| Weight | Without mount: 655 g (1.4 lb) With outdoor accessory: 685 g (1.5 lb) |
| Enclosure material | Aluminum alloy, polycarbonate, hard-coated dome |
| Mount material | Polycarbonate, stainless steel |
| Weatherproofing | IPX4 |
| Resistance | IK08 |
| Optics | |
| Sensor | 5MP CMOS |
| Lens | Fisheye lens |
| View angle | 360° |
| Night mode | Built-in IR LED illumination and IR cut filter |
| Video | |
| Resolution | 4MP 1920 x 1920 (1:1) |
| Max. frame rate | 30 FPS |
| Image settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, masking, text overlay |
| System | |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Networking interface | GbE RJ45 port |
| Power method | PoE |
| Power supply | 48V DC, 0.18A PoE |
| Max. power consumption | 8.64W |
| Supported voltage range | 37—57V DC |
| LED | R/G/B/W |
| Button | Factory reset |
| Mounting | Surface mount |
| Ambient operating temperature | -20 to 40° C (-4 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Audio | |
| Microphone | Yes (Can be disabled) |
| Speaker | Yes |
| Software | |
| Web application | UniFi Protect: Version 1.10.0 and later |
| Mobile app | UniFi Protect iOS™ and Android™ |
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | Ø147 x 49 mm (Ø5.8 x 1.9") |
| Weight | Without mount: 655 g (1.4 lb) With outdoor accessory: 685 g (1.5 lb) |
| Enclosure material | Aluminum alloy, polycarbonate, hard-coated dome |
| Mount material | Polycarbonate, stainless steel |
| Weatherproofing | IPX4 |
| Resistance | IK08 |
| Optics | |
| Sensor | 5MP CMOS |
| Lens | Fisheye lens |
| View angle | 360° |
| Night mode | Built-in IR LED illumination and IR cut filter |
| Video | |
| Resolution | 4MP 1920 x 1920 (1:1) |
| Max. frame rate | 30 FPS |
| Image settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, masking, text overlay |
| System | |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Networking interface | GbE RJ45 port |
| Power method | PoE |
| Power supply | 48V DC, 0.18A PoE |
| Max. power consumption | 8.64W |
| Supported voltage range | 37—57V DC |
| LED | R/G/B/W |
| Button | Factory reset |
| Mounting | Surface mount |
| Ambient operating temperature | -20 to 40° C (-4 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Audio | |
| Microphone | Yes (Can be disabled) |
| Speaker | Yes |
| Software | |
| Web application | UniFi Protect: Version 1.10.0 and later |
| Mobile app | UniFi Protect iOS™ and Android™ |
