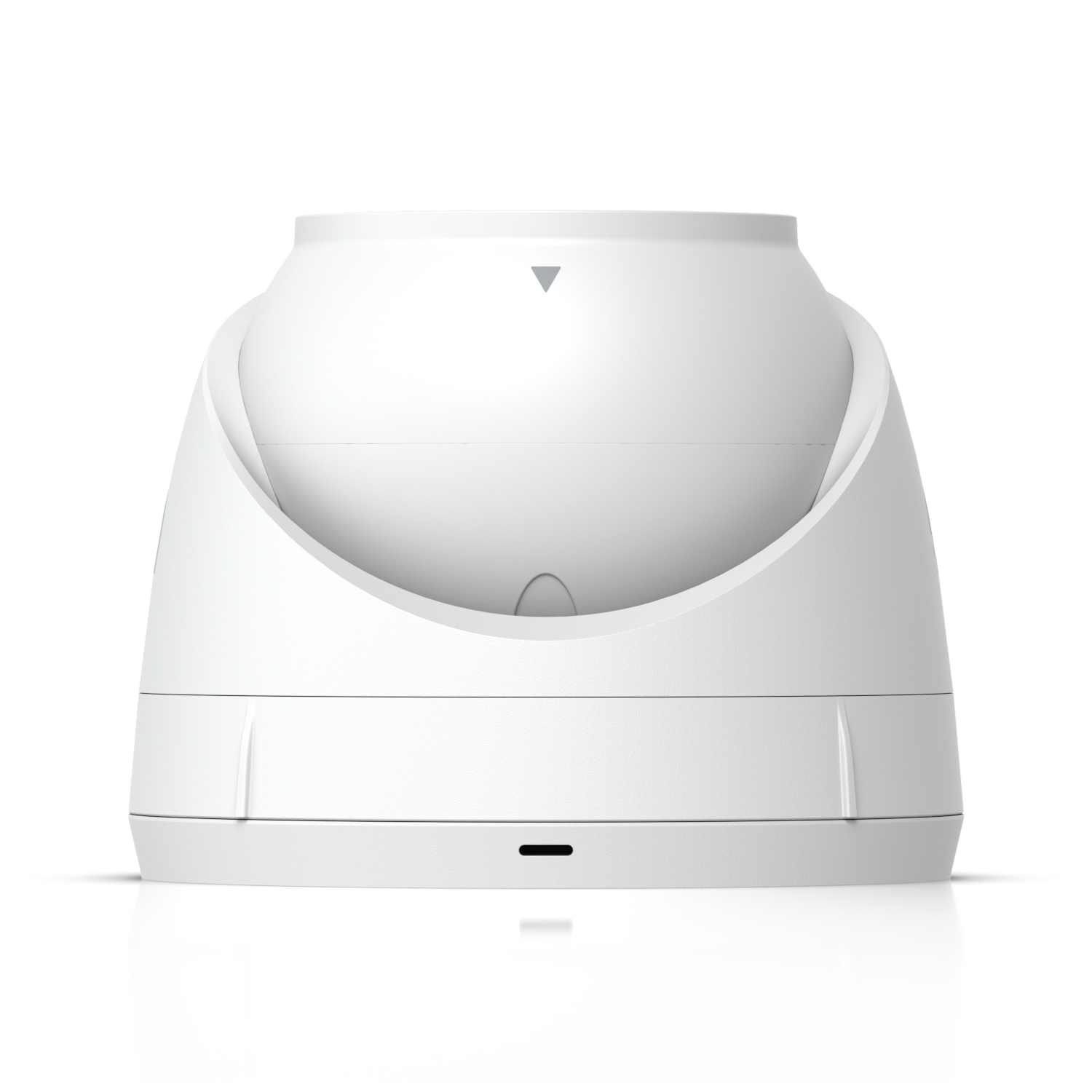

UVC-G5-Turret-Ultra
Product Overview
| Mechanical | |
|---|---|
| Dimensions | Ø90 x 71.2 mm (Ø3.5 x 2.8") |
| Weight | 330 g (11.6 oz) |
| Enclosure material | Aluminum alloy, UV-stabilized polycarbonate |
| Weatherproofing | IP66 |
| Resistance | IK04 |
| Cable jacket enclosure dimensions | Ø20 x 70.6 mm (0.8 x 2.8") |
| Cable jacket enclosure materials | Thermoplastic elastomer, polycarbonate, silicone rubber |
| Cable length | 30 cm (1 ft) |
| Cable diameter | 5 mm (0.2") |
| Cable jacket material | Polycarbonate |
| Cable connector type | RJ45 |
| Optics | |
| Sensor | 1/2.4" CMOS |
| Lens | Fixed focal length |
| View angle | H: 102.4°, V: 54.9°, D: 120.6° |
| Night mode | Built-in IR LED illumination and IR cut filter |
| Video | |
| Resolution | 4MP 2688 x 1512 (16:9) |
| Max. frame rate | 30 FPS |
| Image settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| System | |
| Processor | Dual-core Arm® Cortex®-A7 based chip |
| Networking interface | 10/100 MbE RJ45 port |
| Max. power consumption | 4W |
| Power method | PoE |
| Supported voltage range | 37–57V DC |
| LED | R/G/B/W |
| Button | Factory reset |
| Mounting | Surface mount |
| Ambient operating temperature | -30 to 50º C (-22 to 122º F) |
| Ambient operating humidity | 0 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Audio | |
| Microphone | Yes (Can be disabled) |
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | Ø90 x 71.2 mm (Ø3.5 x 2.8") |
| Weight | 330 g (11.6 oz) |
| Enclosure material | Aluminum alloy, UV-stabilized polycarbonate |
| Weatherproofing | IP66 |
| Resistance | IK04 |
| Cable jacket enclosure dimensions | Ø20 x 70.6 mm (0.8 x 2.8") |
| Cable jacket enclosure materials | Thermoplastic elastomer, polycarbonate, silicone rubber |
| Cable length | 30 cm (1 ft) |
| Cable diameter | 5 mm (0.2") |
| Cable jacket material | Polycarbonate |
| Cable connector type | RJ45 |
| Optics | |
| Sensor | 1/2.4" CMOS |
| Lens | Fixed focal length |
| View angle | H: 102.4°, V: 54.9°, D: 120.6° |
| Night mode | Built-in IR LED illumination and IR cut filter |
| Video | |
| Resolution | 4MP 2688 x 1512 (16:9) |
| Max. frame rate | 30 FPS |
| Image settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| System | |
| Processor | Dual-core Arm® Cortex®-A7 based chip |
| Networking interface | 10/100 MbE RJ45 port |
| Max. power consumption | 4W |
| Power method | PoE |
| Supported voltage range | 37–57V DC |
| LED | R/G/B/W |
| Button | Factory reset |
| Mounting | Surface mount |
| Ambient operating temperature | -30 to 50º C (-22 to 122º F) |
| Ambient operating humidity | 0 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Audio | |
| Microphone | Yes (Can be disabled) |
Price Trend
Current Price
AUD 171.82
