Matrix Switch - 4x4 HDMI w/Audio - 4K 60
Matrix Switch - 4x4 HDMI w/Audio - 4K 60
Product Overview
StarTech.com 4x4 HDMI Matrix Switch with Audio and Ethernet Control - 4K 60Hz - HDMI Switcher Box - Rack Mountable - With Remote Ethernet & RS232 Control - Share and switch four distinct HDMI AV signals between four separate displays in a matrix configuration-WebGUI enables users to control the 4x4 HDMI Matrix Switch remotely- Enjoy astonishing picture quality with support for resolutions up to 4K 60Hz

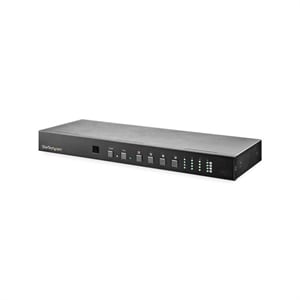

This 4x4 HDMI matrix switch lets you share four HDMI video sources between four independent displays or projectors, and switch between which source is active on each display device.
True 4K at 60Hz
The HDMI switcher box provides a high level of audio and video performance, with superior contrast and crisp, clear imagery. With support for resolutions up to 4K 60Hz (4:4:4 pixel format, 8-bit color depth) and HDR, the matrix switch is ideal for conventions or trade shows, restaurants and classroom settings, as well as hospital/medical applications.
Plus, the 4K 60Hz HDMI switch is backward compatible with earlier versions of HDMI, so it's easy to use with your existing devices and displays.
Optimized Functionality
This 4x4 matrix switch is equipped with convenient push-button switching, WebGUI and RS232 control, and also features a front-panel LED display for easy status monitoring.
The HDMI switch box enables you to switch each input, meaning that different A/V sources can be shown on each output, or a single source can be output to all displays.
Ultimate Convenience
The matrix switcher includes a remote control and IR extender module that provides simple control from a distance, and is designed to save space with a standalone or rack-mounting option (ear-mounts included).
VS424HD4K60 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
- FLEXIBLE SWITCHING: Share and switch four HDMI inputs between four HDMI displays with this 4x4 HDMI matrix switch that lets you choose which source is active on each display device
- UHD RESOLUTION: This 4K 60Hz HDMI splitter supports true 4K video and HDR for uncompromising picture quality and is equipped with convenient push-button switching
- WIDE COMPATIBILITY: This HDMI switch box features EDID management support for greater compatibility with your video source and display
- CONVENIENT SETUP: Designed with space in mind this HDMI 2.0 matrix video selector features a rack-mounting option as well as a standalone option and features WebGUI and RS232 control
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this HDMI Matrix Switch is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance
Technical Specifications
Product Color | Black |
Number of HDMI Inputs | 4 |
Number of HDMI Outputs | 4 |
HDMI In | Yes |
HDMI Out | Yes |
Connectivity (RJ-45) | Yes |
Device Supported | Projector |
Display | |
Connectivity Technology | Cable |
Number of Displays Supported | 4 |
Number of Input Devices Supported | 4 |
Product Type | Audio/Video Switchbox |
Manufacturer Part Number | VS424HD4K60 |
Manufacturer Website Address | http://www.startech.com/au |
Manufacturer | StarTech.com |
Product Name | Audio/Video Switchbox |
Brand Name | StarTech.com |
