4x4 HDMI Matrix Video Switch Splitter
4x4 HDMI Matrix Video Switch Splitter
Product Overview
StarTech.com Audio/Video Switchbox - Cable - TAA Compliant - 1920 x 1200 - WUXGA - 1080p - 4 Input Device - 4 Display - Computer, Display, Media Player, Digital Signage - 10 m Range - 4 x HDMI In - 4 x HDMI Out - Rack-mountable

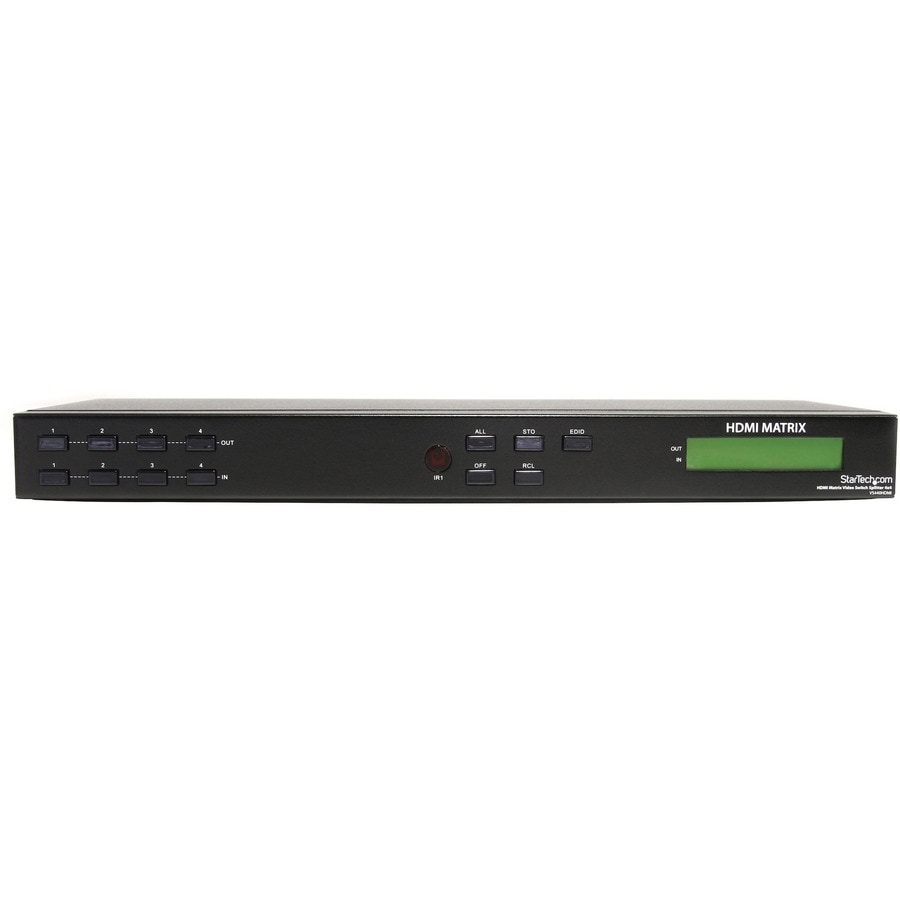

The VS440HDMI 4x4 HDMI® Audio/Video Matrix Switch/Splitter (with Audio and RS232) lets you share up to 4 distinct HDMI or DVI inputs (using HDMI to DVI adapters - not included), with audio, between 4 independent displays or projectors.
Providing convenient front push-button and RS232 PC software control, this matrix switch allows each input and the corresponding audio to be switched individually, meaning that different A/V sources can be shown on each output, or a single source can be output to several offering maximum flexibility.
The switcher features a front panel LCD display for easy status monitoring, plus an included remote control and IR extender module for simple control from a distance.
Designed to provide maximum functionality while saving space, the HDMI Video Matrix Switch can be used as a standalone solution or rack-mounted using ear-mounts (included).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Technical Specifications
Maximum Operating Distance | 10 m |
TAA Compliant | Yes |
Maximum Video Resolution | 1920 x 1200 |
Serial Port | Yes |
Number of HDMI Inputs | 4 |
Number of HDMI Outputs | 4 |
HDMI In | Yes |
HDMI Out | Yes |
Product Type | Audio/Video Switchbox |
Manufacturer Part Number | VS440HDMI |
Manufacturer Website Address | http://www.startech.com/au |
Packaged Quantity | 1 |
Manufacturer | StarTech.com |
Product Name | 4x4 HDMI Matrix Video Switch Splitter with Audio and RS232 |
Brand Name | StarTech.com |
Weight (Approximate) | 2.40 kg |
Height | 43.2 mm |
Width | 185.4 mm |
Depth | 439.4 mm |
Product Color | Black |
Device Supported | Media Player |
Display | |
Digital Signage | |
Computer | |
Connectivity Technology | Cable |
Number of Displays Supported | 4 |
Number of Input Devices Supported | 4 |
