15.0 FULL HD PANEL MOUNT PCAP TOUCH MONI
15.0 FULL HD PANEL MOUNT PCAP TOUCH MONI
Product Overview

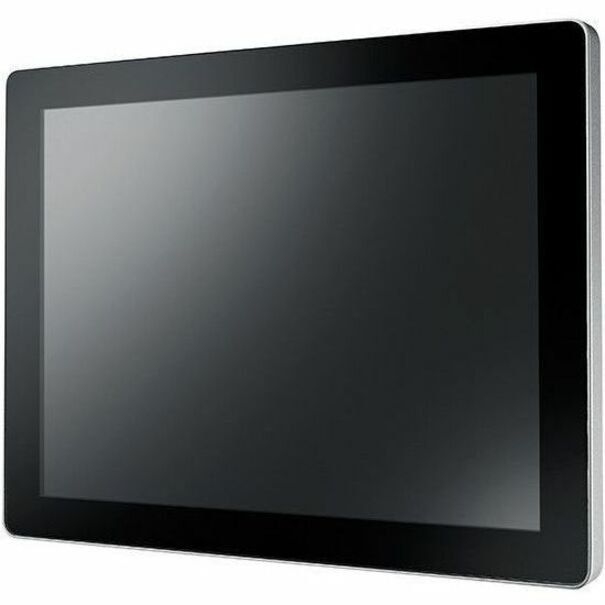

Advantech VUE-2150 15" Class LCD Touchscreen Monitor - 4:3 - 18 ms - 15" Viewable - Projected Capacitive - 10 Point(s) Multi-touch Screen - 1024 x 768 - XGA - 16.7 Million Colours - 500 cd/m² - Speakers - HDMI - USB - VGA - DisplayPort - 1 x HDMI In - 2 Year
VUE-2000 15.0 Full HD Panel Mount PCAP Touch Monitor- 15.0" active screen size (Square)
- Full-flat cover glass for extremely simple surface design
- Anti-glare (AG) treatment on screen for comfortable viewing experience
- Built-in multiple I/O interfaces for diverse media connectivity
- Adopts industrial-grade components for guaranteed performance
- Mount with multi-way and easy to extend peripheral devices (box PC/camera...)
- Front IP65 water-proof rating and IK08 high-level impact protection
- Support 10-point touch function (PCAP technology)
- Excellent noise immunity well-suited for rugged applications (CS 10V)
Technical Specifications
Audio
| Speakers | Yes |
Power Description
| Frequency | 60 Hz |
| 50 Hz |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Touchscreen Information
| Touchscreen Type | Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 10 |
Technical Information
| Aspect Ratio | 4:3 |
| Pixel Pitch | 0.30 mm |
| Response Time | 18 ms |
| Features | Cable Management |
| ComfortView | |
| Anti-glare | |
| On-screen Display (OSD) | |
| Mount Type | Arm-mountable |
| Panel Mount | |
| Bracket-mountable | |
| Wall Mountable | |
| Viewable Screen Size | 15" |
| Screen Mode | XGA |
| Horizontal Viewing Angle | 176° |
| Vertical Viewing Angle | 176° |
| Screen Size Class | 15" |
| Ingress Protection (IP) Rating | IP65 |
| Impact Protection (IK) Rating | IK08 |
Video
| Brightness | 500 cd/m² |
| Color Supported | 16.7 Million Colours |
| Maximum Resolution | 1024 x 768 |
| Native Contrast Ratio | 2,500:1 |
Physical Characteristics
| Weight (Approximate) | 3.50 kg |
| Height | 285 mm |
| Width | 359.1 mm |
| Depth | 46.2 mm |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
General Information
| Product Type | LCD Touchscreen Monitor |
| Manufacturer Part Number | VUE2150XA50PAN4 |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | VUE-2150 |
| Product Name | VUE-2150 15.0" Square Touch Panel Mount Monitor |
| Product Series | VUE-2000 |
| Brand Name | Advantech |
Interfaces/Ports
| USB | Yes |
| HDMI | Yes |
| VGA | Yes |
| Number of USB Ports | 1 |
| DisplayPort | Yes |
| Number of HDMI Inputs | 1 |
| Number of VGA Ports | 1 |
| Number of DisplayPorts | 1 |
| Total Number of HDMI Ports | 1 |
