23.8in FULL HD PANEL MOUNT MONITOR
23.8in FULL HD PANEL MOUNT MONITOR
Product Overview

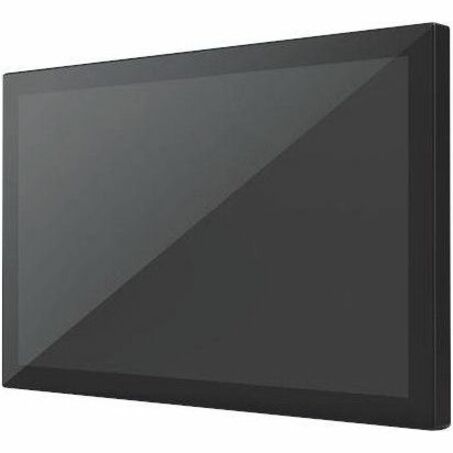

Advantech VUE-2238-FD35PA-N4 24" Class LCD Touchscreen Monitor - 16:9 - 15 ms - 23.8" Viewable - Projected Capacitive - 10 Point(s) Multi-touch Screen - 1920 x 1080 - Full HD - 350 cd/m² - Speakers - DVI - HDMI - USB - VGA - DisplayPort - 1 x HDMI In - 2 Year - USB Hub
23.8in Full HD Panel Mount Monitor with Touch (incl. Japan Korea Australia and Middle East Power Cord)- HDMI interface allows connectivity to a variety of HD devices including gaming consoles, laptop PCs, Blu-ray players, digital cameras and many others for the ultimate high-definition display
- Multi-touch activation can be performed with the Projective Capacitive touchscreen technology i.e. you can input from two fingers at a time.
- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
- The 350 cd/m² brightness gives an exceptionally visible display for clear and consistent on-screen pictures
Technical Specifications
Built-in Devices
| Built-in Devices | USB Hub |
Miscellaneous
| Package Contents |
|
Audio
| Speakers | Yes |
| Number of Speakers | 2.0 |
Power Description
| Frequency | 60 Hz |
| 50 Hz |
Touchscreen Information
| Touchscreen Type | Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 10 |
Technical Information
| Aspect Ratio | 16:9 |
| Response Time | 15 ms |
| Features | Power Switch |
| On-screen Display (OSD) | |
| Water Proof | |
| ComfortView | |
| Cable Management | |
| Anti-glare | |
| 6-axis Color Adjustment | |
| Mount Type | Wall Mountable |
| Stand Mountable | |
| Panel Mount | |
| Bracket-mountable | |
| Arm-mountable | |
| Viewable Screen Size | 23.8" |
| Screen Mode | Full HD |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Screen Size Class | 24" |
| Ingress Protection (IP) Rating | IP65 |
| Impact Protection (IK) Rating | IK08 |
Video
| Brightness | 350 cd/m² |
| Maximum Resolution | 1920 x 1080 |
| Native Contrast Ratio | 1,000:1 |
Physical Characteristics
| Weight (Approximate) | 6.20 kg |
| Height | 352.4 mm |
| Width | 584.4 mm |
| Depth | 55.1 mm |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
General Information
| Product Type | LCD Touchscreen Monitor |
| Manufacturer Part Number | VUE-2238-FD35PA-N4 |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | VUE-2238-FD35PA-N4 |
| Product Name | 23.8" Panel Mount Monitor |
| Product Series | VUE-2238 |
| Brand Name | Advantech |
Interfaces/Ports
| USB | Yes |
| HDMI | Yes |
| DVI | Yes |
| VGA | Yes |
| Number of USB Ports | 3 |
| DisplayPort | Yes |
| Number of HDMI Inputs | 1 |
| Number of USB 3.0 Ports | 2 |
| Number of VGA Ports | 1 |
| Number of DisplayPorts | 1 |
| Number of DVI Ports | 1 |
| Total Number of HDMI Ports | 1 |
| Number of USB Type-B Ports | 1 |
