31.5 FULL HD PANEL MOUNT PCAP TOUCH MONI
31.5 FULL HD PANEL MOUNT PCAP TOUCH MONI
Product Overview

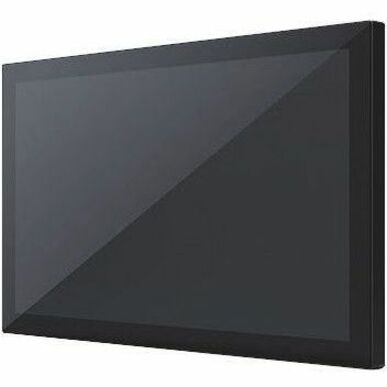

Advantech VUE-2320 32" Class LCD Touchscreen Monitor - 16:9 - 8 ms - 31.5" Viewable - Projected Capacitive - 10 Point(s) Multi-touch Screen - 1920 x 1080 - Full HD - 500 cd/m² - Speakers - DVI - HDMI - USB - VGA - DisplayPort - 1 x HDMI In - Black, Silver - 2 Year
VUE-2000 31.5 Full HD Panel Mount PCAP Touch Monitor- 31.5" active screen size Full-flat cover glass for extremely simple and elegant surface design
- Anti-glare (AG) treatment on screen for comfortable viewing experience
- Front IP65 and Side IPX1 dust and water-proof rating
- Support 10-point touch function (PCAP technology)
Technical Specifications
Audio
| Speakers | Yes |
Power Description
| Frequency | 50 Hz |
| 60 Hz |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Touchscreen Information
| Touchscreen Type | Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 10 |
Video
| Brightness | 500 cd/m² |
| Maximum Resolution | 1920 x 1080 |
| Native Contrast Ratio | 3,000:1 |
Technical Information
| Aspect Ratio | 16:9 |
| Response Time | 8 ms |
| Features | Water Proof |
| On-screen Display (OSD) | |
| Dust Resistant | |
| ComfortView | |
| Anti-glare | |
| Mount Type | Panel Mount |
| Viewable Screen Size | 31.5" |
| Screen Mode | Full HD |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Screen Size Class | 32" |
| Glass Hardness | 7H |
| Ingress Protection (IP) Rating | IPX1 |
| IP65 | |
| Impact Protection (IK) Rating | IK07 |
| Response Time Details | 8ms Typical |
General Information
| Product Type | LCD Touchscreen Monitor |
| Manufacturer Part Number | VUE2320FD50PXA0 |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | VUE-2320 |
| Product Name | VUE-2320 32" Touch Panel Mount Monitor |
| Product Series | VUE-2000 |
| Brand Name | Advantech |
Physical Characteristics
| Weight (Approximate) | 10.35 kg |
| Height | 434 mm |
| Width | 740 mm |
| Depth | 61 mm |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 200 x 200 |
| Product Color | Silver |
| Black | |
| Color Family | Dual Colour |
Interfaces/Ports
| USB | Yes |
| HDMI | Yes |
| DVI | Yes |
| VGA | Yes |
| Number of USB Ports | 1 |
| DisplayPort | Yes |
| Number of HDMI Inputs | 1 |
| Number of VGA Ports | 1 |
| Number of DisplayPorts | 1 |
| Number of DVI Ports | 1 |
| Total Number of HDMI Ports | 1 |
