27 FULL HD PCAP MONITOR
27 FULL HD PCAP MONITOR
Product Overview

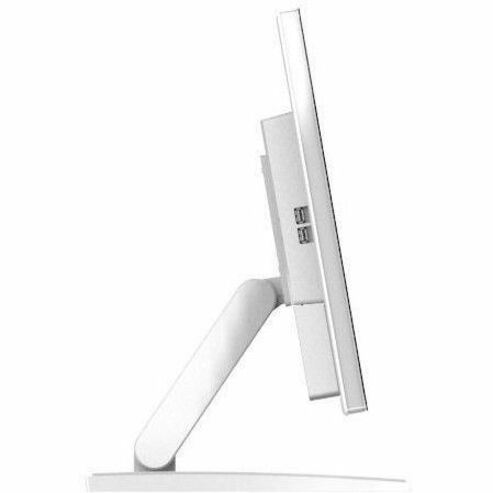

Advantech VUE-3270 27" Class LCD Touchscreen Monitor - 16:9 - 27" Viewable - Projected Capacitive - 10 Point(s) Multi-touch Screen - 1920 x 1080 - Full HD - 300 cd/m² - Speakers - DVI - HDMI - USB - VGA - DisplayPort - 1 x HDMI In - White Textured - China Environmental United Certification Center (CEC) - 2 Year - USB Hub
VUE-3000 Industrial Desktop 27 Full HD PCAP Monitor White- 27" active screen size
- 6-axis color adjustment (Green/Red/Blue/Cyan/Magenta/Yellow) for high level and more accuracy customized image
- Full-flat cover glass for extremely simple and elegant surface design
- Anti-glare (AG) treatment on screen for comfortable viewing experience and clean environment
- Front IP65 water-proof rating and IK08 high-level impact protection
- Adopts industrial-grade components for guaranteed performance
- Support 10-point touch function (PCAP technology)
- Excellent touch noise immunity well-suited for rugged applications (CS 10V)
- Compliant with many touch methods including fingers, glove, and stylus
- Built-in multiple I/O interfaces for diverse media connectivity
Technical Specifications
Built-in Devices
| Built-in Devices | USB Hub |
Audio
| Speakers | Yes |
| Number of Speakers | 2 |
Power Description
| Frequency | 50 Hz |
| 60 Hz |
Touchscreen Information
| Touchscreen Type | Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 10 |
Video
| Brightness | 300 cd/m² |
| Maximum Resolution | 1920 x 1080 |
| Native Contrast Ratio | 3,000:1 |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Certification | China Environmental United Certification Center (CEC) |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 5 (ErP Lot 5) |
Technical Information
| Aspect Ratio | 16:9 |
| Features | Anti-glare |
| 6-axis Color Adjustment | |
| ComfortView | |
| On-screen Display (OSD) | |
| Mount Type | Desk Mountable |
| Stand Mountable | |
| Wall Mountable | |
| Arm-mountable | |
| Viewable Screen Size | 27" |
| Screen Mode | Full HD |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Screen Size Class | 27" |
| Ingress Protection (IP) Rating | IP65 |
| Impact Protection (IK) Rating | IK08 |
General Information
| Product Type | LCD Touchscreen Monitor |
| Manufacturer Part Number | VUE3270FD30PAA3 |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | VUE-3270 |
| Product Name | VUE-3270 27" Touch Monitor |
| Product Series | VUE-3000 |
| Brand Name | Advantech |
Physical Characteristics
| Weight (Approximate) | 10 kg |
| Height | 409.4 mm |
| Width | 659.6 mm |
| Depth | 58 mm |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Height with Stand | 472.02 mm |
| Width with Stand | 659.60 mm |
| Depth with Stand | 64.03 mm |
| Product Color | White Textured |
Interfaces/Ports
| USB | Yes |
| HDMI | Yes |
| DVI | Yes |
| VGA | Yes |
| Number of USB Ports | 3 |
| DisplayPort | Yes |
| Number of HDMI Inputs | 1 |
| Number of USB 3.0 Ports | 2 |
| Number of VGA Ports | 1 |
| Number of DisplayPorts | 1 |
| Number of DVI Ports | 1 |
| Total Number of HDMI Ports | 1 |
| Number of USB Type-B Ports | 1 |
