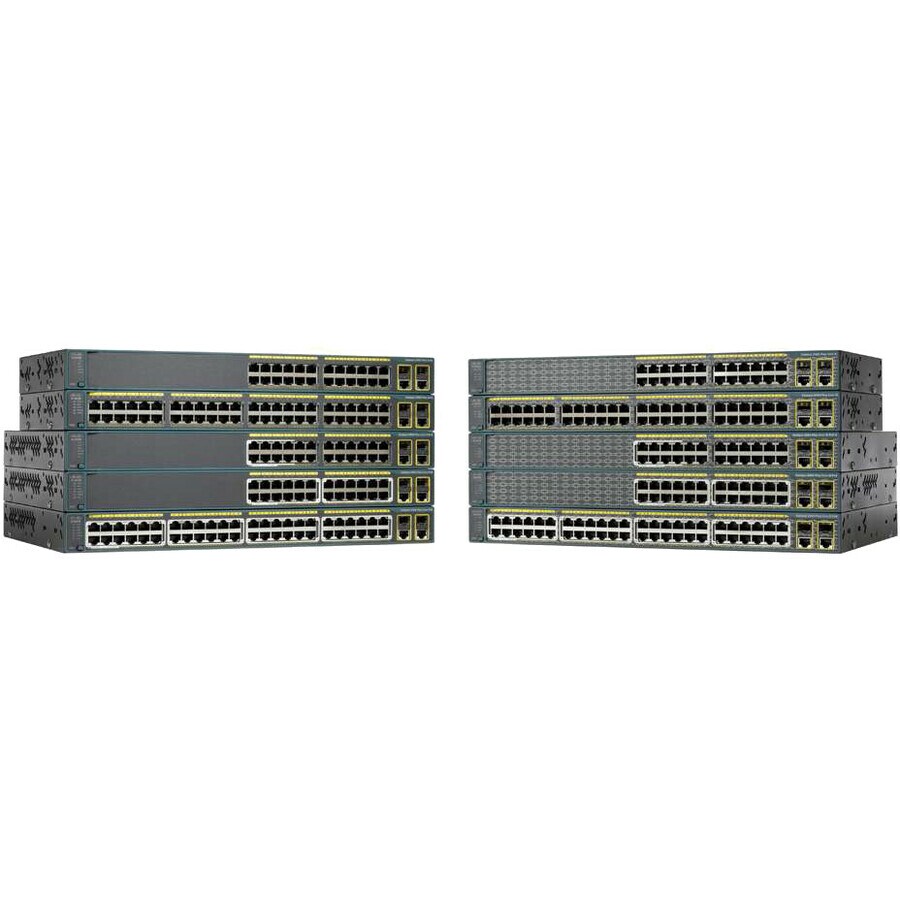

Catalyst 2960 Plus 24 10/100 (8 PoE) + 2
Catalyst 2960 Plus 24 10/100 (8 PoE) + 2
Product Overview
Catalyst 2960 Plus 24 10/100 (8 PoE) + 2 T/SFP LAN Base
Cisco EnergyWise
Cisco EnergyWise™ empowers IT teams to measure and manage the power consumed by devices connected to the network, providing measurable energy savings and reduced greenhouse gas emissions. EnergyWise policies can be used to control the power consumed by PoE-powered endpoints, desktop and data-center IT equipment, and a wide range of building infrastructure. EnergyWise technology is included on all Cisco Catalyst 2960-Plus Series Switches.
- Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- Rack mounting enables you to organize wires & secure cables for professional installation
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Cascade to other network devices through the uplink port to expand your local area network
- Electrical power is transmitted along with data in a single cable to devices such as Access Points, IP cameras or IP phones
- Quickly and easily set up a wired network with 24 networking ports
Technical Specifications
Network & Communication
| Layer Supported | 2 |
Reliability
| MTBF | 498000 Hour |
Management & Protocols
| Management |
|
| Manageable | Yes |
Miscellaneous
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
Memory
| Flash Memory | 64 MB |
| Standard Memory | 128 MB |
| Memory Technology | DRAM |
Power Description
| Power Source | Power Supply |
| PoE (RJ-45) Port | No |
| Redundant Power Supply Supported | Yes |
Interfaces/Ports
| Token Ring Port | No |
| LRE Port | No |
| Number of Network (RJ-45) Ports | 16 |
| Modular | No |
| Management Port | Yes |
| Uplink Port | Yes |
| Number of PoE (RJ-45) Ports | 8 |
| Stack Port | No |
| Bypass | No |
| Total Number of Network Ports | 24 |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Uplink |
| 24 x Fast Ethernet Network | |
| 2 x Gigabit Ethernet Expansion Slot |
I/O Expansions
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Shared SFP Slot | Yes |
| Total Number of Expansion Slots | 2.0 |
Media & Performance
| Network Technology | 10/100Base-TX |
| Twisted Pair Cable Standard | Category 5 |
| Ethernet Technology | Fast Ethernet |
| Media Type Supported | Twisted Pair |
Physical Characteristics
| Weight (Approximate) | 5.44 kg |
| Form Factor | Rack-mountable |
| Height | 43.9 mm |
| Width | 449.6 mm |
| Depth | 332 mm |
General Information
| Product Type | Ethernet Switch |
| Manufacturer Part Number | WS-C2960+24LC-L |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Model | 2960-Plus 24LC-L |
| Product Name | Catalyst 2960-Plus 24LC-L Ethernet Switch |
| Product Line | Catalyst |
| Product Series | 2960-Plus |
| Brand Name | Cisco |
Price Trend
Current Price
AUD 4,442.54
