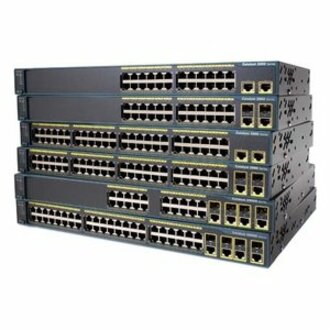

CATALYST 2960 PLUS 48 10 100 2 T SFP LAN

Additional Information

Dual-purpose uplink port has one 10/100/1000 Ethernet port and one Small Form-Factor Pluggable (SFP)-based Gigabit Ethernet port, with one port active at a time LAN Base Image installed Configurable up to 8000 MAC addresses Configurable up to 255 IGMP groups Superior Redundancy for Fault Backup Integrated Cisco IOS Software Features for Bandwidth Optimization Advanced QoS Granular Rate Limiting Networkwide Security Features

Layer Supported

2

Management

Cisco Network Assistant CiscoWorks Support Device manager Cisco Express Setup CiscoView application Cisco Network Assistant Software Remote Monitoring (RMON) Trivial File Transfer Protocol (TFTP) reduces the cost of administering software upgrades by downloading from a centralized location Network Timing Protocol (NTP) provides an accurate and consistent timestamp to all intranet switches Cisco IOS CLI support provides a common user interface and command set with all Cisco routers and Cisco Catalyst desktop switches Cisco Service Assurance Agent (SAA) support facilitates service-level management throughout the LAN Switching Database Manager templates for security and QoS allow administrators to easily adjust memory allocation to the desired features based on deployment-specific requirements VLAN trunks can be created from any port using standards-based 802.1q tagging Up to 255 VLANs per switch or stack and up to 128 spanning-tree instances per switch are supported. Four thousand VLAN IDs are supported Voice VLAN simplifies telephony installations by keeping voice traffic on a separate VLAN for easier administration and troubleshooting Cisco VTP supports dynamic VLANs and dynamic trunk configuration across all switches SNMP v1, v2c, and v3 and Telnet interface support delivers comprehensive in-band management, and a CLI-based management console provides detailed out-of-band management Cisco Discovery Protocol Versions 1 and 2 help enable a CiscoWorks network-management station for automatic switch discovery

Manageable

Yes

Power Source	Power Supply
Redundant Power Supply Supported	Yes

Expansion Slot Type	SFP
Number of SFP Slots	2
Total Number of Expansion Slots	2.0

Flash Memory	32 MB
Standard Memory	64 MB
Memory Technology	DRAM

Product Type	Ethernet Switch
Manufacturer Part Number	WS-C2960+48TC-L
Manufacturer Website Address	http://www.cisco.com/c/en_au
Manufacturer	Cisco Systems, Inc
Product Model	2960-48TC-L
Product Name	Catalyst 2960-48TC Ethernet Switch
Product Line	Catalyst
Product Series	2960
Brand Name	Cisco

Network Technology	10Base-T
10/100/1000Base-T
Twisted Pair Cable Standard	Category 5
Ethernet Technology	Fast Ethernet
Media Type Supported	Twisted Pair

Number of Network (RJ-45) Ports	48
Uplink Port	Yes
Total Number of Network Ports	48
Port/Expansion Slot Details	48 x Fast Ethernet Network
2 x Gigabit Ethernet Uplink
2 x Fast Ethernet Expansion Slot

Weight (Approximate)	3.63 kg
Form Factor	Rack-mountable
Desktop
Wall Mountable
Height	43.9 mm
Width	444.5 mm
Depth	236.2 mm
