Product Overview

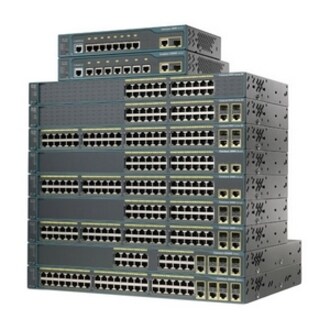

Catalyst 2960 Plus 48 10/100 + 2 T/SFP LAN Lite
Cisco Catalyst 2960-48TC Intelligent Ethernet Switch of fixed-configuration, standalone device that provide desktop Fast Ethernet and Gigabit Ethernet connectivity, enabling enhanced LAN services for entry-level enterprise, mid-market, and branch office networks. The Catalyst 2960-48TC offers integrated security, including network admission control (NAC), advanced quality of service (QoS), and resiliency to deliver intelligent services for the network edge.
- Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Cascade to other network devices through the uplink port to expand your local area network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 48 ports
Technical Specifications
Miscellaneous
| System Requirements |
|
Network & Communication
| Layer Supported | 2 |
Management & Protocols
| Management |
|
| Manageable | Yes |
Power Description
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
I/O Expansions
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Total Number of Expansion Slots | 2.0 |
General Information
| Product Type | Ethernet Switch |
| Manufacturer Part Number | WS-C2960+48TC-S |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Model | 2960-48TC |
| Product Name | Catalyst 2960-48TC Managed Ethernet Switch |
| Product Line | Catalyst |
| Product Series | 2960 |
| Brand Name | Cisco |
Memory
| Flash Memory | 32 MB |
| Standard Memory | 64 MB |
| Memory Technology | DRAM |
Physical Characteristics
| Weight (Approximate) | 3.63 kg |
| Height | 43.9 mm |
| Width | 444.5 mm |
| Depth | 236.2 mm |
Media & Performance
| Network Technology | 100/1000Base-T |
| 10Base-T | |
| Twisted Pair Cable Standard | Category 5 |
| Ethernet Technology | Fast Ethernet |
| Media Type Supported | Twisted Pair |
Interfaces/Ports
| Number of Network (RJ-45) Ports | 48 |
| Uplink Port | Yes |
| Total Number of Network Ports | 48 |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Uplink |
| 2 x Gigabit Ethernet Expansion Slot | |
| 48 x Fast Ethernet Network |
