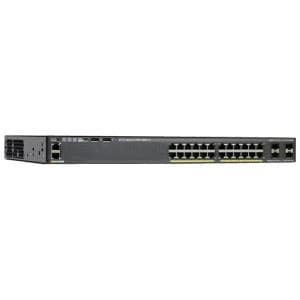

CATALYST 2960-X 24 GIGE 2 X 10G SFP

Product Overview
Specification

Product Overview

Catalyst 2960-X series Software Features

All Catalyst 2960-X Series Switches use a single Universal Cisco IOS Software Image for all SKUs. Depending on the switch model, the Cisco IOS image automatically configures either the LAN Lite, LAN Base, or IP Lite feature set.

LAN Lite models have reduced functionality and scalability for small deployments with basic requirements. Cisco Catalyst 2960-X Family of Switches are available with the LAN Base and LAN Lite feature sets and Catalyst 2960-XR Family of switches are available IP Lite feature sets.

Note that each switch model is tied to a specific feature level; LAN Lite cannot be upgraded to LAN Base and LAN Base cannot be upgraded to IP Lite.

Gigabit Ethernet port for ultra-fast network speeds
Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
The desktop installation makes it ideal for deployments outside the wiring closet
With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
Managed switch provides a reliable foundation for your network
Management capability provides control over setup and configuration of your network
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Built-in power supply to ensure all components are being supplied with accurate voltage
Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports

Technical Specifications

Network & Communication

Layer Supported

Reliability

MTBF	569520 Hour

Management & Protocols

Management	Web-based Management VLAN QoS Syslog Telnet SNMP v1, v2c, v3 DHCP RMON I, II CLI
Manageable	Yes

I/O Expansions

Expansion Slot Type	SFP+
Number of SFP+ Slots	2
Total Number of Expansion Slots	2.0

Memory

Flash Memory	128 MB
Standard Memory	512 MB
Memory Technology	DRAM

Power Description

Power Source	Power Supply
PoE (RJ-45) Port	No
Redundant Power Supply Supported	Yes

General Information

Product Type	Ethernet Switch
Manufacturer Part Number	WS-C2960X-24TD-L
Manufacturer Website Address	http://www.cisco.com/c/en_au
Manufacturer	Cisco Systems, Inc
Product Model	2960X-24TD-L
Product Name	Catalyst 2960X-24TD-L Ethernet Switch
Product Line	Catalyst
Product Series	2960-X
Brand Name	Cisco

Media & Performance

Network Technology	10/100/1000Base-T
Twisted Pair Cable Standard	Category 5
Ethernet Technology	10 Gigabit Ethernet
Gigabit Ethernet
Media Type Supported	Twisted Pair

Physical Characteristics

Weight (Approximate)	4.04 kg
Form Factor	Rack-mountable
Desktop
Height	44.5 mm
Width	444.5 mm
Depth	279.4 mm
Compatible Rack Unit	1U

Interfaces/Ports

Token Ring Port	No
LRE Port	No
USB	Yes
Number of Network (RJ-45) Ports	24
Modular	No
Management Port	Yes
Bypass	No
Total Number of Network Ports	24
Port/Expansion Slot Details	24 x Gigabit Ethernet Network
2 x 10 Gigabit Ethernet Expansion Slot
