Catalyst 2960-X 48 GigE PoE 370W 4 x 1G
Catalyst 2960-X 48 GigE PoE 370W 4 x 1G
Product Overview

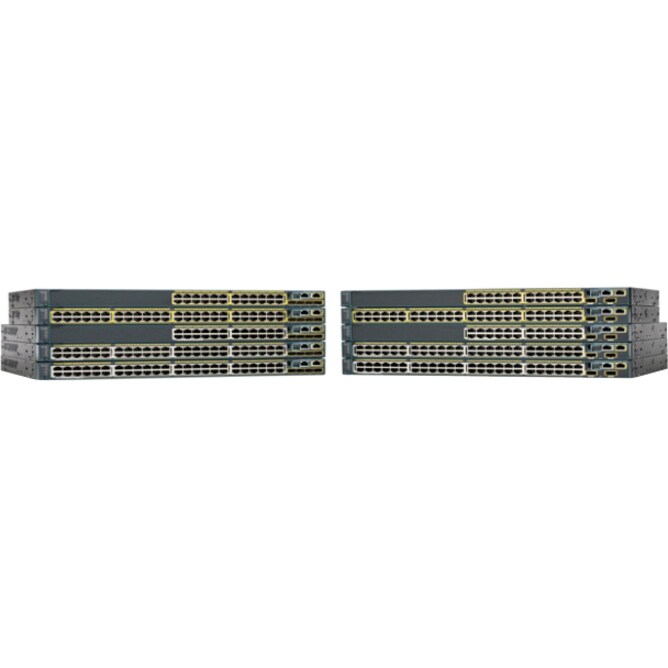

Catalyst 2960-X 48 GigE PoE 370W 4 x 1G
The Cisco Catalyst 2960-X Series provides a direct replacement for each Catalyst 2960-S Series Gigabit Ethernet model, at the same price. The Catalyst 2960-X provides better architecture, features, and performance than the 2960-S, doubling the feature set.
Customers for the Catalyst 2960-SF Fast Ethernet switches should also consider moving to the 2960-X switches, which provide the features of the Catalyst 2960-SF and more, including PoE Plus (PoE+), improved IPv6 performance, and optional StackWise stacking. The 2960-X PoE models have a premium of approximately 20 to 25 percent over the 2960-SF Series.
- Gigabit Ethernet port for ultra-fast network speeds
- Rack mounting enables you to organize wires & secure cables for professional installation
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Managed switch provides a reliable foundation for your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Electrical power is transmitted along with data in a single cable to devices such as Access Points, IP cameras or IP phones
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 48 ports
Technical Specifications
| Layer Supported | 2 |
| MTBF | 276870 Hour |
| Management |
|
| Manageable | Yes |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 4 |
| Total Number of Expansion Slots | 4.0 |
| Flash Memory | 128 MB |
| Standard Memory | 512 MB |
| Memory Technology | DRAM |
| Power Source | Power Supply |
| PoE (RJ-45) Port | Yes |
| Redundant Power Supply Supported | Yes |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | WS-C2960X-48LPS-L |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Packaged Quantity | 1 |
| Manufacturer | Cisco Systems, Inc |
| Product Model | 2960X-48LPS-L |
| Product Name | Catalyst 2960X-48LPS-L Ethernet Switch |
| Product Line | Catalyst |
| Product Series | 2960-X |
| Brand Name | Cisco |
| Network Technology | 10/100/1000Base-T |
| Twisted Pair Cable Standard | Category 5 |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Twisted Pair |
| Weight (Approximate) | 5.85 kg |
| Form Factor | Rack-mountable |
| Height | 44.5 mm |
| Width | 368.3 mm |
| Depth | 444.5 mm |
| Token Ring Port | No |
| LRE Port | No |
| USB | Yes |
| Modular | Yes |
| Management Port | Yes |
| Number of PoE (RJ-45) Ports | 48 |
| Bypass | No |
| Total Number of Network Ports | 48 |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Expansion Slot |
| 48 x Gigabit Ethernet Network |
