CAT2960-XR 24 GIGE 2X 10G SFP+ IP LITE
CAT2960-XR 24 GIGE 2X 10G SFP+ IP LITE
Product Overview

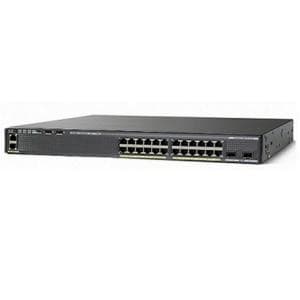

Cisco Catalyst 2960-XR 2960XR-24TD-I 24 Ports Manageable Ethernet Switch - 10/100/1000Base-T - 3 Layer Supported - Rack-mountable
Catalyst 2960-X series Software Features
All Catalyst 2960-X Series Switches use a single Universal Cisco IOS Software Image for all SKUs. Depending on the switch model, the Cisco IOS image automatically configures either the LAN Lite, LAN Base, or IP Lite feature set.
LAN Lite models have reduced functionality and scalability for small deployments with basic requirements. Cisco Catalyst 2960-X Family of Switches are available with the LAN Base and LAN Lite feature sets and Catalyst 2960-XR Family of switches are available IP Lite feature sets.
Note that each switch model is tied to a specific feature level; LAN Lite cannot be upgraded to LAN Base and LAN Base cannot be upgraded to IP Lite.
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports
Technical Specifications
| Layer Supported | 3 |
| MTBF | 561890 Hour |
| Management |
|
| Manageable | Yes |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Total Number of Expansion Slots | 2.0 |
| Flash Memory | 128 MB |
| Standard Memory | 512 MB |
| Memory Technology | DRAM |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | WS-C2960XR-24TD-I |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Model | 2960XR-24TD-I |
| Product Name | Catalyst 2960XR-24TD-I Ethernet Switch |
| Product Line | Catalyst |
| Product Series | 2960-XR |
| Brand Name | Cisco |
| Network Technology | 10/100/1000Base-T |
| Twisted Pair Cable Standard | Category 5 |
| Ethernet Technology | 10 Gigabit Ethernet |
| Gigabit Ethernet | |
| Media Type Supported | Twisted Pair |
| Weight (Approximate) | 5.90 kg |
| Form Factor | Rack-mountable |
| Height | 44.5 mm |
| Width | 444.5 mm |
| Depth | 406.4 mm |
| Token Ring Port | No |
| LRE Port | No |
| USB | Yes |
| Number of Network (RJ-45) Ports | 24 |
| Modular | No |
| Management Port | Yes |
| Bypass | No |
| Total Number of Network Ports | 24 |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network |
| 2 x 10 Gigabit Ethernet Expansion Slot |
