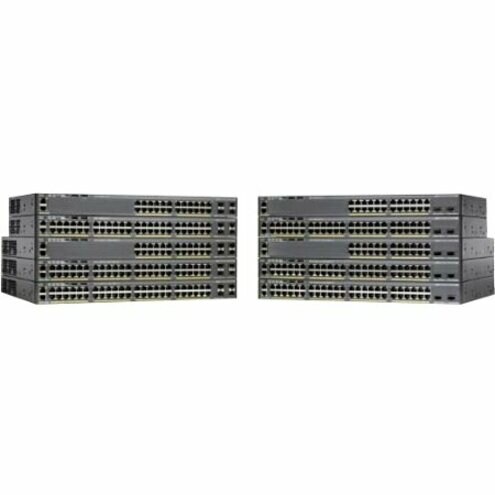

Catalyst 2960-XR 48 GigE PoE 740W 2x10G
Catalyst 2960-XR 48 GigE PoE 740W 2x10G
Product Overview
Catalyst 2960-XR 48 GigE PoE 740W 2 x 10G SFP+ IP Lite
Catalyst 2960-X series Software Features
All Catalyst 2960-X Series Switches use a single Universal Cisco IOS Software Image for all SKUs. Depending on the switch model, the Cisco IOS image automatically configures either the LAN Lite, LAN Base, or IP Lite feature set.
LAN Lite models have reduced functionality and scalability for small deployments with basic requirements. Cisco Catalyst 2960-X Family of Switches are available with the LAN Base and LAN Lite feature sets and Catalyst 2960-XR Family of switches are available IP Lite feature sets.
Note that each switch model is tied to a specific feature level; LAN Lite cannot be upgraded to LAN Base and LAN Base cannot be upgraded to IP Lite.
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Electrical power is transmitted along with data in a single cable to devices such as Access Points, IP cameras or IP phones
- With PoE+ Port, transfer data and up to 25.5 W of power on a single cable to places where a power outlet is not present
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 48 ports
Technical Specifications
| System Requirements |
|
| Layer Supported | 3 |
| MTBF | 231590 Hour |
| Management |
|
| Manageable | Yes |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Total Number of Expansion Slots | 2.0 |
| Flash Memory | 128 MB |
| Standard Memory | 512 MB |
| Memory Technology | DRAM |
| Token Ring Port | No |
| LRE Port | No |
| USB | Yes |
| Modular | No |
| Management Port | Yes |
| Number of PoE (RJ-45) Ports | 24 |
| Number of PoE+ (RJ-45) Ports | 24 |
| Bypass | No |
| Total Number of Network Ports | 48 |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet Network |
| 2 x 10 Gigabit Ethernet Expansion Slot |
| Power Source | Power Supply |
| PoE (RJ-45) Port | Yes |
| Redundant Power Supply Supported | Yes |
| Network Technology | 10/100/1000Base-T |
| Twisted Pair Cable Standard | Category 5 |
| Ethernet Technology | 10 Gigabit Ethernet |
| Gigabit Ethernet | |
| Media Type Supported | Twisted Pair |
| Weight (Approximate) | 6.62 kg |
| Form Factor | Rack-mountable |
| Height | 44.5 mm |
| Width | 444.5 mm |
| Depth | 406.4 mm |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | WS-C2960XR-48FPD-I |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Model | 2960XR-48FPD-I |
| Product Name | Catalyst 2960XR-48FPD-I Ethernet Switch |
| Product Line | Catalyst |
| Product Series | 2960-XR |
| Brand Name | Cisco |
