CISCO CATALYST 3560-CX 12 PORT POE 10G
CISCO CATALYST 3560-CX 12 PORT POE 10G
Product Overview

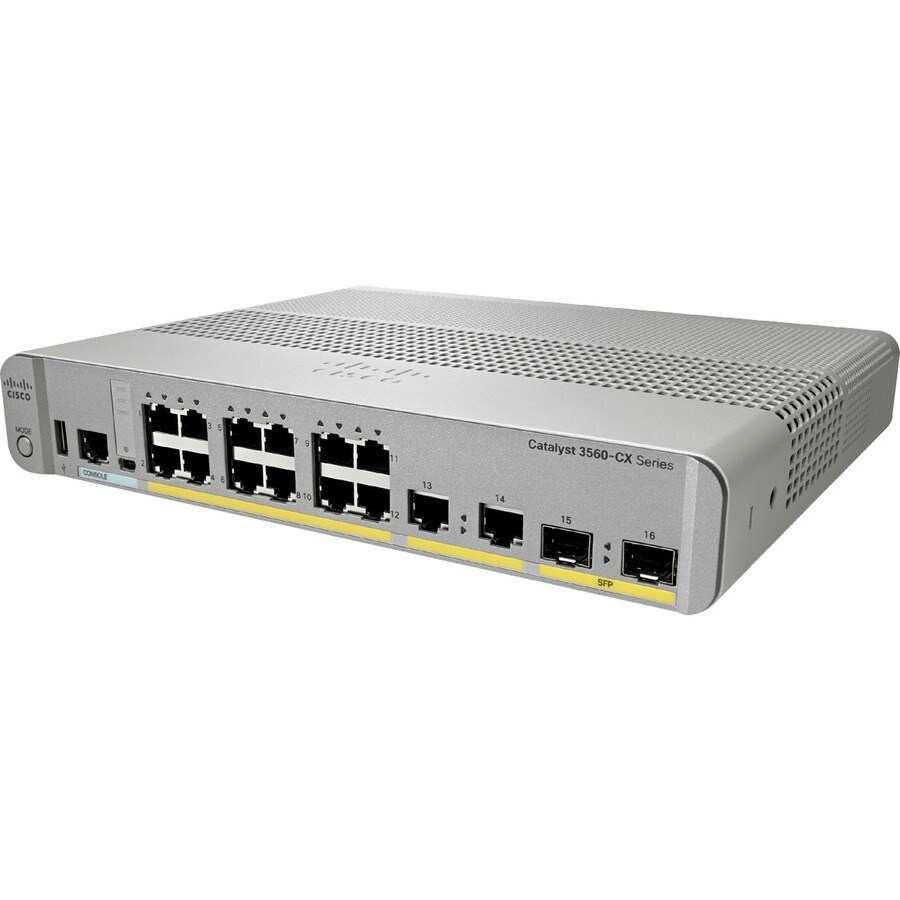

CISCO CATALYST 3560-CX 12 PORT POE 10G
The Cisco Catalyst 3560-CX and 2960-CX Series Compact Switches help optimize network deployments. These Gigabit Ethernet (GbE) managed switches are ideal for high-speed data connectivity, Wi-Fi backhaul, and Power over Ethernet (PoE) connectivity in places where space is at a premium. With a single copper or fiber cable from the wiring closet, Catalyst compact switches enable IP connectivity for devices such as IP phones, wireless access points, surveillance cameras, PCs, and video endpoints.
With their quiet, fan-less design and compact footprint, these switches offer flexible mounting options and open up a variety of network design and connectivity options. Use them in offices, classrooms, hotels, retail stores, and other enterprise and branch locations. The setup allows for shorter cable runs from the compact switches, allowing for flexibility in space redesign and growth as new devices join the network - this eliminating the need for expensive and inflexible cabling infrastructure.
- Gigabit Ethernet port for ultra-fast network speeds
- The desktop installation makes it ideal for deployments outside the wiring closet
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Cascade to other network devices through the uplink port to expand your local area network
- With PoE+ Port, transfer data and up to 25.5 W of power on a single cable to places where a power outlet is not present
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 12 ports
- Quickly and easily set up a wired network with 12 networking ports
Technical Specifications
| Layer Supported | 3 |
| MTBF | 528480 Hour |
| Management |
|
| Manageable | Yes |
| Power Source | Power Supply |
| PoE (RJ-45) Port | Yes |
| Flash Memory | 128 MB |
| Standard Memory | 512 MB |
| Memory Technology | DRAM |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Shared SFP Slot | No |
| Total Number of Expansion Slots | 2.0 |
| Token Ring Port | No |
| LRE Port | No |
| USB | No |
| Number of Network (RJ-45) Ports | 2 |
| Modular | No |
| Management Port | No |
| Uplink Port | Yes |
| Number of PoE+ (RJ-45) Ports | 12 |
| Stack Port | No |
| Bypass | No |
| Total Number of Network Ports | 12 |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Expansion Slot |
| 2 x Gigabit Ethernet Uplink | |
| 12 x Gigabit Ethernet Network |
| Network Technology | 10/100/1000Base-T |
| 1000Base-X | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Optical Fiber |
| Weight (Approximate) | 2.31 kg |
| Form Factor | Desktop |
| Rail-mountable | |
| Rack-mountable | |
| Height | 44.5 mm |
| Width | 269.2 mm |
| Depth | 238.8 mm |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | WS-C3560CX-12PD-S |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Model | 3560CX-12PD-S |
| Product Name | 3560CX-12PD-S Layer 3 Switch |
| Product Line | Catalyst |
| Product Series | 3560-CX |
| Brand Name | Cisco |
