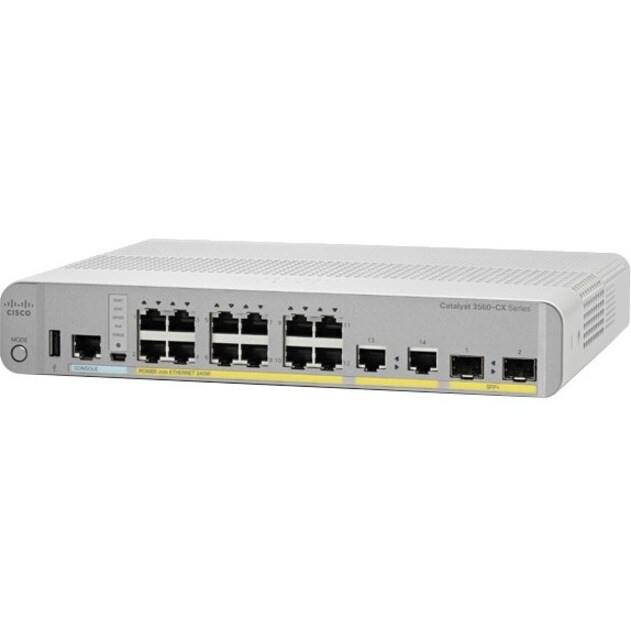

Cisco Catalyst 3560-CX PD PSE 8 Port PoE
Cisco Catalyst 3560-CX PD PSE 8 Port PoE
Product Overview
Cisco Catalyst 3560-CX PD PSE 8 Port PoE
The Cisco® Catalyst® Compact Switches easily expand your Ethernet and Multigigabit Ethernet Cisco Catalyst switching infrastructure outside the wiring closet to enable new workspaces, extend wireless LANs, and connect PoE devices. These fanless, small form-factor switches are ideal for space-constrained deployments where multiple cable runs would be challenging. With speeds that reach 10Gbps, the Cisco Catalyst 3560CX Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Rail mounting is ideal for factory areas, in vehicles and marine applications
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Cascade to other network devices through the uplink port to expand your local area network
- Quickly and easily set up a wired network with 10 networking ports
Technical Specifications
Management & Protocols
| Manageable | Yes |
Miscellaneous
| Environmentally Friendly | Yes |
Power Description
| Power Source | Power Supply |
| Redundant Power Supply Supported | No |
Media & Performance
| Network Technology | 10/100/1000Base-TX |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
General Information
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | WS-C3560CX-8PT-S |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Model | 3560CX-8PT-S |
| Product Name | Catalyst 3560CX-8PT-S Switch |
| Product Line | Catalyst |
| Product Series | 3560-CX |
| Brand Name | Cisco |
Interfaces/Ports
| Modular | No |
| Uplink Port | Yes |
| Stack Port | No |
| Total Number of Network Ports | 10 |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Uplink |
| 8 x Gigabit Ethernet Network |
Physical Characteristics
| Weight (Approximate) | 1.59 kg |
| Form Factor | Rail-mountable |
| Rack-mountable | |
| Height | 44.5 mm |
| Width | 269.2 mm |
| Depth | 177.8 mm |
