Product Overview

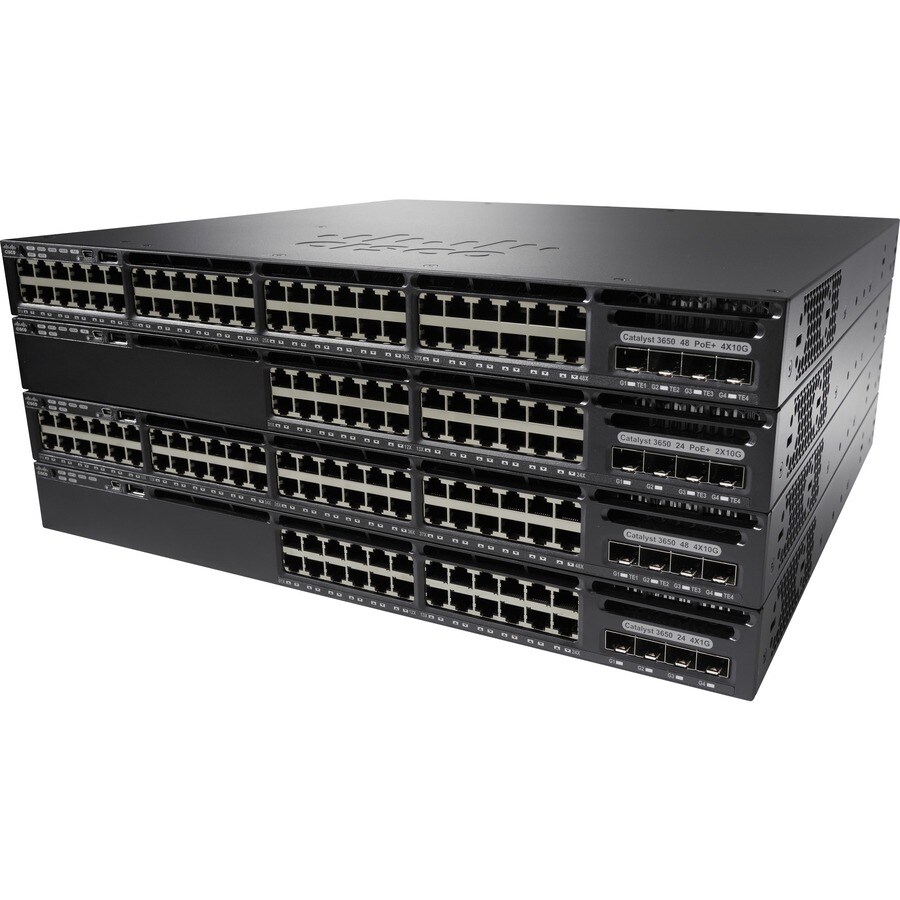

CISCO CATALYST 3650 24 PORT MINI 2X1G 2X10G UPLINK IP SERV
The Cisco® Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), and offer modular and field-replaceable redundant fans and power supplies. The Cisco Catalyst 3650 Series Switches also come in a 12-inch lower depth form factor so that you can deploy them in tight wiring closets in remote branches and offices where depth of the switch is a concern. They can help you increase wireless productivity and reduce your TCO.- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Rack mounting enables you to organize wires & secure cables for professional installation
- Useful for the multi-tenant unit and multi-business unit with Layer 4 traffic classifiers and bandwidth limit
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Cascade to other network devices through the uplink port to expand your local area network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports
- Quickly and easily set up a wired network with 24 networking ports
Technical Specifications
Management & Protocols
| Manageable | Yes |
Network & Communication
| Layer Supported | 4 |
Power Description
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
I/O Expansions
| Expansion Slot Type | SFP+ |
| Number of SFP Slots | 2 |
| Shared SFP Slot | No |
| Total Number of Expansion Slots | 2.0 |
Interfaces/Ports
| Modular | Yes |
| Uplink Port | Yes |
| Stack Port | No |
| Total Number of Network Ports | 24 |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet |
| 2 x 10 Gigabit Ethernet Expansion Slot |
Media & Performance
| Network Technology | 10GBase-X |
| 1000Base-T | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Twisted Pair |
Physical Characteristics
| Weight (Approximate) | 7.26 kg |
| Form Factor | Standalone |
| Rack-mountable | |
| Height | 43.9 mm |
| Width | 444.5 mm |
| Depth | 447.7 mm |
| Compatible Rack Unit | 1U |
General Information
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | WS-C3650-24PDM-E |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Model | 3650-24PDM-E |
| Product Name | Catalyst 3650-24PDM-E Switch |
| Product Line | Catalyst |
| Product Series | 3650 |
| Brand Name | Cisco |
Price Trend
Current Price
AUD 33,105.45
