Cat 3650 24Port Data 4x1G Uplink LANBase
Cat 3650 24Port Data 4x1G Uplink LANBase
Product Overview

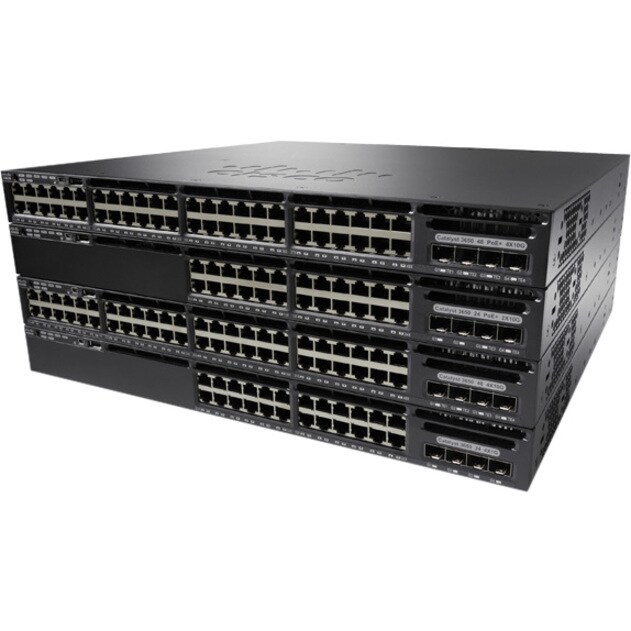

Cisco Catalyst 3650 24 Port Data 4x1G Uplink LAN Base
The Cisco Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco® Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), and offer modular and field-replaceable redundant fans and power supplies. They can help you increase wireless productivity and reduce your TCO.
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Rack mounting enables you to organize wires & secure cables for professional installation
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Managed switch provides a reliable foundation for your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Stack port provides an easy and hassle-free way to extend your office network
- Cascade to other network devices through the uplink port to expand your local area network
- Quickly and easily set up a wired network with 24 networking ports
Technical Specifications
| Layer Supported | 2 |
| MTBF | 661800 Hour |
| Management |
|
| Manageable | Yes |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 4 |
| Total Number of Expansion Slots | 4.0 |
| Flash Memory | 2 GB |
| Standard Memory | 4 GB |
| Memory Technology | DRAM |
| Package Contents |
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Token Ring Port | No |
| LRE Port | No |
| Number of Network (RJ-45) Ports | 24 |
| Modular | No |
| Management Port | Yes |
| Uplink Port | Yes |
| Stack Port | Yes |
| Bypass | No |
| Total Number of Network Ports | 24 |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Uplink |
| 24 x Gigabit Ethernet Network |
| Power Source | Power Supply |
| PoE (RJ-45) Port | No |
| Redundant Power Supply Supported | Yes |
| Network Technology | 10/100/1000Base-T |
| Twisted Pair Cable Standard | Category 5e |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Weight (Approximate) | 6.87 kg |
| Form Factor | Rack-mountable |
| Desktop | |
| Height | 43.9 mm |
| Width | 444.5 mm |
| Depth | 447.7 mm |
| Compatible Rack Unit | 1U |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | WS-C3650-24TS-L |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Model | 3650-24T |
| Product Name | Catalyst 3650-24T Ethernet Switch |
| Product Line | Catalyst |
| Product Series | 3650 |
| Brand Name | Cisco |
