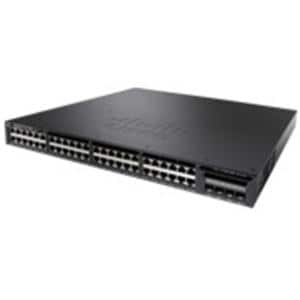

Catalyst 3650 48P PoE 2x10G UPL IP Base
Catalyst 3650 48P PoE 2x10G UPL IP Base
Product Overview
Catalyst 3650 48 Port Full PoE 2x10G UPL IP Base
The Cisco Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco® Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), and offer modular and field-replaceable redundant fans and power supplies. They can help you increase wireless productivity and reduce your TCO.
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Rack mounting enables you to organize wires & secure cables for professional installation
- Useful for the multi-tenant unit and multi-business unit with Layer 4 traffic classifiers and bandwidth limit
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Stack port provides an easy and hassle-free way to extend your office network
- Cascade to other network devices through the uplink port to expand your local area network
- With PoE+ Port, transfer data and up to 25.5 W of power on a single cable to places where a power outlet is not present
- Quickly and easily set up a wired network with 48 networking ports
Technical Specifications
| Layer Supported | 4 |
| MTBF | 383760 Hour |
| Management |
|
| Manageable | Yes |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Total Number of Expansion Slots | 2.0 |
| Flash Memory | 2 GB |
| Standard Memory | 4 GB |
| Memory Technology | DRAM |
| Power Source | Power Supply |
| PoE (RJ-45) Port | No |
| Redundant Power Supply Supported | Yes |
| Token Ring Port | No |
| LRE Port | No |
| Modular | No |
| Management Port | Yes |
| Uplink Port | Yes |
| Number of PoE+ (RJ-45) Ports | 48 |
| Stack Port | Yes |
| Bypass | No |
| Total Number of Network Ports | 48 |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet Network |
| 2 x 10 Gigabit Ethernet Uplink |
| Network Technology | 10/100/1000Base-T |
| Twisted Pair Cable Standard | Category 5e |
| Ethernet Technology | 10 Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Package Contents |
|
| Certifications & Standards |
|
| System Requirements |
Web Browsers: |
| Environmentally Friendly | Yes |
| Weight (Approximate) | 7.80 kg |
| Form Factor | Desktop |
| Rack-mountable | |
| Height | 43.9 mm |
| Width | 444.5 mm |
| Depth | 485.8 mm |
| Compatible Rack Unit | 1U |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | WS-C3650-48FD-S |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Model | 3650-48F |
| Product Name | Catalyst 3650-48F Layer 3 Switch |
| Product Line | Catalyst |
| Product Series | 3650 |
| Brand Name | Cisco |
