Product Overview

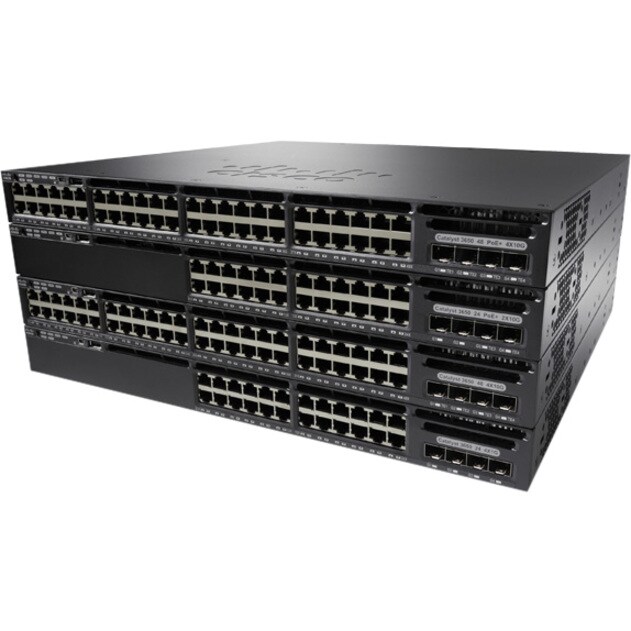

Catalyst 3650 48 Port Data 4x10G UPL IP Services
The Cisco Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco® Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), and offer modular and field-replaceable redundant fans and power supplies. They can help you increase wireless productivity and reduce your TCO.
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Rack mounting enables you to organize wires & secure cables for professional installation
- Useful for the multi-tenant unit and multi-business unit with Layer 4 traffic classifiers and bandwidth limit
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Stack port provides an easy and hassle-free way to extend your office network
- Cascade to other network devices through the uplink port to expand your local area network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 48 ports
Technical Specifications
| Layer Supported | 4 |
| MTBF | 527580 Hour |
| Management |
|
| Manageable | Yes |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Total Number of Expansion Slots | 4.0 |
| Flash Memory | 2 GB |
| Standard Memory | 4 GB |
| Memory Technology | DRAM |
| Package Contents |
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Token Ring Port | No |
| LRE Port | No |
| Number of Network (RJ-45) Ports | 48 |
| Modular | No |
| Management Port | Yes |
| Uplink Port | Yes |
| Stack Port | Yes |
| Bypass | No |
| Total Number of Network Ports | 48 |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet Network |
| 4 x 10 Gigabit Ethernet Uplink |
| Power Source | Power Supply |
| PoE (RJ-45) Port | No |
| Redundant Power Supply Supported | Yes |
| Network Technology | 10/100/1000Base-T |
| Twisted Pair Cable Standard | Category 5e |
| Ethernet Technology | 10 Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Weight (Approximate) | 7.21 kg |
| Form Factor | Desktop |
| Rack-mountable | |
| Height | 43.9 mm |
| Width | 444.5 mm |
| Depth | 485.8 mm |
| Compatible Rack Unit | 1U |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | WS-C3650-48TQ-E |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Model | 3650-48T |
| Product Name | Catalyst 3650-48T Layer 3 Switch |
| Product Line | Catalyst |
| Product Series | 3650 |
| Brand Name | Cisco |
