Product Overview
QSFP 40G ETHERNET - LR4 LITE. LC. 2KM

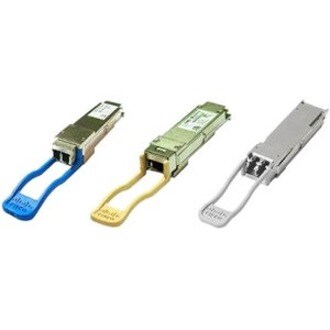

The Cisco WSP-Q40GLR4L QSFP Module supports link lengths of up to 2 km over a standard pair of G.652 single-mode fiber (SMF) with duplex LC connectors. The 40 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device. It is interoperable with 40GBase-LR4 for distances up to 2km. The operating temperature range is from +10 to +60°C with an optical link budget of 4dB. This 4dB link budget offers the ability to support the loss from patch panels in the link in a data center environment.
- 40Gigabit Ethernet - Designed to provide high-performance Ethernet connection while minimizing power and CPU cycles' utilization
- With a single wavelength of light, the single mode fibre optic can carry data and transmit audio/video applications over miles of distance
- Optical fibre cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
Technical Specifications
| Total Number of Ports | 1 |
| Compatibility | MSA Compliant |
| Product Type | QSFP |
| Manufacturer Part Number | WSP-Q40GLR4L= |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Model | WSP-Q40GLR4L |
| Product Name | 40GBase-LR4L QSFP Module for SMF |
| Brand Name | Cisco |
| Application/Usage | Optical Network |
| Data Networking |
| Height | 13.5 mm |
| Width | 18.4 mm |
| Depth | 72.4 mm |
| Network Technology | 40GBase-LR4 |
| Maximum Data Transfer Rate | 40 |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
