INTEL ETHERNET X520-QDA1 SVR
INTEL ETHERNET X520-QDA1 SVR
Product Overview

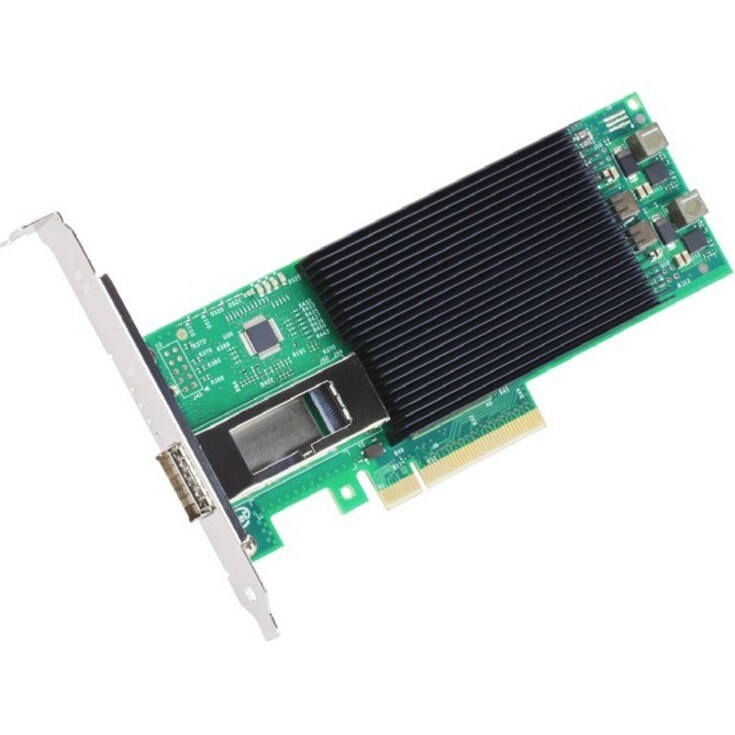

Intel X520 X520-QDA1 40Gigabit Ethernet Card for Server - 40GBase-X - Plug-in Card - PCI Express x8 - Twinaxial
The best-selling Intel X520 dual-port (2x10GbE) adapter is known for its high performance, low latency, reliability, and flexibility. The addition of a new low profile QSFP+ 4x10GbE adapter to the X520 family delivers all of the capabilities in a 4x10GbE adapter. The Intel® Ethernet Converged Network Adapter X520- QDA1 adapter delivers a proven, reliable solution for deployments of high density Ethernet for unified 10GbE network connections. The new single-port QSFP+ adapter delivers 4 channels of line-rate 10Gb Ethernet in a single PCIe slot using the latest PCI Express* (PCIe*) v3.0 bus technology for maximum bandwidth that addresses the increasing capability of the latest Intel® Xeon® processor E5/E7 based platforms.- Enjoy superfast data transfer of up to 4000 MB/s with PCI Express x8 card, between the network card and motherboards
- Supports twin axial cables for places where distance coverage of up to 10 meters with high-speed data transfer rate is required
- With the 40GBase-X technology get up to 40Gbps data transfer rate over the supported network cable
- 40Gigabit Ethernet card has an impressive performance that enables an affordable solution for trouble-free networking, clustering, or storage
Technical Specifications
Media & Performance
| Media Type Supported | Twinaxial |
Miscellaneous
| Platform Supported | PC |
Network & Communication
| Network Technology | 40GBase-X |
General Information
| Product Type | 40Gigabit Ethernet Card |
| Manufacturer Part Number | X520QDA1 |
| Manufacturer Website Address | http://www.intel.com.au |
| Manufacturer | Intel Corporation |
| Product Model | X520-QDA1 |
| Product Name | Ethernet Converged Network Adapter X520-QDA1 |
| Product Series | X520 |
| Brand Name | Intel |
I/O Expansions
| Expansion Slot Type | QSFP+ |
| Total Number of Expansion Slots | 1 |
Physical Characteristics
| Form Factor | Plug-in Card |
| Width | 68.7 mm |
| Depth | 169.3 mm |
Interfaces/Ports
| USB | No |
| Network (RJ-45) | No |
| Serial Port | No |
| Ethernet AUI | No |
| XJACK | No |
| PoE (RJ-45) Port | No |
