Product Overview
ZBOX CI331 nano - 120GB SSD - 16GB RAM - No Operating System
The ZBOX CI331 nano features a power-efficient and next-generation Intel processor to give you a silent experience in a compact PC. A robust passive cooled design with no moving components brings high reliability and extended durability. The signature honeycomb vents throughout the chassis enhances exhaust flow, backed by a large aluminum heatsink that maximizes heat transfer from the CPU to keep the system operating with performance. A VESA mount is included for nimble placement almost anywhere. The ZBOX CI331 nano is the ideal compact PC for home theater, digital signage, light productivity, everyday tasks, and more.- Passively cooled for silent performance
- Intel® Celeron® N5100 processor
- Up to 16GB DDR4 SO-DIMM memory support
- Windows 11 Ready
- 4K@60 Hz ready with HDMI 2.0b, DisplayPort 1.2 and VGA
- 2 x USB 3.1 ports, 2 x USB 3.0 ports (1 Type-C), 1 x USB 2.0 port
- Dual Gigabit Ethernet, Wi-Fi 5 and Bluetooth 5
- VESA Mount Ready
- Palm-sized, 0.9L chassis
Technical Specifications
Built-in Devices
| Microphone | No |
Chipset
| Chipset Manufacturer | Intel |
I/O Expansions
| "Number of Internal 2.5"" Bays" | 1 |
Power Description
| Maximum Power Supply Wattage | 180 W |
Warranty
| Limited Warranty Duration | 2 Year |
Operating System
| Operating System | Windows 10 IoT Enterprise 2019 LTSC |
| Operating System Platform | Windows |
Miscellaneous
| Features | Security Slot |
| Drivers Included | Yes |
| VESA Mount Included | Yes |
Display & Graphics
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | UHD Graphics |
| Graphics Memory Accessibility | Shared |
| Number of Graphic Controllers | 1 |

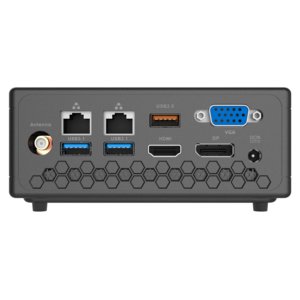

Interfaces/Ports
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 1 |
| Number of HDMI Outputs | 1 |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Thunderbolt | No |
| Number of DisplayPorts | 1 |
| Number Of Ethernet Ports | 2 |
| Number of USB 3.1 Ports | 1 |
| USB Type-C | Yes |
| Number of HDMI Outputs (Rear) | 1 |
| HDMI (Rear) | Yes |
| Number of USB 3.0 Ports (Front) | 2 |
| Number of USB 3.1 Ports (Rear) | 2 |
| USB Type-C (Front) | Yes |
| USB Type-C (Rear) | No |
| Network (RJ-45) (Rear) | Yes |
| Audio Line In (Front) | Yes |
| Audio Line In (Rear) | No |
| Audio Line Out (Front) | Yes |
| Audio Line Out (Rear) | No |
| Number of DisplayPort Outputs (Rear) | 1 |
| DisplayPort (Rear) | Yes |
| Mini DisplayPort (Rear) | Yes |
| Number of USB 3.1 Gen 1 Type-C Ports | 1 |
Network & Communication
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac |
| Bluetooth Standard | Bluetooth 5.0 |
Storage
| Solid State Drive Interface | Serial ATA/600 |
| Total Solid State Drive Capacity | 120 GB |
| Number of Solid State Drives | 1 |
| SSD Form Factor | 2.5" |
Physical Characteristics
| Form Factor | Nano |
| Height | 56.8 mm |
| Width | 127.8 mm |
| Depth | 126.8 mm |
| VESA Mount Standard | 75 x 75 |
| Product Color | Black |
General Information
| Product Type | Desktop Computer |
| Manufacturer Part Number | ZBOX-CI331NANO |
| Manufacturer Website Address | https://www.zotac.com/ |
| Manufacturer | ZOTAC International |
| Product Model | CI331 |
| Product Name | ZBOX CI331 nano |
| Product Line | ZBOX nano |
| Brand Name | ZOTAC |
Memory
| Maximum Memory Supported | 16 GB |
| Standard Memory | 16 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Card Supported | microSD,microSDHC,microSDXC |
| Memory Card Reader | Yes |
| Memory Form Factor | SoDIMM |
| Intel Optane Memory Ready | No |
| Memory Card Reader (Front) | Yes |
Processor
| Cache | 4 MB |
| Processor Speed | 1.1 GHz |
| Processor Type | Celeron |
| Processor Model | N5100 |
| Processor Core | Quad-core (4 Core) |
| 64-bit Processing | Yes |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Hyper-Threading | No |
| Maximum Turbo Speed | 2.8 GHz |
| Processor Generation | 7th Gen |
