Product Overview

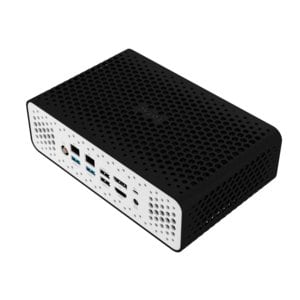

ZBOX CI625 nano - 120GB SSD - 8GB RAM - Windows 10 Pro
An award-winning honeycomb design complete with an entirely fanless operation, the ZBOX C Series nano packs more powerful and more capable hardware with the latest 11th Gen Intel® Core™ processor. The ZBOX CI625 nano pushes performance beyond the compact body with support for fast 3200 MHz DDR4 memory, M.2 PCIe x4 SSD, Thunderbolt 4, USB 3.1 supporting up to 10Gbps super-speed data transfers, HDMI 2.0, and DisplayPort 1.4 for up to 4K resolution at 60 Hz. Its diminutive size allows nimble placement in space limited environments, making it an ideal home theater PC, digital signage, home office, office work space, and more.- 32nd Gen Intel Core i3 Processor
- Intel UHD graphics
- Powerful passive cooling for silent performance
- Up to 64GB DDR4 SO-DIMM memory support
- Dual Storage support with M.2 2230/2242 PCIe x4 SSD and 2.5” HDD/SSD
- Windows 11 Ready
- 4K@60Hz display support via HDMI 2.0 and DisplayPort 1.4
- High-speed data transfers with Thunderbolt 4 and USB 3.1 ports
- Dual Gigabit Ethernet, Wi-Fi 5 and Bluetooth 5
- VESA Mount Ready
- Compact 1.8L chassis
Technical Specifications
Built-in Devices
| Microphone | No |
Chipset
| Chipset Manufacturer | Intel |
Power Description
| Maximum Power Supply Wattage | 90 W |
Warranty
| Limited Warranty Duration | 2 Year |
I/O Expansions
| "Number of Internal 2.5"" Bays" | 1 |
| Number of M.2 Interfaces | 1 |
Miscellaneous
| Drivers Included | Yes |
| VESA Mount Included | Yes |
Operating System
| Operating System | Windows 10 Pro |
| Operating System Platform | Windows |
Display & Graphics
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | UHD Graphics |
| Graphics Memory Accessibility | Shared |
| Number of Graphic Controllers | 1 |
Interfaces/Ports
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 1 |
| Number of HDMI Outputs | 1 |
| Total Number of USB Ports | 6 |
| Thunderbolt | Yes |
| Number of DisplayPorts | 1 |
| Headphone/Microphone Combo Port | No |
| Number Of Ethernet Ports | 2 |
| Number of Thunderbolt 3 Ports | 1 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB 3.1 type-C (front) |
| Number of HDMI Outputs (Rear) | 1 |
| HDMI (Rear) | Yes |
| Number of USB 2.0 Ports (Front) | 1 |
| Number of USB 3.0 Ports (Rear) | 1 |
| Number of USB 3.1 Ports (Front) | 1 |
| Number of USB 3.1 Ports (Rear) | 3 |
| USB Type-C (Front) | Yes |
| USB Type-C (Rear) | No |
| Network (RJ-45) (Rear) | Yes |
| Audio Line In (Front) | Yes |
| Audio Line In (Rear) | No |
| Audio Line Out (Front) | Yes |
| Audio Line Out (Rear) | No |
| Number of DisplayPort Outputs (Rear) | 1 |
| DisplayPort (Rear) | Yes |
| Thunderbolt (Rear) | No |
| Number of Thunderbolt 4 Ports | 1 |
Network & Communication
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ac |
| Bluetooth Standard | Bluetooth 5.0 |
Storage
| Solid State Drive Interface | PCI Express x4 |
| Total Solid State Drive Capacity | 120 GB |
| Number of Solid State Drives | 1 |
| SSD Form Factor | M.2 |
Physical Characteristics
| Form Factor | Nano |
| Height | 68 mm |
| Width | 204 mm |
| Depth | 129 mm |
| VESA Mount Standard | 75 x 75 |
| Product Color | Black |
General Information
| Product Type | Desktop Computer |
| Manufacturer Part Number | ZBOX-CI625NANO |
| Manufacturer Website Address | https://www.zotac.com/ |
| Manufacturer | ZOTAC International |
| Product Model | CI625 |
| Product Name | ZBOX C Series nano |
| Product Line | ZBOX nano |
| Brand Name | ZOTAC |
Memory
| Maximum Memory Supported | 64 GB |
| Standard Memory | 8 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Card Supported | microSD,microSDHC,microSDXC |
| Memory Card Reader | Yes |
| Memory Form Factor | SoDIMM |
| Intel Optane Memory Ready | No |
| Memory Card Reader (Front) | Yes |
Processor
| Cache | 6 MB |
| Processor Speed | 3 GHz |
| Processor Type | Core i3 |
| Processor Model | i3-1115G4 |
| Processor Core | Quad-core (4 Core) |
| 64-bit Processing | Yes |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Hyper-Threading | Yes |
| Maximum Turbo Speed | 4.1 GHz |
| Processor Generation | 11th Gen |
