WITH 8GB RAM 250GB SSD WINDOWS 10 PRO
WITH 8GB RAM 250GB SSD WINDOWS 10 PRO
Product Overview

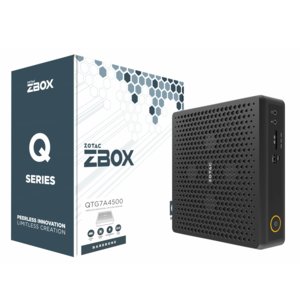

ZBOX QTG7A4500 - 250GB SSD - 8GB RAM - Windows 10 Pro
The new ZOTAC ZBOX Q Series Mini PC accelerates creative and professional workflows, offering up to a 2X performance boost over the previous generation. The mini but mighty workstation solution integrates powerful technologies into an ultra-small form factor featuring the NVIDIA RTX™ A4500 graphics card built on the NVIDIA Ampere architecture and Intel® Core™ i7 processor equipped with eight cores and sixteen threads. The compact 2.65L ZBOX QTG7A4500 provides unrivaled performance and power efficiency for industrial or deployment scenarios.- Intel Core i7 processor (8 cores and 16 threads)
- NVIDIA RTX A4500 16GB GDDR6
- Up to 64GB DDR4-3200/2933 memory support
- Up to 4 displays support with 2x HDMI 2.1 and 2x DisplayPort 1.4a
- Fast data transfer with Thunderbolt 4 and USB 3.1
- Intel Optane Memory ready
- Killer 2.5Gbit LAN, Killer WiFi 6
- Windows 11 Ready
Technical Specifications
Built-in Devices
| Microphone | No |
Chipset
| Chipset Manufacturer | Intel |
Power Description
| Maximum Power Supply Wattage | 330 W |
Warranty
| Limited Warranty Duration | 2 Year |
Miscellaneous
| Drivers Included | Yes |
| VESA Mount Included | No |
Operating System
| Operating System | Windows 10 Pro |
| Operating System Platform | Windows |
I/O Expansions
| "Number of Internal 2.5"" Bays" | 1 |
| Number of Total Expansion Bays | 1 |
| Number of M.2 Interfaces | 2 |
Network & Communication
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Bluetooth Standard | Bluetooth 5.0 |
Interfaces/Ports
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 2 |
| Number of HDMI Outputs | 2 |
| Total Number of USB Ports | 6 |
| Thunderbolt | Yes |
| Number of DisplayPorts | 2 |
| Headphone/Microphone Combo Port | No |
| Number Of Ethernet Ports | 2 |
| Number of USB 3.1 Gen 2 Ports | 5 |
| USB Type-C | Yes |
| Number of HDMI Outputs (Rear) | 2 |
| HDMI (Rear) | Yes |
| Number of USB 3.1 Gen 2 Ports (Front) | 1 |
| USB Type-C (Front) | Yes |
| USB Type-C (Rear) | No |
| Network (RJ-45) (Rear) | Yes |
| Audio Line In (Front) | Yes |
| Audio Line In (Rear) | No |
| Audio Line Out (Front) | Yes |
| Audio Line Out (Rear) | No |
| Number of DisplayPort Outputs (Rear) | 2 |
| DisplayPort (Rear) | Yes |
| Number of USB 3.2 Gen 2 Ports | 5 |
| Number of Thunderbolt 4 Ports | 1 |
Storage
| Solid State Drive Interface | PCI Express x4 |
| Total Solid State Drive Capacity | 250 GB |
| Number of Solid State Drives | 1 |
| SSD Form Factor | M.2 |
Display & Graphics
| Graphics Controller Manufacturer | NVIDIA |
| Graphics Controller Model | RTX A4500 |
| Graphics Memory Capacity | 16 GB |
| Graphics Memory Technology | GDDR6 |
| Graphics Memory Accessibility | Dedicated |
Physical Characteristics
| Form Factor | Micro PC |
| Height | 62.2 mm |
| Width | 210 mm |
| Depth | 203 mm |
| Product Color | Black |
General Information
| Product Type | Desktop Computer |
| Manufacturer Part Number | ZBOX-QTG7A4500 |
| Manufacturer Website Address | https://www.zotac.com/ |
| Manufacturer | ZOTAC International |
| Product Model | QTG7A4500 |
| Product Name | ZOTAC ZBOX Q Series Mini PC |
| Product Line | ZBOX |
| Brand Name | ZOTAC |
Memory
| Maximum Memory Supported | 64 GB |
| Standard Memory | 8 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Card Supported | microSD,microSDHC,microSDXC |
| Memory Card Reader | Yes |
| Memory Form Factor | SoDIMM |
| Intel Optane Memory Ready | Yes |
| Memory Card Reader (Front) | Yes |
Processor
| Cache | 24 MB |
| Processor Speed | 2.3 GHz |
| Processor Type | Core i7 |
| Processor Model | i7-11800H |
| Processor Core | Octa-core (8 Core) |
| 64-bit Processing | Yes |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Hyper-Threading | Yes |
| Maximum Turbo Speed | 4.6 GHz |
| Processor Generation | 11th Gen |
