Product Overview

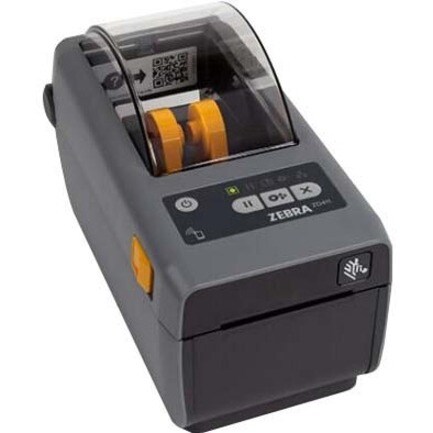

Thermal Transfer Printer 74M ZD411 300 dpi USB USB Host Ethernet BTLE5 APAC Cord bundle EU UK AUS JP Swiss Font EZPL

Elevate your expectations with the advanced, compact printers, built for enduring performance

Your operations demand reliable printing. You need enhanced features, security, next-generation technology and management capabilities to help you work smarter and achieve more. Get it all with Zebra's compact, 2-inch ZD411 desktop printers, designed to fit almost anywhere. Featuring a new architecture and our exclusive Print DNA software suite, they offer enhanced processing power, unmatched security and intuitive setup and operation. Change media quickly with the new media handling design and add capabilities with field-installable options. Connect your way and incorporate wireless capabilities with the optional kit. An extension of the proven ZD400 Series, they're ready to perform flawlessly for years to come.

ZD411 printers have five LED icons that allow you to instantly see what's needed to keep your printers up and running, from replenishing media to resolving printer issues. The advanced three-button user interface replaces the typical single-button/single-light interface common in desktop printers.

Simple to Setup, Use and Manage Today | Ready to Evolve for Tomorrow

Featuring Zebra's Print DNA software suite, ZD411 printers are easy to integrate, simple to operate and can be managed onsite or remotely via a web-based dashboard. They're designed to evolve with technology with an innovative architecture that powers future printing and emerging applications to keep your workflows at peak performance.

Change Media Easily

Color-coded touch points and a new media-handling design guide you through speedy media changes to keep printers operational and workers on task. Replace ribbon intuitively and quickly with less mess, hassle and training time - and fewer calls into IT.

Multiple Models to Match Your Needs | Flexibility for Nearly Every Use Case

Available in direct thermal, thermal transfer and healthcare models, ZD411 printers support supports nearly any 2-inch printing application.

It's Time to Advance | Powerful Printing with Intuitive Operation

Technology is constantly evolving, and so are your business needs. Printers support ZD411 printers are ready to grow with you. Incorporating a powerful new processor, you can run more tasks and perform more operations simultaneously. Advanced features and connectivity options, including field-upgradeable media handling and wireless kits, make them stand apart.

Smart Design for Smarter Operations | Backwards Compatible with Virtually any Existing Printer

Integrate your ZD411 into your existing printer fleet seamlessly. Continue to use the same label formats and applications you're using today. These printers support EPL and ZPL printer languages and can emulate other languages associated with other printer brands using Zebra's Print DNA Printer Emulations.

  • Print methods: Thermal Transfer or Direct Thermal
  • ZPL and EPL programming languages
  • 5 status icon, 3 button user interface
  • USB 2.0, USB Host
  • Printer setup mobile app for Android and iOS via BLE (Bluetooth Low Energy 5) connection BLE is provided for use with Zebra printer setup mobile app only
  • Real Time Clock (RTC)
  • OpenACCESS™ for easy media loading
  • Dual-wall frame construction
  • ENERGY STAR® certified
  • PDF Direct

Technical Specifications

Memory
Standard Memory256 MB
Interfaces/Ports
USBYes
USB HostYes
Network & Communication
BluetoothYes
EthernetYes
Ethernet TechnologyFast Ethernet
Near Field Communication (NFC)Yes
Technical Information
Application/UsageDesktop
Barcode Symbology SupportedISBT-128
QR Code
POSTNET
UPC-E
UPC-A
UPC
Standard 2 of 5
Planet Code
PDF417
MSI
1D
2D
AZTEC
Codabar
Codablock
Code 11
Code 128
Code 39
Plessey
Code 49
Code 93
Data Matrix
EAN With 2 or 5 Digit Extension
EAN-13
EAN-8
Industrial 2 of 5
Interleaved 2 of 5
LOGMARS
Maxi Code
Micro PDF
Maximum Print Width54 mm (2.13")
Recommended UseLabel/Receipt Print
Connectivity TechnologyWired
FeaturesDual Wall Frame
Compact
Print Color CapabilityMonochrome
Optional ConnectivityWireless LAN
Serial (RS-232)
Real Time ClockYes
Maximum Print Resolution (dpi)300
Physical Characteristics
Weight (Approximate)1.63 kg
Height169.2 mm
Width138.7 mm
Depth242.8 mm
Fonts & Emulation
Language EmulationEPL
EPL II
EZPL
ZPL II
ZBI
ZPL
XML
General Information
Product TypeThermal Transfer Printer
Manufacturer Part NumberZD4A023-T0PE00EZ
Manufacturer Website Addresshttp://www.zebra.com/ap/en.html
ManufacturerZebra Technologies Corporation
Product ModelZD411
Product NameZD411 Thermal Transfer Printer
Product SeriesZD400
Brand NameZebra
Miscellaneous
Package Contents
  • ZD411 Thermal Transfer Printer
  • Empty Ribbon Take-Up Core
  • AC Power Supply
  • Power Cord
  • USB Cable
  • Quick Start Guide
  • Regulatory Guide
Platform SupportedAndroid
iOS
PC
Environmentally FriendlyYes
Energy StarYes
Power Cable LocalizationJP
EU
AUS
UK
Power Adapter IncludedYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Media Types & Handling
Media Thickness190.5 µm
Maximum Roll Diameter127 mm
Media TypeContinuous Receipt
Fanfold
Label
Receipt
Roll Fed
Tag Stock
Wristband
Continuous Paper
Media SensorMulti-position Transmissive/Gap Sensor
Moveable Reflective/Black Mark Sensor
Full Width Sensor
Maximum Label Width57 mm
Maximum Label Length991 mm
