DIRECT THERMAL PRINTER ZD411 HEALTHCARE
DIRECT THERMAL PRINTER ZD411 HEALTHCARE
Product Overview
Direct Thermal Printer ZD411 Healthcare 203 dpi USB USB Host Modular Connectivity Slot 802.11ac BT4 All Countries Except USA Canada and Japan APAC Cord Bundle EU UK AUS JP Swiss Font EZPL

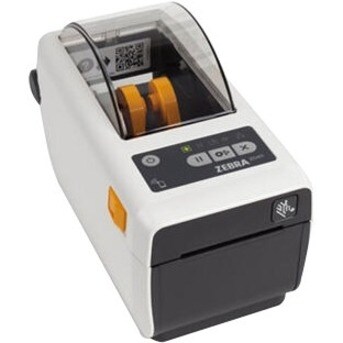

Expect more with Zebra's advanced, compact desktop printer, made for healthcare
Elevate your expectations with the reliable compact healthcare printer that's designed exclusively for healthcare. Zebra's ZD411-HC includes all the advanced features you need and is built to last for years to come. It's built with disinfectant-ready, UV-resistant plastics and a medical-grade power supply for added safety. Including a new architecture and our exclusive Print DNA software suite, it offers enhanced processing power, unmatched security and intuitive setup and operation. Add capabilities with field-installable options, including wireless capabilities. An extension of the proven ZD400 Series, it's ready to perform flawlessly for years to come.
Advance Your Healthcare Workflows | Easy to Clean, Sanitize and Safely Power
Disinfectant-ready plastics, UV-resistant housing and a sealed-button interface make the ZD411-HC printer easy to clean and sanitize, which helps prevent the spread of infections in hospitals and clinics. The medical-grade power supply is IEC 60601-1 compliant for use in any healthcare facility.
Simple to Setup, Use and Manage Today | Ready to Evolve for Tomorrow
Featuring Zebra's Print DNA software suite, the ZD411-HC is easy to integrate, simple to operate and can be managed onsite or remotely via a web-based dashboard. It's designed to evolve with technology with its innovative architecture that powers future printing and emerging applications to keep your workflows at peak performance.
Change Media Easily
Color-coded touch points guide you through speedy media changes to keep printers operational and workers on task. See status easily via the five LED icons on the intuitive display.
It's Time to Advance | Powerful Printing with Intuitive Operation
Technology is constantly evolving, and so are your business needs. The ZD411-HC is ready to grow with you. Incorporating a powerful new processor, you can run more tasks and perform more operations simultaneously. Advanced features and connectivity options, including field-upgradeable media handling and wireless kits, make it stand apart. The ZD411-HC has five LED icons that allow you to instantly see what's needed to keep your printer up and running, from replenishing media to resolving printer issues. The advanced three-button user interface replaces the typical single-button/single-light interface common in desktop printers.
- Print methods: Direct Thermal
- ZPL and EPL programming languages
- 5 status icon, 3 button user interface
- USB 2.0, USB Host
- Printer setup mobile app for Android and iOS via BLE (Bluetooth Low Energy 5) connection BLE is provided for use with Zebra printer setup mobile app only
- Real Time Clock (RTC)
- OpenACCESS™ for easy media loading
- Dual-wall frame construction
- ENERGY STAR® certified
- PDF Direct
Technical Specifications
Standard Memory | 256 MB |
Power Source | AC Supply |
Operating System Supported | Link-OS |
USB | Yes |
USB Host | Yes |
Bluetooth | Yes |
Wireless LAN | Yes |
Wireless LAN Standard | IEEE 802.11ac |
Near Field Communication (NFC) | Yes |
Application/Usage | Desktop |
Barcode Symbology Supported | AZTEC |
Codabar | |
Codablock | |
Code 11 | |
Code 128 | |
Code 39 | |
Code 49 | |
Code 93 | |
UPC | |
UPC-A | |
UPC-E | |
PDF417 | |
Planet Code | |
Plessey | |
POSTNET | |
QR Code | |
Standard 2 of 5 | |
Data Matrix | |
EAN With 2 or 5 Digit Extension | |
EAN-13 | |
EAN-8 | |
Industrial 2 of 5 | |
Interleaved 2 of 5 | |
ISBT-128 | |
LOGMARS | |
Maxi Code | |
Micro PDF | |
MSI | |
1D | |
2D | |
Maximum Print Width | 56 mm (2.20") |
Recommended Use | Label/Receipt Print |
Connectivity Technology | Wireless |
Features | Compact |
Dual Wall Frame | |
Print Technology | Direct Thermal |
Print Color Capability | Monochrome |
Optional Connectivity | Ethernet |
Serial (RS-232) | |
Real Time Clock | Yes |
Maximum Print Resolution (dpi) | 203 |
Weight (Approximate) | 997.9 g |
Height | 152.4 mm |
Width | 114.3 mm |
Depth | 218.4 mm |
Language Emulation | EPL |
ZPL | |
ZBI | |
ZPL II | |
XML | |
EZPL | |
EPL II |
Product Type | Direct Thermal Printer |
Manufacturer Part Number | ZD4AH22-D0PW02EZ |
Manufacturer Website Address | http://www.zebra.com/ap/en.html |
Manufacturer | Zebra Technologies Corporation |
Product Model | ZD411-HC |
Product Name | ZD411-HC 2-inch Desktop Printer |
Product Series | ZD400 |
Brand Name | Zebra |
Media Thickness | 190.5 µm |
Maximum Roll Diameter | 127 mm |
Media Type | Wristband |
Continuous Paper | |
Continuous Receipt | |
Fanfold | |
Roll Fed | |
Tag Stock | |
Media Sensor | Full Width Sensor |
Moveable Reflective/Black Mark Sensor | |
Multi-position Transmissive/Gap Sensor | |
Maximum Label Width | 57 mm |
Maximum Label Length | 991 mm |
Package Contents |
|
Platform Supported | iOS |
Android | |
PC | |
Environmentally Friendly | Yes |
Cables Included | USB |
Energy Star | Yes |
Power Cable Localization | JP |
UK | |
AUS | |
EU | |
Power Adapter Included | Yes |
Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
Restriction of Hazardous Substances (RoHS) |
