Product Overview

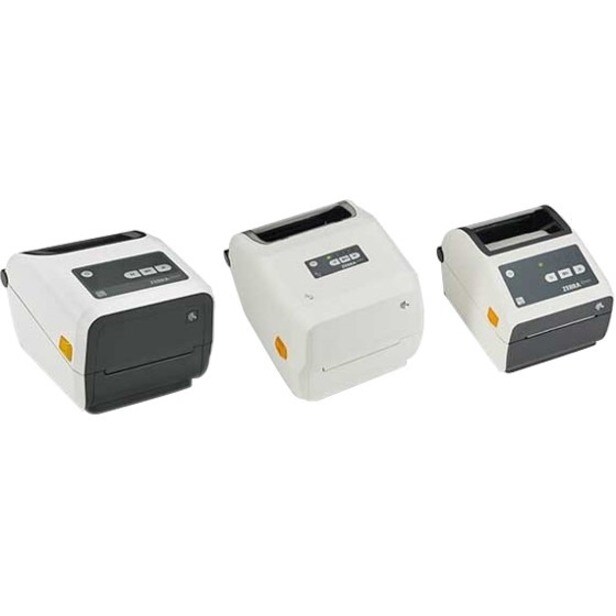

Direct Thermal Printer ZD421, Healthcare; 203 dpi, USB, USB Host, Ethernet, BTLE5, APAC Cord Bundle (EU, UK, AUS, JP), Swiss Font, EZPL

ELEVATE YOUR EXPECTATIONS WITH ZEBRA'S ADVANCED HEALTHCARE DESKTOP PRINTERS

You need a reliable printer built for healthcare that delivers quality performance, now and for years to come. It needs key features, and be easy to setup, operate, manage and maintain-onsite or remotely. It needs to be secure to protect patient information, whether integrated onto your network or not, to prevent downtime and costly cyberattacks. You need it, and Zebra delivers it, for more than 50 years. We've engineered our healthcare printers to match your workflows for hassle-free performance. Building on the legacy of Zebra's GK Series and ZD420 healthcare printers, the ZD421 delivers the flexibility and reliability you need, with even more capabilities and security, to set you up for years of use.-

IT'S TIME TO ADVANCE

Migrate from G to Z

The ZD421 builds on the legacy of Zebra's GK Series and ZD420 Series printers, offering you the functions and capabilities of its predecessor-and much more. The next-generation ZD421 leverages this heritage to deliver advanced features for a new era of intelligence and forward flexibility, packaged in a ready-to-work healthcare model.

ADVANCE YOUR HEALTHCARE WORKFLOWS

Easy to Clean, Sanitize and Safely Power

Disinfectant-ready plastics, UV-resistant housing and a sealed-button interface make the ZD421 healthcare printer easy to clean and sanitize, helping prevent the spread of infections in hospitals and clinics. And, the power supply is IEC 60601-1 compliant for use in healthcare facilities.

SIMPLE TO USE

Intuitive and Powerful Operation

The ZD421 offers new, advanced features that make it stand apart. It includes a new, more intuitive user interface, powerful architecture and field-upgradeable wireless kit. It also has new media guide and media handling designs that make daily operation even easier.

SUPPORTS NEARLY EVERY USE CASE

Multiple Models to Match Your Needs

Available in direct thermal, thermal transfer and ribbon cartridge models, all specifically for healthcare, the ZD421 healthcare printer meets a wide variety of healthcare-specific use cases and requirements.

READY FOR NOW AND WHAT'S NEXT

Get Years of Printing Performance

Featuring an innovative architecture, the ZD421 is engineered to power future printing. It's 30% more powerful than the ZD420 Series and 700% more than the GK Series. Perform more operations simultaneously, maintain security and be ready for what's next.

Backwards Compatible with Virtually Any Existing Printer

Deploy your ZD421 into your existing printer fleet with confidence. Use the same label formats and applications you're using today. It supports both EPL and ZPL printer languages, and can emulate languages normally associated with other printer brands using Zebra's Print DNA tool, Virtual Devices.

  • Print methods: Direct Thermal
  • ZPL and EPL programming languages
  • 5 status icon, 3 button user interface
  • USB 2.0, USB Host
  • Printer setup mobile app for Android and iOS via BLE (Bluetooth Low Energy 5) connection
  • Real Time Clock (RTC)
  • OpenACCESS™ for easy media loading
  • Dual-wall frame construction
  • ENERGY STAR® certified

Technical Specifications

Memory
Standard Memory256 MB
Interfaces/Ports
USBYes
USB HostYes
Power Description
Input Voltage120 V AC
230 V AC
Technical Information
Application/UsageDesktop
Barcode Symbology SupportedMaxi Code
LOGMARS
MSI
PDF417
Planet Code
Plessey
POSTNET
QR Code
Standard 2 of 5
UPC 2 or 5 Digit Extension
UPC-A
UPC-E
Micro PDF
EAN With 2 or 5 Digit Extension
Data Matrix
Code 93
Code 49
EAN-8
EAN-13
Code 39
Code 128
Code 11
Codablock
Codabar
ISBT-128
Interleaved 2 of 5
Industrial 2 of 5
AZTEC
Maximum Print Width104 mm (4.09")
Recommended UseLabel/Receipt Print
Connectivity TechnologyWired
FeaturesDual Wall Frame
UV Resistant Housing
Status Indicator
Mobile Device PrintingYes
Print Color CapabilityMonochrome
Optional ConnectivitySerial (RS-232)
Wireless LAN
Real Time ClockYes
Maximum Print Resolution (dpi)203
Network & Communication
BluetoothYes
EthernetYes
Ethernet TechnologyEthernet
Fonts & Emulation
Language EmulationZPL II
EPL2
XML
ZBI
Physical Characteristics
Weight (Approximate)1.35 kg
Height150.6 mm
Width177.3 mm
Depth220.7 mm
General Information
Product TypeDirect Thermal
Manufacturer Part NumberZD4AH42-D0PE00EZ
Manufacturer Website Addresshttp://www.zebra.com/ap/en.html
ManufacturerZebra Technologies Corporation
Product ModelZD421-HC
Product NameZD421-HC Direct Thermal Printer
Brand NameZebra
Miscellaneous
Package Contents
  • ZD421-HC Direct Thermal Printer
  • AC Power Supply
  • Power Cord(s)
  • USB Cable
  • Quick Start Guide
  • Regulatory Guide
Platform SupportedPC
Android
iOS
Environmentally FriendlyYes
Energy StarYes
Power Cable LocalizationAUS
UK
JP
EU
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Media Types & Handling
Media Thickness4826 µm
Maximum Roll Diameter127 mm
Media TypeWristband
Tag Stock
Label
Fanfold
Die-cut Label
Continuous Receipt
Continuous Label
Roll Fed
Media SensorMulti-position Transmissive/Gap Sensor
Moveable Reflective/Black Mark Sensor
Full Width Sensor
Maximum Label Width108 mm
Maximum Label Length991 mm
