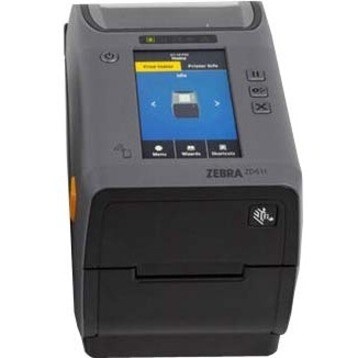

DIRECT THERMAL PRINTER ZD611 300 DPI USB
DIRECT THERMAL PRINTER ZD611 300 DPI USB
Product Overview
Direct Thermal Printer ZD611 300 dpi USB USB Host Ethernet BTLE5 Dispenser Peeler APAC Cord Bundle EU UK AUS JP Swiss Font EZPL
Specifications are provided for reference and are based on printer tests using Zebra brand
supplies. Results may vary in actual application settings or when using other than recommended
Zebra supplies. Zebra recommends always qualifying any application with thorough testing.
- 8 ips maximum print speed
- ZPL II® and EPL2™ programming languages
- Connectivity: Ethernet, USB 2.0, USB Host
- 4.3 in. full-color touch LCD (480 × 272 resolution), 5 status icons, 3 button user interface
- Tested for robust tolerance to temperature, humidity, dust and other tough environmental challenges
- Standard on thermal transfer models
- Printer setup mobile app for Android™ and iOS via Bluetooth® Low Energy 5 (BLE) connection
- BLE is best used for printer setup and light data transfer events. For best performance when printing, use a printer with Bluetooth Classic.
Technical Specifications
Memory
| Standard Memory | 256 MB |
Interfaces/Ports
| USB | Yes |
| USB Host | Yes |
Display & Graphics
| Display Screen | Yes |
| Screen Size | 10.9 cm (4.3") |
| Display Screen Type | LCD |
Technical Information
| Application/Usage | Desktop |
| Barcode Symbology Supported | Micro PDF-417 |
| Maxi Code | |
| PDF417 | |
| Plessey | |
| POSTNET | |
| RSS-14 | |
| UCC/EAN 128 | |
| UPC-A | |
| MSI-3 | |
| UPC-E with EAN 2 or 5 Digit Extension | |
| German Post Code | |
| UPC-E | |
| EAN-8 With 2 or 5 Digit Extension | |
| EAN-8 | |
| EAN-13 With 2 and 5 Digit Extension | |
| EAN-13 | |
| Macro PDF-417 | |
| Interleaved 2 of 5 | |
| UPC-A with 2 and 5 Add-on | |
| Codabar | |
| Code 128 (A/B/C) | |
| Code 39 | |
| Code 93 | |
| Data Matrix | |
| Maximum Print Width | 54 mm (2.13") |
| Recommended Use | Label Print |
| Connectivity Technology | Wired |
| Features | LCD Display |
| Compact | |
| Peel Facility | Yes |
| Print Color Capability | Monochrome |
| Maximum Print Length | 991 mm |
| Optional Connectivity | Wireless LAN |
| Serial (RS-232) | |
| Real Time Clock | Yes |
| Maximum Print Resolution (dpi) | 300 |
Network & Communication
| Bluetooth | Yes |
| Ethernet | Yes |
| Ethernet Technology | Fast Ethernet |
Physical Characteristics
| Weight (Approximate) | 1.07 kg |
| Height | 151 mm |
| Width | 115 mm |
| Depth | 220 mm |
Fonts & Emulation
| Language Emulation | EPL2 |
| EZPL | |
| ZPL II | |
| XML | |
| ZPL |
General Information
| Product Type | Direct Thermal Printer |
| Manufacturer Part Number | ZD6A023-D1PE00EZ |
| Manufacturer Website Address | http://www.zebra.com/ap/en.html |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | ZD611 |
| Product Name | ZD611 Direct Thermal Printer |
| Brand Name | Zebra |
Miscellaneous
| Platform Supported | Android |
| iOS | |
| PC | |
| Energy Star | Yes |
| Power Cable Localization | UK |
| JP | |
| EU | |
| AUS |
Media Types & Handling
| Media Thickness | 190.5 µm |
| Maximum Roll Diameter | 127 mm |
| Media Type | Roll Fed |
| Tag Stock | |
| Wristband | |
| Linerless | |
| Label | |
| Gap | |
| Fanfold | |
| Die-cut Label | |
| Continuous Receipt | |
| Continuous Label | |
| Notch | |
| Media Sensor | Label Taken Sensor |
| Maximum Label Width | 59.94 mm |
| Maximum Label Length | 39 mm |
