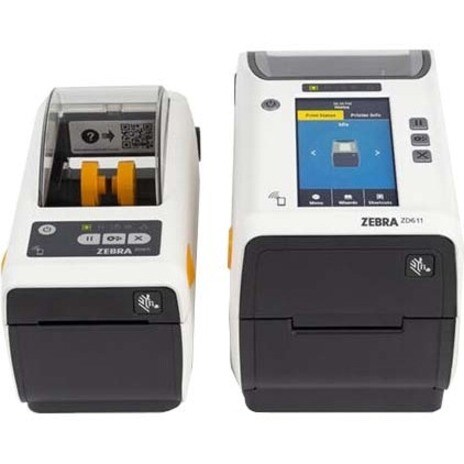

DIRECT THERMAL PRINTER ZD611 HEALTHCARE

DIRECT THERMAL PRINTER ZD611 HEALTHCARE

DIRECT THERMAL PRINTER ZD611 HEALTHCARE

Product Overview

Direct Thermal Printer ZD611 Healthcare 203 dpi USB USB Host Ethernet BTLE5 APAC Cord Bundle EU UK AUS JP Swiss Font EZPL

Invest in the best with Zebra's premium 2-inch compact desktop printers, made for healthcare

When it comes to healthcare, you need premium, superior printing capabilities that you can rely on for years of outstanding performance. Zebra's new 2-inch ZD611-HC desktop printers have all the features your workflows require, such as next-generation technology, disinfectant-ready and UV-resistant plastics and a medical-grade power supply for added safety. They're easy to setup, operate and maintain thanks to Zebra's Print DNA software suite and the printers' new architecture that provides more processing power and enhanced security. Change media quickly with the new media handling design and add capabilities with field-installable options. Connect your way and incorporate wireless capabilities with the optional kit. Building on the proven ZD600 Series, they're ready to perform flawlessly for years to come.

to emerging technology to field-installable options, the ZD611-HC stands apart. Available in direct thermal, thermal transfer and linerless models, the ZD611-HC supports a wide variety of use cases.

Purpose-built Healthcare Design

Easy to Sanitize and Safe to Power

Disinfectant-ready plastics, UV-resistant housing and a sealed-button interface make the ZD611-HC easy to clean and sanitize, which helps prevent the spread of infections in hospitals and clinics. The medical-grade power supply is IEC 60601-1 compliant for use in any healthcare facility.

Operate with Ease

Simple to Setup, Easy to Maintain

Backed by Zebra's innovative Print DNA software suite, ZD611-HC printers are incredibly simple to operate. Deploy them anywhere with setup tools, wizards and emulation capabilities. The intuitive user interface requires minimal training, while remote management capabilities and built-in security mean your infrastructure is protected from cyberattacks.

Change Media Easily

Color-coded touch points and a new media-handling design guide you through speedy media changes to keep printers operational and workers on task. Replace ribbon intuitively and quickly with less mess, hassle and training time - and fewer calls into IT.

  • Print methods: Direct Thermal
  • ZPL and EPL programming languages
  • 4.3" full color touch LCD (resolution: 480 wide x 272 high)with 3-button user interface (thermal transfer model)
  • 5 status icon, 3 button user interface (direct thermal model)
  • Ethernet, USB 2.0, USB Host
  • Real Time Clock (RTC)
  • Media dancer for excellent print quality (thermal transfer model)
  • OpenACCESS™ for easy media loading
  • Dual-wall frame construction
  • ENERGY STAR® certified

Technical Specifications

Memory
Standard Memory256 MB
Interfaces/Ports
USBYes
USB HostYes
Display & Graphics
Display ScreenYes
Screen Size10.9 cm (4.3")
Display Screen TypeLCD
Network & Communication
BluetoothYes
EthernetYes
Ethernet TechnologyFast Ethernet
Technical Information
Application/UsageDesktop
Barcode Symbology SupportedCode 93
Data Matrix
EAN-13
EAN-13 With 2 and 5 Digit Extension
EAN-8
EAN-8 With 2 or 5 Digit Extension
German Post Code
Interleaved 2 of 5
Macro PDF-417
Maxi Code
Micro PDF-417
Code 39
Code 128 (A/B/C)
Codabar
UPC-E with EAN 2 or 5 Digit Extension
MSI-3
UPC-E
UPC-A with 2 and 5 Add-on
UPC-A
UCC/EAN 128
RSS-14
POSTNET
Plessey
PDF417
Maximum Print Width56 mm (2.20")
Recommended UseLabel Print
Connectivity TechnologyWired
FeaturesLCD Display
Compact
Dual Wall Frame
Print Color CapabilityMonochrome
Optional ConnectivityWireless LAN
Serial (RS-232)
Real Time ClockYes
Maximum Print Resolution (dpi)203
Physical Characteristics
Weight (Approximate)1.07 kg
Height151 mm
Width115 mm
Depth220 mm
Fonts & Emulation
Language EmulationEPL2
EZPL
ZPL II
ZPL
XML
General Information
Product TypeDirect Thermal Printer
Manufacturer Part NumberZD6AH22-D0PE00EZ
Manufacturer Website Addresshttp://www.zebra.com/ap/en.html
ManufacturerZebra Technologies Corporation
Product ModelZD611D-HC
Product NameZD611D-HC Direct Thermal Printer
Brand NameZebra
Miscellaneous
Package Contents
  • ZD611D-HC Direct Thermal Printer
  • AC Power Supply
  • Power cord(s)
  • USB cable
  • Quick Start Guide
  • Regulatory Guide
Platform SupportedAndroid
iOS
PC
Environmentally FriendlyYes
Energy StarYes
Power Cable LocalizationUK
JP
EU
AUS
Power Adapter IncludedYes
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
Media Types & Handling
Media Thickness190.5 µm
Maximum Roll Diameter127 mm
Media TypeTag Stock
Wristband
Gap
Fanfold
Die-cut Label
Continuous Receipt
Continuous Label
Roll Fed
Notch
Label
Media SensorMoveable Reflective/Black Mark Sensor
Multi-position Transmissive/Gap Sensor
Maximum Label Width57.15 mm
Maximum Label Length39 mm
