DIRECT THERMAL PRINTER ZD611 HEALTHCARE
DIRECT THERMAL PRINTER ZD611 HEALTHCARE
Product Overview
Direct Thermal Printer ZD611 Healthcare 300 dpi USB USB Host Ethernet BTLE5 APAC Cord Bundle EU UK AUS JP Swiss Font EZPL

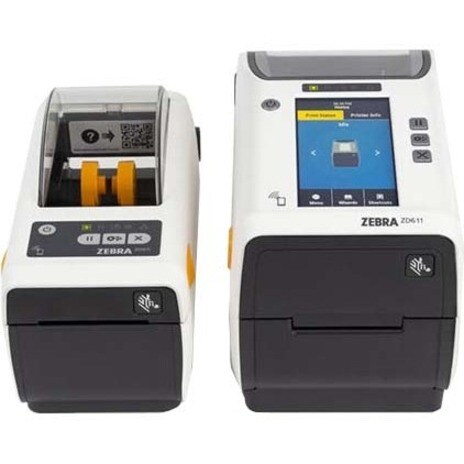

Invest in the best with Zebra's premium 2-inch compact desktop printers, made for healthcare
When it comes to healthcare, you need premium, superior printing capabilities that you can rely on for years of outstanding performance. Zebra's new 2-inch ZD611-HC desktop printers have all the features your workflows require, such as next-generation technology, disinfectant-ready and UV-resistant plastics and a medical-grade power supply for added safety. They're easy to setup, operate and maintain thanks to Zebra's Print DNA software suite and the printers' new architecture that provides more processing power and enhanced security. Change media quickly with the new media handling design and add capabilities with field-installable options. Connect your way and incorporate wireless capabilities with the optional kit. Building on the proven ZD600 Series, they're ready to perform flawlessly for years to come.to emerging technology to field-installable options, the ZD611-HC stands apart. Available in direct thermal, thermal transfer and linerless models, the ZD611-HC supports a wide variety of use cases.
Purpose-built Healthcare Design
Easy to Sanitize and Safe to Power
Disinfectant-ready plastics, UV-resistant housing and a sealed-button interface make the ZD611-HC easy to clean and sanitize, which helps prevent the spread of infections in hospitals and clinics. The medical-grade power supply is IEC 60601-1 compliant for use in any healthcare facility.
Operate with Ease
Simple to Setup, Easy to Maintain
Backed by Zebra's innovative Print DNA software suite, ZD611-HC printers are incredibly simple to operate. Deploy them anywhere with setup tools, wizards and emulation capabilities. The intuitive user interface requires minimal training, while remote management capabilities and built-in security mean your infrastructure is protected from cyberattacks.
Change Media Easily
Color-coded touch points and a new media-handling design guide you through speedy media changes to keep printers operational and workers on task. Replace ribbon intuitively and quickly with less mess, hassle and training time - and fewer calls into IT.
- Print methods: Direct Thermal
- ZPL and EPL programming languages
- 4.3" full color touch LCD (resolution: 480 wide x 272 high)with 3-button user interface (thermal transfer model)
- 5 status icon, 3 button user interface (direct thermal model)
- Ethernet, USB 2.0, USB Host
- Real Time Clock (RTC)
- Media dancer for excellent print quality (thermal transfer model)
- OpenACCESS™ for easy media loading
- Dual-wall frame construction
- ENERGY STAR® certified
Technical Specifications
Standard Memory | 256 MB |
USB | Yes |
USB Host | Yes |
Display Screen | Yes |
Screen Size | 10.9 cm (4.3") |
Display Screen Type | LCD |
Bluetooth | Yes |
Ethernet | Yes |
Ethernet Technology | Fast Ethernet |
Application/Usage | Desktop |
Barcode Symbology Supported | EAN-13 With 2 and 5 Digit Extension |
EAN-8 | |
EAN-8 With 2 or 5 Digit Extension | |
German Post Code | |
Interleaved 2 of 5 | |
Macro PDF-417 | |
Maxi Code | |
Micro PDF-417 | |
MSI-3 | |
PDF417 | |
Plessey | |
Codabar | |
Code 128 (A/B/C) | |
Code 39 | |
RSS-14 | |
UCC/EAN 128 | |
UPC-A | |
UPC-A with 2 and 5 Add-on | |
UPC-E | |
UPC-E with EAN 2 or 5 Digit Extension | |
Code 93 | |
Data Matrix | |
EAN-13 | |
POSTNET | |
Maximum Print Width | 54 mm (2.13") |
Recommended Use | Label Print |
Connectivity Technology | Wired |
Features | Compact |
LCD Display | |
Dual Wall Frame | |
Print Color Capability | Monochrome |
Optional Connectivity | Serial (RS-232) |
Wireless LAN | |
Real Time Clock | Yes |
Maximum Print Resolution (dpi) | 300 |
Weight (Approximate) | 1.07 kg |
Height | 151 mm |
Width | 115 mm |
Depth | 220 mm |
Language Emulation | ZPL |
ZPL II | |
EZPL | |
EPL2 | |
XML |
Product Type | Direct Thermal Printer |
Manufacturer Part Number | ZD6AH23-D0PE00EZ |
Manufacturer Website Address | http://www.zebra.com/ap/en.html |
Manufacturer | Zebra Technologies Corporation |
Product Model | ZD611D-HC |
Product Name | ZD611D-HC Direct Thermal Printer |
Brand Name | Zebra |
Package Contents |
|
Platform Supported | PC |
Android | |
iOS | |
Environmentally Friendly | Yes |
Energy Star | Yes |
Power Cable Localization | AUS |
UK | |
JP | |
EU | |
Power Adapter Included | Yes |
Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
Restriction of Hazardous Substances (RoHS) |
Media Thickness | 190.5 µm |
Maximum Roll Diameter | 127 mm |
Media Type | Die-cut Label |
Wristband | |
Tag Stock | |
Roll Fed | |
Notch | |
Label | |
Gap | |
Fanfold | |
Continuous Receipt | |
Continuous Label | |
Media Sensor | Moveable Reflective/Black Mark Sensor |
Multi-position Transmissive/Gap Sensor | |
Maximum Label Width | 57.15 mm |
Maximum Label Length | 39 mm |
