THERMAL TRANSFER PRINTER 74M ZD611 HEALT

THERMAL TRANSFER PRINTER 74M ZD611 HEALT

THERMAL TRANSFER PRINTER 74M ZD611 HEALT

Product Overview

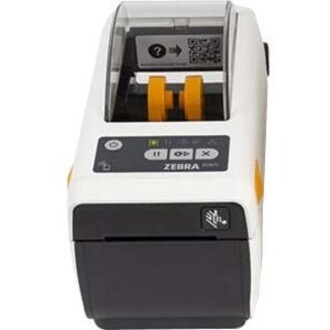

Thermal Transfer Printer 74M ZD611 Healthcare Color Touch LCD 300 dpi USB USB Host Ethernet 802.11ac BT4 All Countries Except USA Canada and Japan APAC Cord Bundle EU UK AUS JP Swiss Font EZPL

Invest in the best with Zebra's premium 2-inch compact desktop printers, made for healthcare

When it comes to healthcare, you need premium, superior printing capabilities that you can rely on for years of outstanding performance. Zebra's new 2-inch ZD611-HC desktop printers have all the features your workflows require, such as next-generation technology, disinfectant-ready and UV-resistant plastics and a medical-grade power supply for added safety. They're easy to setup, operate and maintain thanks to Zebra's Print DNA software suite and the printers' new architecture that provides more processing power and enhanced security. Change media quickly with the new media handling design and add capabilities with field-installable options. Connect your way and incorporate wireless capabilities with the optional kit. Building on the proven ZD600 Series, they're ready to perform flawlessly for years to come.

to emerging technology to field-installable options, the ZD611-HC stands apart. Available in direct thermal, thermal transfer and linerless models, the ZD611-HC supports a wide variety of use cases.

Purpose-built Healthcare Design

Easy to Sanitize and Safe to Power

Disinfectant-ready plastics, UV-resistant housing and a sealed-button interface make the ZD611-HC easy to clean and sanitize, which helps prevent the spread of infections in hospitals and clinics. The medical-grade power supply is IEC 60601-1 compliant for use in any healthcare facility.

Operate with Ease

Simple to Setup, Easy to Maintain

Backed by Zebra's innovative Print DNA software suite, ZD611-HC printers are incredibly simple to operate. Deploy them anywhere with setup tools, wizards and emulation capabilities. The intuitive user interface requires minimal training, while remote management capabilities and built-in security mean your infrastructure is protected from cyberattacks.

Change Media Easily

Color-coded touch points and a new media-handling design guide you through speedy media changes to keep printers operational and workers on task. Replace ribbon intuitively and quickly with less mess, hassle and training time - and fewer calls into IT.

  • Print methods: Thermal Transfer or Direct Thermal
  • ZPL and EPL programming languages
  • 4.3" full color touch LCD (resolution: 480 wide x 272 high)with 3-button user interface (thermal transfer model)
  • 5 status icon, 3 button user interface (direct thermal model)
  • Ethernet, USB 2.0, USB Host
  • Real Time Clock (RTC)
  • Media dancer for excellent print quality (thermal transfer model)
  • OpenACCESS™ for easy media loading
  • Dual-wall frame construction
  • ENERGY STAR® certified

Technical Specifications

Memory
Standard Memory256 MB
Interfaces/Ports
USBYes
USB HostYes
Display & Graphics
Display ScreenYes
Screen Size10.9 cm (4.3")
Display Screen TypeLCD
Network & Communication
BluetoothYes
EthernetYes
Wireless LANYes
Ethernet TechnologyFast Ethernet
Technical Information
Application/UsageDesktop
Barcode Symbology SupportedCode 39
EAN-13
EAN-13 With 2 and 5 Digit Extension
EAN-8
EAN-8 With 2 or 5 Digit Extension
German Post Code
Interleaved 2 of 5
Macro PDF-417
Maxi Code
Micro PDF-417
MSI-3
PDF417
Plessey
POSTNET
RSS-14
UCC/EAN 128
UPC-A
UPC-A with 2 and 5 Add-on
UPC-E
UPC-E with EAN 2 or 5 Digit Extension
Code 93
Data Matrix
Code 128 (A/B/C)
Codabar
Maximum Print Width54 mm (2.13")
Recommended UseLabel Print
Connectivity TechnologyWired & Wireless
FeaturesCompact
Dual Wall Frame
LCD Display
Print Color CapabilityMonochrome
Optional ConnectivitySerial (RS-232)
Real Time ClockYes
Maximum Print Resolution (dpi)300
Physical Characteristics
Weight (Approximate)1.63 kg
Height169.2 mm
Width138.7 mm
Depth242.9 mm
Fonts & Emulation
Language EmulationXML
ZPL
EZPL
EPL2
ZPL II
General Information
Product TypeThermal Transfer Printer
Manufacturer Part NumberZD6AH23-T0PB02EZ
Manufacturer Website Addresshttp://www.zebra.com/ap/en.html
ManufacturerZebra Technologies Corporation
Product ModelZD611T-HC
Product NameZD611T-HC Thermal Transfer Printer
Brand NameZebra
Miscellaneous
Package Contents
  • ZD611T-HC Thermal Transfer Printer
  • Empty Ribbon Take-up core - Thermal Transfer Model (0.5 in.)
  • AC Power Supply
  • Power cord(s)
  • USB cable
  • Quick Start Guide
  • Regulatory Guide
Platform SupportedAndroid
iOS
PC
Environmentally FriendlyYes
Energy StarYes
Power Cable LocalizationJP
UK
EU
AUS
Power Adapter IncludedYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Media Types & Handling
Media Thickness190.5 µm
Maximum Roll Diameter127 mm
Media TypeDie-cut Label
Continuous Receipt
Continuous Label
Label
Tag Stock
Roll Fed
Notch
Fanfold
Gap
Wristband
Media SensorMulti-position Transmissive/Gap Sensor
Moveable Reflective/Black Mark Sensor
Maximum Label Width57.15 mm
Maximum Label Length39 mm
