Product Overview

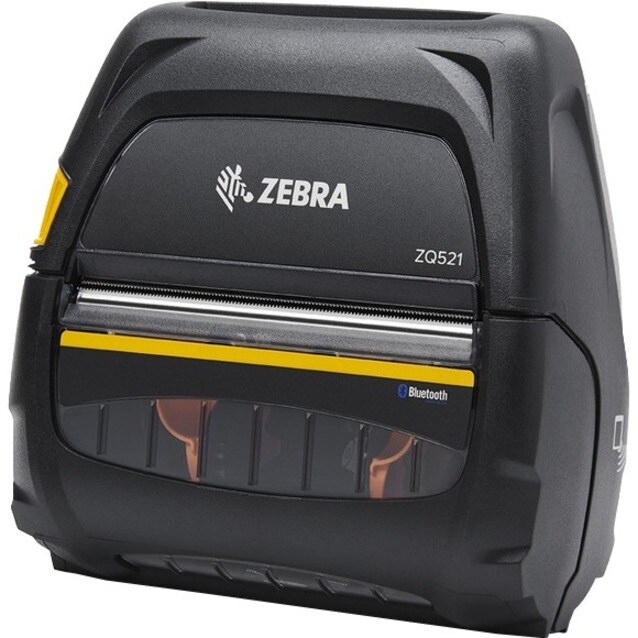

Zebra ZQ521 Mobile Direct Thermal Printer - Monochrome - Label/Receipt Print - Bluetooth - Wireless LAN - Near Field Communication (NFC) - Real Time Clock - 990.60 mm Print Length - 103.89 mm (4.09") Print Width - 127 mm/s Mono - 203 dpi - 50.80 mm Label Width - CPCL, ZPL, XML Emulation - For PC, Android, iOS

Zebra's ZQ500™ Series just got tougher. The premium ZQ511™ and ZQ521™ printers - both available in RFID models - give you best-in-class, rugged mobile printing for applications in any industry. Experience ultimate durability. Engineered for tough, demanding indoor and outdoor conditions, these printers can withstand significant drops, tumbles, accidents and environmental extremes that are common in mobile workplaces. Additional features, enhanced durability and military-grade design mean this printer will work as hard as you do.

Tough. Reliable. Built to Endure | The Most Rugged Printers on the Market

You need a mobile printer that can handle serious abuse. Designed and certified to meet MIL-STD 810G for drop and shock, and tumble tested per the IEC68-2-32 spec to handle 1300 tumbles from 3.3' (1M), the ZQ511 and ZQ521 printers can withstand more than the average mobile printer.

Protection from solid and liquid ingress is no problem with an IP54 rating right out of the box without the need for a protective case.

If this isn't enough to convince you that these are ultra-rugged mobile printers, we also offer an optional exoskeleton case that increases our standard drop testing from 6.6' to 10' and improves the IP rating to IP65.

Built to Last

New over-molding helps increase the longevity and keeps your ZQ500 Series looking good over the life of the printer.

Print it All: Receipts, RFID tags, Labels and Linerless

Optimized for on-demand receipt printing in 3" (72mm) and 4" (104mm) print widths, the ZQ511 and ZQ521 printers also print a variety of labels including UHF RFID tags for all your tracking needs. Zebra's comprehensive RFID portfolio is the only one to include mobile printers to help you reduce errors, and print and encode RFID labels on the go.

  • Android, Apple iOS, Windows Mobile connectivity
  • Bluetooth specification 4.1 EDR + LE
  • WLAN 802.11ac
  • Fast roaming 802.11r supported
  • 528 MHz ARM processor
  • 3250 mAh PowerPrecision+ (retrievable, rechargeable Li-Ion)
  • USB On-The-Go ports (with optional strain relief)
  • Power Smart Print Technology - anticipates upcoming printing to optimize battery consumption and print speed
  • Direct thermal printing of barcodes, text and graphics
  • IP54 rated for protection against solid and liquid ingress

Technical Specifications

Memory
Standard Memory512 MB
Technical Information
Application/UsageMobile
Barcode Symbology SupportedInterleaved 2 of 5
ISBT-128
LOGMARS
Maxi Code
UPC-A
UPC-E
UPC-E with 2 or 5 Digit Extension
Code 49
Micro PDF-417
MSI
MSI PLESSEY
PDF417
Planet Code
Plessey
POSTNET
QR Code
Standard 2 of 5
TLC 39
UCC/EAN 128
2 and 5 Digits Add-on
2D
AZTEC
Codabar
Codabar (NW-7)
Codablock
Code 11
Code 128
Code 39
Code 93
Data Matrix
EAN-13
EAN-8
FIM
GS1 DataBar
Industrial 2 of 5
Maximum Print Width103.89 mm (4.09")
Recommended UseLabel/Receipt Print
Connectivity TechnologyWireless
FeaturesTear Bar
Rugged
Dust Resistant
Drop Resistant
Print Color CapabilityMonochrome
Maximum Print Length990.60 mm
Real Time ClockYes
Maximum Print Resolution (dpi)203
Fonts & Emulation
Language EmulationCPCL
ZPL
XML
Miscellaneous
Platform SupportedAndroid
iOS
PC
Network & Communication
BluetoothYes
Wireless LANYes
Near Field Communication (NFC)Yes
Physical Characteristics
Weight (Approximate)784.7 g
Height66 mm
Width154.9 mm
Depth157.5 mm
General Information
Product TypeDirect Thermal Printer
Manufacturer Part NumberZQ52BAW000A00
Manufacturer Website Addresshttp://www.zebra.com/ap/en.html
ManufacturerZebra Technologies Corporation
Product ModelZQ521
Product NameZQ521 Mobile Printer
Product SeriesZQ500
Brand NameZebra
Media Types & Handling
Media Thickness58.4 µm
Maximum Roll Diameter56.90 mm
Media TypeGap
Label
Linerless
Receipt
Tag
Black Mark
Media SensorBlack Mark Sensor
Gap Sensor
Maximum Label Width50.80 mm
