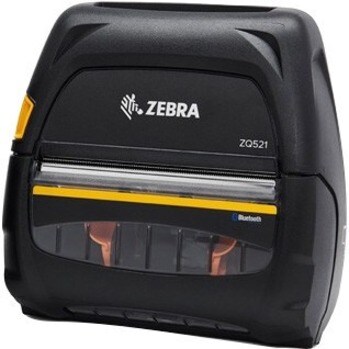

DT PRINTER ZQ521 4.45in/113MM ENG/TRD C
DT PRINTER ZQ521 4.45in/113MM ENG/TRD C
Product Overview
DT Printer ZQ521 4.45in/113mm Eng/Trd Ch/Korean fonts RFID Dual 802.11ac/Bluetooth 5.2 ready stnd battery APAC certs Group A ID/TW/KR/MY/AU/NZ/LK/IN
Exceptional durability and reliability for the toughest environments
Zebra's ZQ500™ Series just got tougher. The premium ZQ511™ and ZQ521™ printers - both available in RFID models - give you best-in-class, rugged mobile printing for applications in any industry. Experience ultimate durability. Engineered for tough, demanding indoor and outdoor conditions, these printers can withstand significant drops, tumbles, accidents and environmental extremes that are common in mobile workplaces. Additional features, enhanced durability and military-grade design mean this printer will work as hard as you do.
Tough. Reliable. Built to Endure.
The Most Rugged Printers on the Market
You need a mobile printer that can handle serious abuse. Designed and certified to meet MIL-STD 810G for drop and shock, and tumble tested per the IEC68-2-32 spec to handle 1300 tumbles from 3.3' (1M), the ZQ511 and ZQ521 printers can withstand more than the average mobile printer.
Protection from solid and liquid ingress is no problem with an IP54 rating right out of the box without the need for a protective case.
If this isn't enough to convince you that these are ultra-rugged mobile printers, we also offer an optional exoskeleton case that increases our standard drop testing from 6.6' to 10' and improves the IP rating to IP65.
Built to Last
New over-molding helps increase the longevity and keeps your ZQ500 Series looking good over the life of the printer.
Print it All: Receipts, RFID tags, Labels and Linerless
Optimized for on-demand receipt printing in 3" (72mm) and 4" (104mm) print widths, the ZQ511 and ZQ521 printers also print a variety of labels including UHF RFID tags for all your tracking needs. Zebra's comprehensive RFID portfolio is the only one to include mobile printers to help you reduce errors, and print and encode RFID labels on the go.
On-the-Go Power, Functionality and Premium Performance
Get All the Benefits of Linerless Media
Eliminate waste and improve your company's green initiative with linerless printing. Linerless media also allows your workforce to spend less time disposing waste and more time on the task at hand - improving your workforce productivity. And, since there are more labels on a roll, there are fewer rolls of media to carry and fewer media roll changes.
Optimize Your Printing Quality and Power
Consistent outstanding print quality and performance are key. New printhead and print mechanism, as well as new processor and added memory, deliver it. Keep your employees on task and on schedule with the ZQ500 Series' secondary Bluetooth communication channel. Send print jobs to the printer via one channel, while a second channel performs additional functions such as device management.
- Android, Apple iOS, Windows Mobile connectivity
- Bluetooth specification 4.1 EDR + LE
- WLAN 802.11ac
- Fast roaming 802.11r supported
- 528 MHz ARM processor
- 3250 mAh PowerPrecision+ (retrievable, rechargeable Li-Ion)
- USB On-The-Go ports (with optional strain relief)
- Power Smart Print Technology - anticipates upcoming printing to optimize battery consumption and print speed
- Direct thermal printing of barcodes, text and graphics
- IP54 rated for protection against solid and liquid ingress
Technical Specifications
USB | Yes |
Application/Usage | Mobile |
Barcode Symbology Supported | Industrial 2 of 5 |
UPC-E with EAN 2 or 5 Digit Extension | |
UPC-E | |
UPC-A | |
UCC/EAN 128 | |
TLC 39 | |
Standard 2 of 5 | |
2 and 5 Digits Add-on | |
2D | |
AZTEC | |
Codabar | |
Codabar (NW-7) | |
Codablock | |
Code 11 | |
Code 128 | |
Code 39 | |
Code 49 | |
Code 93 | |
Data Matrix | |
EAN-13 | |
EAN-8 | |
FIM | |
GS1 DataBar | |
Interleaved 2 of 5 | |
ISBT-128 | |
LOGMARS | |
Maxi Code | |
Micro PDF-417 | |
MSI | |
MSI PLESSEY | |
PDF-417 | |
Planet Code | |
Plessey | |
POSTNET | |
QR Code | |
Maximum Print Width | 103.89 mm (4.09") |
Recommended Use | Label/Receipt Print |
Connectivity Technology | Wireless |
Features | RFID Encoder |
Drop Resistant | |
Rugged | |
Shock Resistant | |
Mobile Device Printing | Yes |
Print Color Capability | Monochrome |
Maximum Print Length | 990.60 mm |
Real Time Clock | Yes |
Maximum Print Resolution (dpi) | 203 |
Standard Memory | 256 MB |
Display Screen | Yes |
Display Screen Type | LCD |
Language Emulation | CPCL |
ZPL | |
ZBI |
Platform Supported | PC |
iOS | |
Android |
Bluetooth | Yes |
Wireless LAN | Yes |
RFID | Yes |
Near Field Communication (NFC) | Yes |
Weight (Approximate) | 784.7 g |
Height | 66 mm |
Width | 154.9 mm |
Depth | 157.5 mm |
Product Type | Direct Thermal Printer |
Manufacturer Part Number | ZQ52-BAW030A-00 |
Manufacturer Website Address | http://www.zebra.com/ap/en.html |
Manufacturer | Zebra Technologies Corporation |
Product Model | ZQ521 |
Product Name | ZQ521 Direct Thermal Printer |
Product Series | ZQ500 |
Brand Name | Zebra |
Media Thickness | 139.7 µm |
Maximum Roll Diameter | 56.90 mm |
Media Type | RFID Label |
Receipt | |
Label | |
Linerless | |
Black Mark | |
Gap | |
Tag | |
Media Sensor | Black Mark Sensor |
Maximum Label Width | 113.03 mm |
