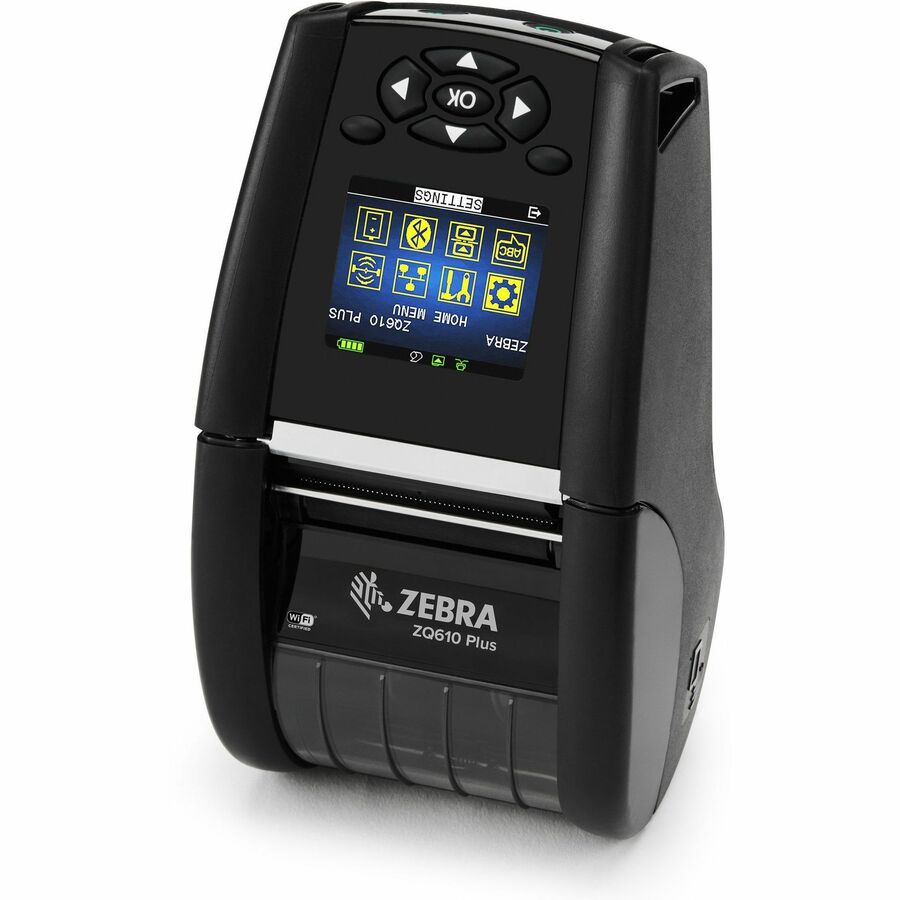

DT PRINTER ZQ610 PLUS 2"/48MM; ENGLISH/L
DT PRINTER ZQ610 PLUS 2"/48MM; ENGLISH/L
Product Overview
DT Printer ZQ610 Plus 2"/48mm; English/Latin, Trad Chinese, Korean fonts, Wi-Fi 6 Dual Radio 802.11AX / BT5.x, Linered platen, 0.75" core, Group A, Belt clip
Premium mobile label and receipt printers for maximum productivity
Want to improve inventory management and customer service in your store? With the ZQ600 Plus Series mobile printer, you can. The ZQ600 Plus Series takes Zebra's popular QLn platform and makes it even better-adding advanced technology and innovative design that drive productivity, ease-of-use and manageability to a new level. A large color display takes all the guesswork out of printer status. Advanced battery technology and more battery capacity, power every minute of the longest shift. The instant wake-up feature ensures the ZQ600 Plus Series never sleeps on the job. Your workers get the fast, dependable wireless connections and your IT department will find the ZQ600 Plus Series easier to integrate, manage, setup and secure thanks to Zebra's Link-OS® printer operating system and powerful Print DNA suite of applications, utilities and developer tools. ZQ600 Plus Series- the next evolution in the gold standard for mobile label and receipt printing.
Premium Features for Maximum Productivity | The Industry's First Wi-FiTM6 Mobile Printer
The ZQ600 Plus Series offers fast, dependable wireless connections for your inside-the-four-walls applications. Take advantage of your Wi-Fi 6/6E network upgrade and get best-in-class WPA3 security, lightning-fast speeds and enhanced roaming. For flexibility, choose between 802.11ax / Bluetooth® 5.3 or 802.11ac / Bluetooth 4.2 dual radio options, depending on your network environment.
Industry-Standard 802.11r Fast Roaming for Seamless Access
With support for 802.11r fast roaming technology, your workers can depend on a connection while they are on the move.
Instant Wake-Up Over Wi-Fi
This intelligent printer enters sleep mode when it is idle, and automatically wakes up the moment the user sends a print job. And the ZQ600 Plus Series' instant wake-up works over both Wi-Fi and Bluetooth.
Large Color Display Makes Configuration and Operation a Snap
The ZQ600 Plus Series provides a large display, user-friendly interface and easily customized menu. The ZQ600 Plus Series is based on Zebra's Link-OS menu system to deliver a common user experience across other Zebra Link-OS mobile, desktop and industrial printers.
Business Tough-Built for All-Day Every Day Enterprise Use
While the ZQ600 Plus Series is lightweight and comfortable to wear all shift long, it is loaded with features that give it long-lasting durability, including over-molding, a tempered-glass display and seamless one-piece design. The high-grade resin is one of the toughest plastics available for greater impact resistance.
Unsurpassed Battery Power Management | Do More on a Single Charge
With the ZQ600 Plus Series' high-capacity battery, you can be sure that every worker has plenty of power for every shift.Plus Power Smart Print Technology™, Zebra's patented technology, maximizes efficiency by delivering the exact amount of power required for the highest quality printing, saving an estimated 20 to 30 percent of battery power.
Extraordinary Battery Management Capabilities
The ZQ600 Plus Series' PowerPrecision+ battery delivers the ultimate in battery power and management. A wealth of easily accessible battery metrics makes it easy to identify aging batteries before they impact productivity.
- Apple® iOS, Android™ and Windows® Mobile connectivity
- Direct thermal printing of barcodes, text and graphics
- CPCL, EPL™ and ZPL® programming languages
- 512 MB Flash supports downloadable programs, receipt formats, fonts and graphics (128 MB available for user storage)
- ZQ620 Plus and ZQ610 Plus: 3250 mAh (nominal) 23.4 Wh removable, rechargeable PowerPrecision+ Li-Ion battery
- ZQ630 Plus: 6600 mAh (nominal) 47.5 Wh removable, rechargeable PowerPrecision + Li-Ion battery
- Built-in battery charger
- Belt clip for unobtrusive and convenient printing (not compatible with extended capacity battery)
- Black mark and gap media sensing using fixed center position sensors
- Easy-to-use peel and present mode
Technical Specifications
USB Host | Yes |
Application/Usage | Mobile |
Warehouse | |
Transportation & Logistic | |
Manufacturing | |
Healthcare | |
Retail | |
Barcode Symbology Supported | UPC-E |
2 and 5 Digits Add-on | |
2D | |
AZTEC | |
UPC-A | |
TLC 39 | |
QR Code | |
POSTNET | |
Plessey | |
PDF417 | |
MSI PLESSEY | |
MSI | |
Micro PDF-417 | |
Maxi Code | |
Interleaved 2 of 5 | |
GS1 DataBar (RSS) | |
FIM Postnet | |
EAN-8 | |
EAN-13 | |
Data Matrix | |
Code 93 | |
Code 39 | |
Code 128 | |
Codabar (NW-7) | |
UCC/EAN 128 | |
Maximum Print Width | 48 mm (1.89") |
Recommended Use | Label/Receipt Print |
Features | Belt Clip |
Water Resistant | |
Peel Facility | Yes |
Print Color Capability | Monochrome |
Maximum Print Length | 813 mm |
Character Sets | Universal Font Scaling Technology (UFST) |
English | |
Agfa Monotype | |
Ingress Protection (IP) Rating | IP54 |
Maximum Print Resolution (dpi) | 203 |
Cutter | Yes |
Cutter Type | Tear Bar |
Flash Memory | 512 MB |
Standard Memory | 256 MB |
Battery Chemistry | Lithium Ion (Li-Ion) |
Battery Capacity | 3250 mAh |
Battery Included | Yes |
Display Screen | Yes |
Screen Size | 5.1 cm (2") |
Display Screen Type | LCD |
Language Emulation | CPCL |
ZPL | |
XML | |
EPL |
Platform Supported | PC |
SPARC | |
Android | |
Energy Star | Yes |
Bluetooth | Yes |
Ethernet | Yes |
Wireless LAN | Yes |
Ethernet Technology | Fast Ethernet |
Weight (Approximate) | 600 g |
Height | 72.4 mm |
Width | 91.4 mm |
Depth | 170.9 mm |
Product Type | Direct Thermal Printer |
Manufacturer Part Number | ZQ61AAXAA0400 |
Manufacturer Website Address | http://www.zebra.com/ap/en.html |
Manufacturer | Zebra Technologies Corporation |
Product Model | ZQ610 Plus |
Product Name | ZQ610 Plus Direct Thermal Printer |
Product Series | ZQ600 Plus |
Brand Name | Zebra |
Media Thickness | 165.1 µm |
Maximum Roll Diameter | 34.90 mm |
Media Type | Receipt |
Linered Label | |
Label | |
Media Sensor | Label Present Sensor |
Black Mark Sensor | |
Gap Sensor | |
Maximum Label Width | 55.40 mm |
