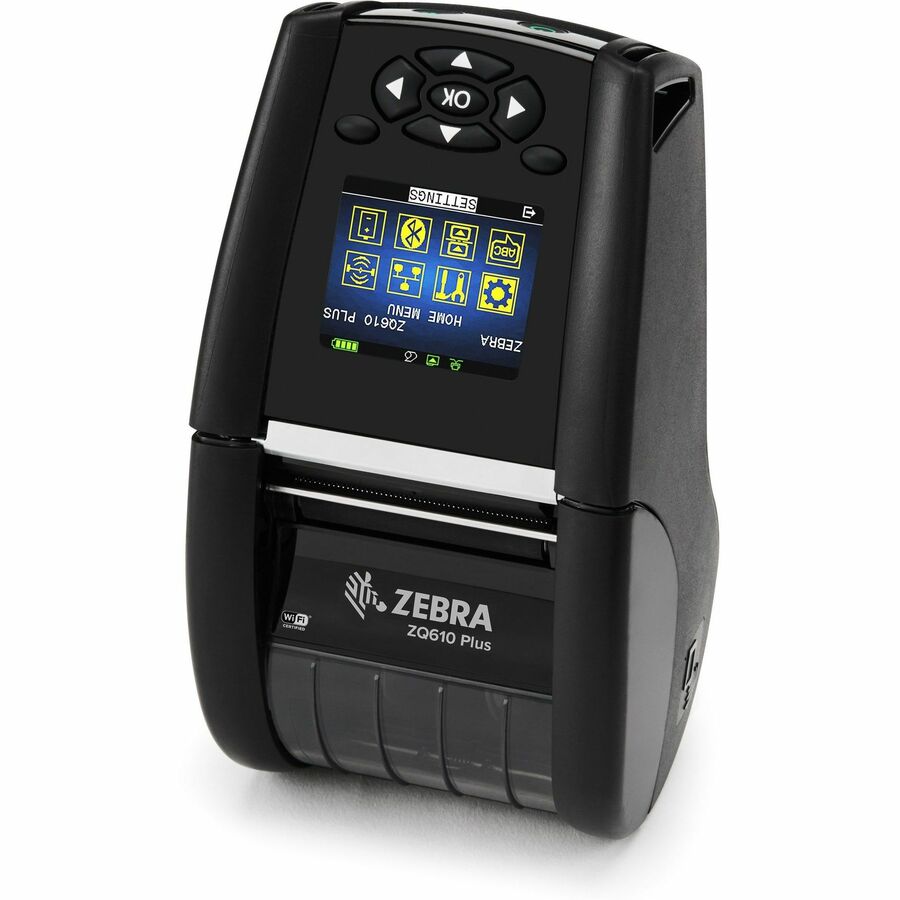

DT PRINTER ZQ610 PLUS 2"/48MM HEALTHCARE

DT PRINTER ZQ610 PLUS 2"/48MM HEALTHCARE

DT PRINTER ZQ610 PLUS 2"/48MM HEALTHCARE

Product Overview

DT Printer ZQ610 Plus 2"/48mm Healthcare; English, Trad Chinese, Korean fonts, Wi-Fi 6 Dual Radio 802.11AX / BT5.x, Linered platen, 0.75" core, Group A, Belt clip

Premium mobile label and receipt printers for maximum productivity

Want to improve inventory management and customer service in your store? With the ZQ600 Plus Series mobile printer, you can. The ZQ600 Plus Series takes Zebra's popular QLn platform and makes it even better-adding advanced technology and innovative design that drive productivity, ease-of-use and manageability to a new level. A large color display takes all the guesswork out of printer status. Advanced battery technology and more battery capacity, power every minute of the longest shift. The instant wake-up feature ensures the ZQ600 Plus Series never sleeps on the job. Your workers get the fast, dependable wireless connections and your IT department will find the ZQ600 Plus Series easier to integrate, manage, setup and secure thanks to Zebra's Link-OS® printer operating system and powerful Print DNA suite of applications, utilities and developer tools. ZQ600 Plus Series- the next evolution in the gold standard for mobile label and receipt printing.

Premium Features for Maximum Productivity | The Industry's First Wi-FiTM6 Mobile Printer

The ZQ600 Plus Series offers fast, dependable wireless connections for your inside-the-four-walls applications. Take advantage of your Wi-Fi 6/6E network upgrade and get best-in-class WPA3 security, lightning-fast speeds and enhanced roaming. For flexibility, choose between 802.11ax / Bluetooth® 5.3 or 802.11ac / Bluetooth 4.2 dual radio options, depending on your network environment.

Industry-Standard 802.11r Fast Roaming for Seamless Access

With support for 802.11r fast roaming technology, your workers can depend on a connection while they are on the move.

Instant Wake-Up Over Wi-Fi

This intelligent printer enters sleep mode when it is idle, and automatically wakes up the moment the user sends a print job. And the ZQ600 Plus Series' instant wake-up works over both Wi-Fi and Bluetooth.

Large Color Display Makes Configuration and Operation a Snap

The ZQ600 Plus Series provides a large display, user-friendly interface and easily customized menu. The ZQ600 Plus Series is based on Zebra's Link-OS menu system to deliver a common user experience across other Zebra Link-OS mobile, desktop and industrial printers.

Business Tough-Built for All-Day Every Day Enterprise Use

While the ZQ600 Plus Series is lightweight and comfortable to wear all shift long, it is loaded with features that give it long-lasting durability, including over-molding, a tempered-glass display and seamless one-piece design. The high-grade resin is one of the toughest plastics available for greater impact resistance.

Unsurpassed Battery Power Management | Do More on a Single Charge

With the ZQ600 Plus Series' high-capacity battery, you can be sure that every worker has plenty of power for every shift.Plus Power Smart Print Technology™, Zebra's patented technology, maximizes efficiency by delivering the exact amount of power required for the highest quality printing, saving an estimated 20 to 30 percent of battery power.

Extraordinary Battery Management Capabilities

The ZQ600 Plus Series' PowerPrecision+ battery delivers the ultimate in battery power and management. A wealth of easily accessible battery metrics makes it easy to identify aging batteries before they impact productivity.

  • Apple® iOS, Android™ and Windows® Mobile connectivity
  • Direct thermal printing of barcodes, text and graphics
  • CPCL, EPL™ and ZPL® programming languages
  • 512 MB Flash supports downloadable programs, receipt formats, fonts and graphics (128 MB available for user storage)
  • ZQ620 Plus and ZQ610 Plus: 3250 mAh (nominal) 23.4 Wh removable, rechargeable PowerPrecision+ Li-Ion battery
  • ZQ630 Plus: 6600 mAh (nominal) 47.5 Wh removable, rechargeable PowerPrecision + Li-Ion battery
  • Built-in battery charger
  • Belt clip for unobtrusive and convenient printing (not compatible with extended capacity battery)
  • Black mark and gap media sensing using fixed center position sensors
  • Easy-to-use peel and present mode

Technical Specifications

Interfaces/Ports
USB HostYes
Technical Information
Application/UsageHealthcare
Manufacturing
Mobile
Retail
Transportation & Logistic
Warehouse
Barcode Symbology SupportedCode 93
FIM Postnet
UPC-E
MSI
UPC-A
UCC/EAN 128
TLC 39
QR Code
POSTNET
Plessey
PDF417
MSI PLESSEY
Micro PDF-417
2 and 5 Digits Add-on
2D
AZTEC
Codabar (NW-7)
Code 128
Code 39
Data Matrix
EAN-13
EAN-8
GS1 DataBar (RSS)
Interleaved 2 of 5
Maxi Code
Maximum Print Width48 mm (1.89")
Recommended UseLabel/Receipt Print
FeaturesWater Resistant
Belt Clip
Peel FacilityYes
Print Color CapabilityMonochrome
Maximum Print Length813 mm
Character SetsEnglish
Universal Font Scaling Technology (UFST)
Agfa Monotype
Ingress Protection (IP) RatingIP54
Maximum Print Resolution (dpi)203
Cutter
CutterYes
Cutter TypeTear Bar
Memory
Flash Memory512 MB
Standard Memory256 MB
Battery Information
Battery ChemistryLithium Ion (Li-Ion)
Battery Capacity3250 mAh
Battery IncludedYes
Display & Graphics
Display ScreenYes
Screen Size5.1 cm (2")
Display Screen TypeLCD
Fonts & Emulation
Language EmulationXML
ZPL
EPL
CPCL
Miscellaneous
Platform SupportedSPARC
PC
Android
Energy StarYes
Network & Communication
BluetoothYes
EthernetYes
Wireless LANYes
Ethernet TechnologyFast Ethernet
Physical Characteristics
Weight (Approximate)600 g
Height72.4 mm
Width91.4 mm
Depth170.9 mm
General Information
Product TypeDirect Thermal Printer
Manufacturer Part NumberZQ61HAXAA0400
Manufacturer Website Addresshttp://www.zebra.com/ap/en.html
ManufacturerZebra Technologies Corporation
Product ModelZQ610 Plus
Product NameZQ610 Plus Direct Thermal Printer
Product SeriesZQ600 Plus
Brand NameZebra
Media Types & Handling
Media Thickness165.1 µm
Maximum Roll Diameter34.90 mm
Media TypeLabel
Linered Label
Receipt
Media SensorBlack Mark Sensor
Gap Sensor
Label Present Sensor
Maximum Label Width55.40 mm
