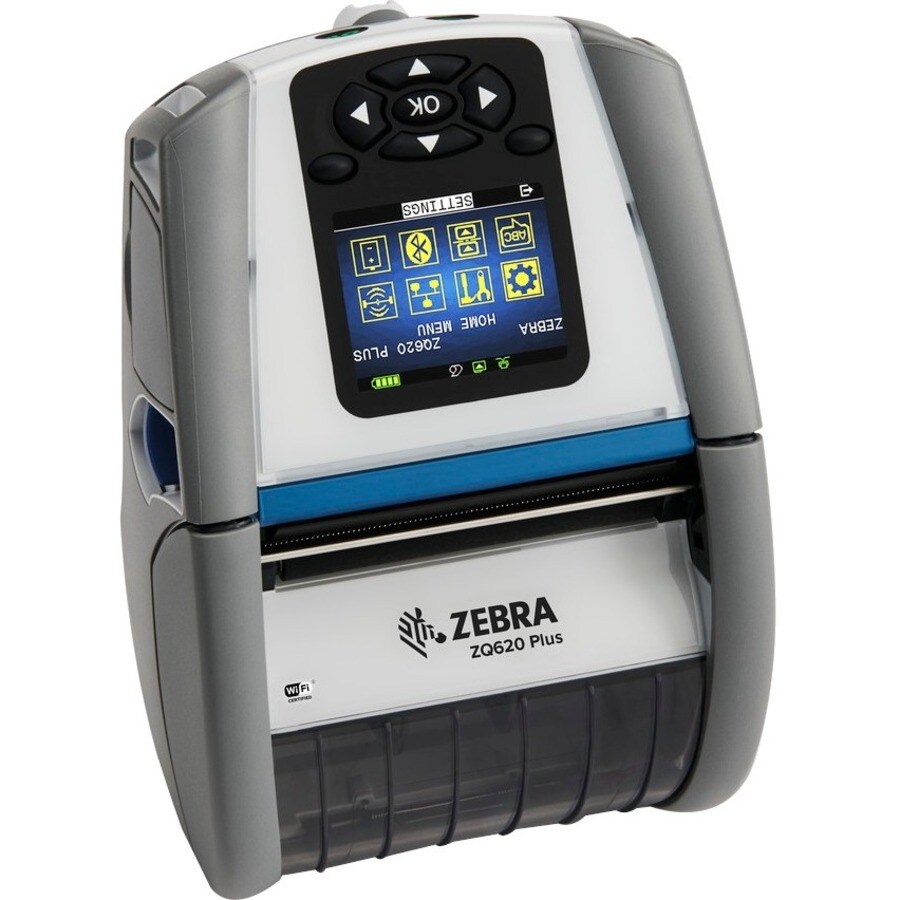

Product Overview

DT Printer ZQ620 Plus 3in/72mm Healthcare English Trad Chinese Korean fonts Dual 802.11AC / BT4.x Linered platen 0.75in core Group A Belt clip

Easily reduce the risk of errors in specimen collection with premium mobile printing at the point of care

Want to improve specimen labeling accuracy, staff productivity and patient safety? With the ZQ600/ZQ600 Plus Healthcare Series, you can. The ZQ600/ZQ600 Plus takes Zebra's popular QLn platform and makes it even better-adding advanced technology and innovative design that drive productivity, ease-of-use and manageability to a new level. Designed specifically for healthcare, these compact printers are built to withstand constant disinfecting. The color display takes all the guesswork out of printer status. Advanced battery technology powers every minute of the longest shift. The ZQ600/ZQ600 Plus offers the fastest, most dependable wireless connections inside the four walls and your IT department will find the ZQ600/ZQ600 Plus easier to integrate, manage and secure. The ZQ600 Plus Series delivers the same features and specifications as the ZQ600 Series, using redesigned electronics for long-term product continuity and availability. The ZQ600 Plus printers require new, different firmware and drivers.

The Latest Wireless Connections for Fast and Secure Printing

The ZQ600/ZQ600 Plus Series offers the fastest, most dependable wireless connections inside the four walls. With support for 802.11ac Wi-Fi and its latest security protocols, plus Bluetooth® Classic and Low Energy (BLE), healthcare staff can count on blazing fast and secure connections.

Industry-Standard 802.11r Fast Roaming for Seamless Access

Support for 802.11r fast roaming technology delivers the dependable wireless connection your on-the-move staff needs.

Instant Wake-Up Over Wi-Fi

Every second counts in the mission-critical world of healthcare- that's why the ZQ600/ZQ600 Plus offers instant wake on Wi-Fi. This intelligent printer enters sleep mode when it is idle, and automatically wakes up the moment a user sends a print job, delivering instant availability-along with maximum battery cycle time. And the ZQ600/ZQ600 Plus' instant wake-up works over both Wi-Fi and Bluetooth.

Large Color Display Makes Configuration and Operation a Snap

It's easy to set up and maintain the ZQ600/ZQ600 Plus Series with its large display, user-friendly interface and easily customized menu. The display changes color when the printer is paused or in an error state, such as out of media or latch open, so users instantly know what the printer needs to stay up and running. And since the ZQ600/ZQ600 Plus Series is based on Zebra's Link-OS menu system, you'll get a common UI and user experience across other Zebra Link-OS mobile, desktop and industrial printers to lower the learning curve.

Business Tough-Built for All-Day Every Day Use

While the ZQ600/ZQ600 Plus is lightweight and comfortable to wear all shift long, it is loaded with features that give it long-lasting durability, including over-molding, a tempered-glass display and seamless one-piece design. The high-grade resin is one of the toughest plastics available for greater impact resistance. And multiple mechanical design improvements further increase printer robustness and uptime.
  • Apple® iOS, Android™ and Windows® Mobile connectivity
  • Direct thermal printing of barcodes, text and graphics
  • CPCL, EPL™ and ZPL® programming languages
  • 512 MB Flash supports downloadable programs, receipt formats, fonts and graphics (128 MB available for user storage)
  • Built-in battery charger
  • Belt clip for unobtrusive and convenient printing
  • Black mark and gap media sensing using fixed center position sensors
  • Easy-to-use peel and present mode
  • Label present sensor for issuing labels one at a time
  • Tear bar for easy media dispensing

Technical Specifications

Battery Information
Battery Capacity3250 mAh
Technical Information
Application/UsageDesktop
Mobile
Industrial
Barcode Symbology SupportedMSI PLESSEY
Micro PDF-417
Maxi Code
Interleaved 2 of 5
GS1 DataBar
FIM
EAN-8
EAN-13
2 and 5 Digits Add-on
PDF417
Data Matrix
Code 93
Code 39
Code 128
Codabar (NW-7)
AZTEC
UPC-A
UPC E with 2 and 5 add on
UCC/EAN 128
TLC 39
QR Code
POSTNET
Maximum Print Width72 mm (2.83")
Recommended UseLabel/Receipt Print
FeaturesWater Resistant
Shoulder Strap
Dust Resistant
Belt Clip
Mobile Device PrintingYes
Print Color CapabilityMonochrome
Maximum Print Length813 mm
Character SetsAgfa Monotype
Universal Font Scaling Technology (UFST)
Optional ConnectivityEthernet
Serial (RS-232)
USB
Ingress Protection (IP) RatingIP54
Maximum Print Resolution (dpi)203
Display & Graphics
Display ScreenYes
Memory
Standard Memory256 MB
Network & Communication
BluetoothYes
Wireless LANYes
Near Field Communication (NFC)Yes
Fonts & Emulation
Language EmulationZPL
ZBI 2.0
EPL
CPCL
Miscellaneous
Platform SupportedPC
iOS
Android
Certifications & Standards

    Emissions:

    • FCC Part 15
    • Subpart B
    • EN55022 Class-B
    • EN60950
    • EN55024
    • VCCI class B


    Susceptibility:

    • EN55024
    • EN61000-4-2
    • EN61000-4-3
    • EN61000-4-4
    • EN61000-4-5


    Safety:

    • CE
    • TUV
    • CSA
Physical Characteristics
Weight (Approximate)730 g
Height77 mm
Width117.9 mm
Depth173.7 mm
General Information
Product TypeDirect Thermal Printer
Manufacturer Part NumberZQ62-HAWAA04-00
Manufacturer Website Addresshttp://www.zebra.com/ap/en.html
ManufacturerZebra Technologies Corporation
Product ModelZQ620 Plus-HC
Product NameZQ620 Plus-HC Direct Thermal Printer
Product SeriesZQ600
Brand NameZebra
Media Types & Handling
Media Thickness165.1 µm
Maximum Roll Diameter66.04 mm
Media TypeBlack Bar
Black Mark
Die-cut Label
Gap
Label
Linered Media
Receipt
Tag
Media SensorBlack Mark Sensor
Gap Sensor
Maximum Label Width79.38 mm
Maximum Label Length812.80 mm

Price Trend

Current Price
AUD 1,995.39
