Product Overview

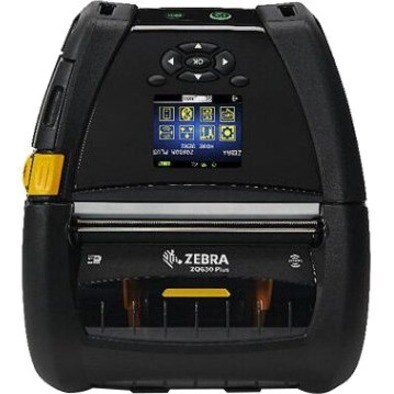

DT Printer ZQ630 Plus RFID; English, Trad Chinese, Korean fonts, Wi-Fi 6 Dual Radio 802.11AX / BT5.x, Linered platen, 0.75" core, Group A, Belt clip
Premium mobile printing and RFID capabilities for maximum productivity
Always on the edge of innovation, Zebra offers premium RFID mobile printers to give your workers a leading advantage. The ZQ630 Plus RFID rounds out Zebra's ZQ600 Plus Series printers with advanced technology and innovative design that drive productivity, ease-of-use and manageability to a new level. Save time, reduce errors, print and encode RFID labels and tags on the spot with ease. A large color display takes all the guesswork out of printer status. Advanced battery technology and more battery capacity-6600 mAh-power every minute of the longest shift. The instant wake-up feature on Wi-Fi™ or Bluetooth® ensures the ZQ630 Plus RFID never sleeps on the job. And, the ZQ630 Plus RFID is easier to integrate, manage, setup and secure, thanks to Zebra's Link-OS® printer operating system and powerful Print DNA™ suite of applications, utilities and developer tools.
Premium Features for Maximum Productivity | RFID + Mobility Made Easy
Leading the industry in RFID mobility, Zebra was the first to introduce RFID mobile printers in the market.. The innovative ZQ630 Plus RFID printer gives your workers the flexibility to print and encode RFID labels with ease. Compatible with all current Zebra RFID technology, including tags and encoding schemes, it's easy to extend RFID to a mobile printer.
RFID setup is simple with automatic calibration features that eliminate complex RFID placement guidelines. Insert the RFID media into the ZQ630 Plus and RFID calibrate only once-no need to recalibrate with same-type media changes.
The Industry's First Wi-Fi 6 Mobile Printer
The ZQ630 Plus RFID offers fast, dependable wireless connections for your inside-the-four-walls applications. Take advantage of your Wi-Fi 6/6E network upgrade and get best-in-class WPA3 security, lightning-fast speeds and enhanced roaming. For flexibility, choose between 802.11ax/Bluetooth 5.3 or 802.11ac/Bluetooth 4.2 dual radio options, depending on your network environment.
Industry-Standard 802.11r Fast Roaming for Seamless Access
With support for 802.11r fast roaming technology, your workers can depend on a connection while they are on the move.
Business Tough-Built for All-Day Every Day Enterprise Use
While the ZQ630 Plus RFID is lightweight and comfortable to wear all shift long, it is loaded with features that give it long-lasting durability, including over-molding, a tempered-glass display and seamless one-piece design. The high-grade resin is one of the toughest plastics available for greater impact resistance.
Superior Battery Power and Power Management | Do More on a Single Charge
With the ZQ630 Plus RFID's high-capacity battery, you can be sure that every worker has plenty of power for every shift.
Plus Power Smart Print Technology™, Zebra's patented technology, maximizes efficiency by delivering the exact amount of power required for the highest quality printing, saving an estimated 20 to 30 percent of battery power.
Extraordinary Battery Management Capabilities
The ZQ630 Plus RFID's PowerPrecision+ battery delivers the ultimate in battery power and management. A wealth of easily accessible battery metrics makes it easy to identify aging batteries before they impact productivity.
- Apple® iOS, Android™ and Windows® Mobile connectivity
- Direct thermal printing of barcodes, text and graphics
- CPCL, EPL™ and ZPL® programming languages
- 512 MB Flash supports downloadable programs, receipt formats, fonts and graphics (128 MB available for user storage)
- 6600 mAh (nominal) 47.5 Wh removable, rechargeable PowerPrecision + Li-Ion battery
- Built-in battery charger
- Belt clip for unobtrusive and convenient printing Black mark sensing using fixed center position sensors
- Easy-to-use peel and present mode Label present sensor for issuing labels one at a time
- Tear bar for easy media dispensing
- Center-loading media locking for variable roll widths
- "Clamshell" design for easy media loading
Technical Specifications
Display Screen | Yes |
Screen Size | 10.2 cm (4") |
Application/Usage | Mobile |
Manufacturing | |
Healthcare | |
Transportation & Logistic | |
Warehouse | |
Retail | |
Barcode Symbology Supported | EAN-8 |
FIM | |
FIM Postnet | |
GS1 DataBar (RSS) | |
Interleaved 2 of 5 | |
Maxi Code | |
Micro PDF-417 | |
TLC 39 | |
UCC/EAN 128 | |
UPC-A | |
UPC-E | |
EAN-13 | |
QR Code | |
POSTNET | |
Plessey | |
PDF417 | |
MSI | |
Code 93 | |
Data Matrix | |
Code 39 | |
Code 128 | |
Codabar (NW-7) | |
AZTEC | |
2D | |
2 and 5 Digits Add-on | |
Maximum Print Width | 104 mm (4.09") |
Recommended Use | Label Print |
Features | Belt Clip |
Dust Resistant | |
Water Resistant | |
Mobile Device Printing | Yes |
Print Color Capability | Monochrome |
Maximum Print Length | 813 mm |
Character Sets | Agfa Monotype |
Korean | |
Universal Font Scaling Technology (UFST) | |
Thai | |
Ingress Protection (IP) Rating | IP54 |
Maximum Print Resolution (dpi) | 203 |
USB | Yes |
USB Host | Yes |
Flash Memory | 512 MB |
Standard Memory | 256 MB |
Battery Chemistry | Lithium Ion (Li-Ion) |
Battery Capacity | 6600 mAh |
Battery Included | Yes |
Platform Supported | Android |
iOS | |
Energy Star | Yes |
Language Emulation | CPCL |
ZPL | |
XML | |
EPL |
Weight (Approximate) | 1.11 kg |
Height | 82.5 mm |
Width | 165 mm |
Depth | 187 mm |
Bluetooth | Yes |
Ethernet | Yes |
Wireless LAN | Yes |
Ethernet Technology | Fast Ethernet |
RFID | Yes |
Network Ready | Yes |
Near Field Communication (NFC) | Yes |
Product Type | Direct Thermal Printer |
Manufacturer Part Number | ZQ63RAXAA0400 |
Manufacturer Website Address | http://www.zebra.com/ap/en.html |
Manufacturer | Zebra Technologies Corporation |
Product Model | ZQ630 Plus |
Product Name | ZQ630 Plus Direct Thermal Printer |
Product Series | ZQ600 |
Brand Name | Zebra |
Media Thickness | 190.5 µm |
Maximum Roll Diameter | 66 mm |
Media Type | Black Mark |
Receipt | |
Tag | |
Black Bar | |
Label | |
Die-cut Label | |
Linered Media | |
Media Sensor | Gap Sensor |
Black Mark Sensor | |
Label Present Sensor | |
Maximum Label Width | 112 mm |
Maximum Label Length | 813 mm |
