Product Overview

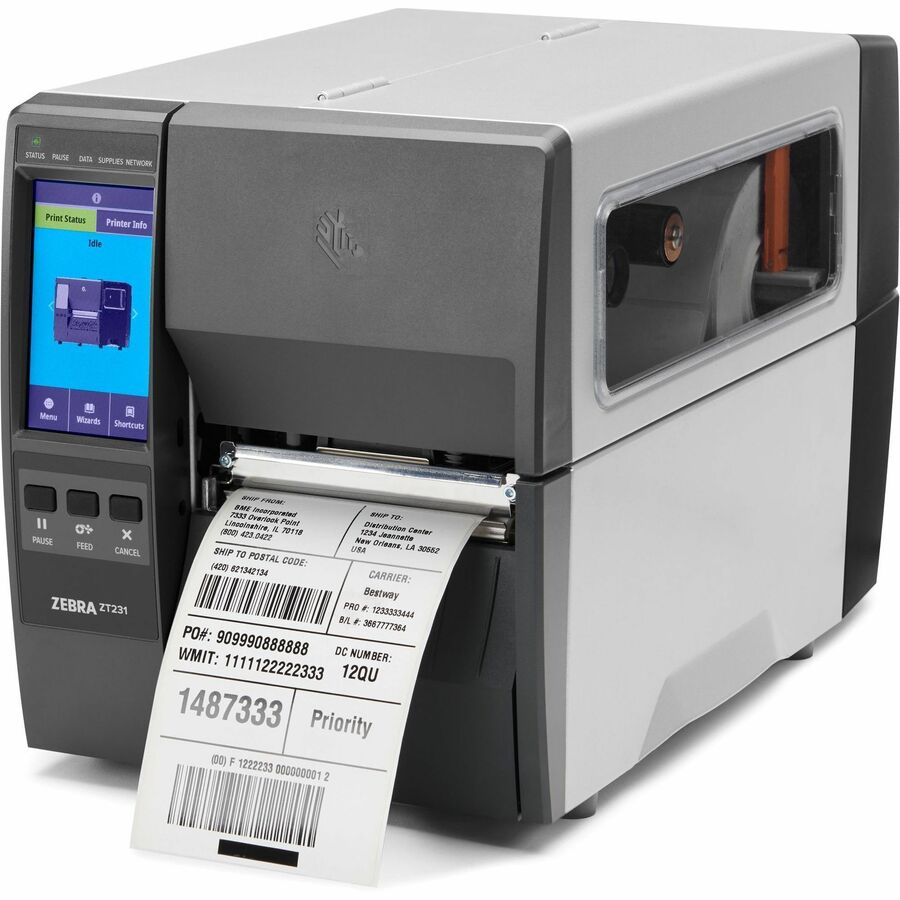

TT Printer ZT231R 4 203 dpi Thermal Transfer Tear UK/AU/JP/EU Cords USB Serial Ethernet BTLE USB Host RFID Global except US/Canada/Japan EZPL

Demands are rising and timelines are shrinking. Do you have the printing capabilities to keep up - without interruption? The ZT231 delivers the winning combination of the right features at the right price, along with the long-lasting quality you expect from Zebra. Fast print speeds, high-resolution print quality, large color touchscreen, future-forward design and more - all in one space-saving footprint. Plus, add optional capabilities like RFID*, wireless connectivity and media handling features when you need them. But that's not all. Get built-in intelligence to make your work easier, and unmatched security so nothing stands in your way. That's how Zebra defines value.

GET MORE VALUE WITH ZEBRA | Simple Operation with Smart Features

Reduce training time with the ZT231's easy-to-use 4.3" full-color touchscreen. See status at a glance, access wizards and helpful how-to videos and make changes with the touch of a finger or gloved hand. Seamlessly integrate the ZT231 into your existing network as it is backwards compatible and features Printer Emulations to replace other brands without having to change label formats or rewrite code.

Make It Easy for Your IT Team

Take advantage of Zebra's robust, ever growing Print DNA software suite for added capabilities. Easily configure, troubleshoot and manage your printers onsite or remotely via a web-based dashboard. Compare your printer security settings against best practices and adjust to match your preferences, while protecting your data from vulnerabilities.

The Smart Choice Now and Later

The benefits of buying a ZT231 don't end at the point of purchase. Expand your printer's capabilities with field-installable upgrades when you need them. Add options such as a cutter or peeler, wireless connectivity or even UHF RFID* encoding.

BUILT TO PERFORM. ENGINEERED TO ENDURE. | Don't Compromise on Quality

With a durable metal frame, the ZT231 is ideal for light industrial environments. Print crisp text and barcodes with optional 300 dpi resolution. Advance your label throughput with industry-leading print speeds up to 12 ips at 203 dpi. Be confident knowing you're backed by Zebra, the #1 leader in barcode printing.

  • Print methods: direct-thermal or thermal-transfer
  • Construction: metal frame and metal enclosures
  • Bi-fold media door with large clear window
  • Side-loading supplies path for simplified media and ribbon loading
  • Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
  • Three-color LEDs for quick printer status
  • 4.3" color resistive touch screen with intuitive menu for quick operation and settings
  • Communications: USB 2.0, RS-232 Serial port, 10/100 Ethernet, and USB Host
  • ENERGY STAR® certified
  • Bluetooth Low Energy (BTLE) technology for enhanced location precision

Technical Specifications

Memory
Standard Memory256 MB
Cutter
CutterYes
Cutter TypeGuillotine
Power Description
Frequency50 Hz
60 Hz
Technical Information
Application/UsageIndustrial
Desktop
Barcode Symbology SupportedEAN-8
POSTNET
Plessey
Planet Code
PDF417
AZTEC
Codabar
Codablock
Code 11
Code 128 (A/B/C)
RSS Composite
RSS-14
Standard 2 of 5
TLC 39
UCC Case Codes
Code 39C
Code 49
Code 93
Data Matrix
EAN-13
QR Code
Industrial 2 of 5
Interleaved 2 of 5
UPC-A
UPC-A with EAN 2 or 5 Digit Extension
UPC-E
ISBT-128
LOGMARS
Maxi Code
Micro PDF-417
MSI
Maximum Print Width104 mm (4.09")
Recommended UseLabel Print
FeaturesLiner Take Up Spindle
Peel FacilityYes
Print Color CapabilityMonochrome
Maximum Print Length3.99 m
Real Time ClockYes
Maximum Print Resolution (dpi)203
Display & Graphics
Display ScreenYes
Screen Size10.9 cm (4.3")
TouchscreenYes
Display Screen TypeLED
Interfaces/Ports
USBYes
Serial PortYes
USB StandardUSB 2.0
USB HostYes
Physical Characteristics
Weight (Approximate)9.07 kg
Height279.4 mm
Width241.3 mm
Depth431.8 mm
Miscellaneous
Platform SupportedPC
Certifications & Standards

IEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus, CE Marking, UKCA, VCCI, RCM, S- Mark, CCC, CU EAC, BSMI, KCC, & BIS

Energy StarYes
Power Cable LocalizationUK
EU
Network & Communication
BluetoothYes
EthernetYes
Ethernet TechnologyEthernet
RFIDYes
Near Field Communication (NFC)Yes
Fonts & Emulation
Language EmulationZBI 2.0
ZPL
EZPL
EPL
EPL2
ZPL II
General Information
Product TypeThermal Transfer Printer
Manufacturer Part NumberZT23142T0P00CFZ
Manufacturer Website Addresshttp://www.zebra.com/ap/en.html
ManufacturerZebra Technologies Corporation
Product ModelZT231R
Product NameZT231R Industrial Printer
Brand NameZebra
Media Types & Handling
Maximum Roll Diameter203 mm
Media TypeContinuous Label
Notch
Label
Die-cut Label
Black Mark
Media SensorTransmissive Media Sensor
Reflective Media Sensor
Maximum Label Width114 mm

Price Trend

Current Price
AUD 3,952.90
