Product Overview

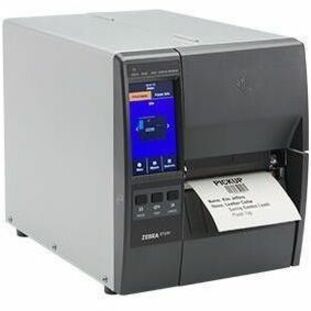

TT Printer ZT231 4 300 dpi Thermal Transfer Peel with Liner Takeup UK/AU/JP/EU Cords USB Serial Ethernet BTLE USB Host EZPL
SMART FEATURES. SMALL INVESTMENT. BIG PAYOFF.
Demands are rising and timelines are shrinking. Do you have the printing capabilities to keep up - without interruption The ZT231 delivers the winning combination of the right features at the right price, along with the long-lasting quality you expect from Zebra. Fast print speeds, high-resolution print quality, large color touchscreen, future-forward design and more - all in one space-saving footprint. Plus, add optional capabilities like RFID, wireless connectivity and media handling features when you need them. But that's not all. Get built-in intelligence to make your work easier, and unmatched security so nothing stands in your way. That's how Zebra defines value.
GET MORE VALUE WITH ZEBRA | Simple Operation with Smart Features
Reduce training time with the ZT231's easy-to-use 4.3" full-color touchscreen. See status at a glance, access wizards and helpful how-to videos and make changes with the touch of a finger or gloved hand. Seamlessly integrate the ZT231 into your existing network as it is backwards compatible and features Printer Emulations to replace other brands without having to change label formats or rewrite code.
Make It Easy for Your IT Team
Take advantage of Zebra's robust, ever growing Print DNATM software suite for added capabilities. Easily configure, troubleshoot and manage your printers onsite or remotely via a web-based dashboard. Compare your printer security settings against best practices and adjust to match your preferences, while protecting your data from vulnerabilities.
The Smart Choice Now and Later
The benefits of buying a ZT231 don't end at the point of purchase. Expand your printer's capabilities with field-installable upgrades when you need them. Add options such as a cutter or peeler, wireless connectivity or even UHF RFID encoding.
BUILT TO PERFORM. ENGINEERED TO ENDURE. | Don't Compromise on Quality
With a durable metal frame, the ZT231 is ideal for light industrial environments. Print crisp text and barcodes with optional 300 dpi resolution. Advance your label throughput with industry-leading print speeds up to 12 ips at 203 dpi. Be confident knowing you're backed by Zebra, the #1 leader in barcode printing.
Get More Done with Greater Visibility
The ZT231 includes an all-new architecture to process more jobs at once and evolve with emerging technologies. Onboard analytics and printhead element out detection help you plan maintenance in advance. And, the easy tool-less platen and print head removal makes maintenance easy.
Small Footprint, Big Access
To help you make the most of your workspace, we've engineered the ZT231 with a space-saving, compact design and bi-fold door that reduces the height needed to open your printer. Take the trouble out of media loading with an intuitive design and color-coded cues. Adjustable sensors offer greater media flexibility and the large ribbon roll capacity lets you change media less frequently.
Connect Your Way
Take advantage of a variety of standard connectivity options including USB, Serial, Ethernet and USB Host. Tap to pair and print with compatible mobile devices with the Print Touch tag (NFC). Add a second Ethernet port, 802.11ac or an Applicator port.
Get RFID Without Complication
Incorporate UHF RFID printing and encoding for greater visibility and tracking. Get greater media flexibility and simple RFID calibration with Zebra's adaptive encoding technology that eliminates complex placement guidelines.
- Print methods: direct-thermal or thermal-transfer
- Construction: metal frame and metal enclosures
- Bi-fold media door with large clear window
- Side-loading supplies path for simplified media and ribbon loading
- Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
- Three-color LEDs for quick printer status
- 4.3" color resistive touch screen with intuitive menu for quick operation and settings
- Communications: USB 2.0, RS-232 Serial port, 10/100 Ethernet, and USB Host
- ENERGY STAR® certified
- Bluetooth Low Energy (BTLE) technology for enhanced location precision
- ZebraDesigner Essentials - easy label design tool free at
Technical Specifications
Standard Memory | 256 MB |
Application/Usage | Healthcare |
Manufacturing | |
Transportation & Logistic | |
Retail | |
Barcode Symbology Supported | Maxi Code |
MSI | |
PDF-417 | |
PDF417 | |
Planet Code | |
Plessey | |
POSTNET | |
QR Code | |
RSS Composite | |
UPC 2 and 5 Digit Extension | |
UPC-E | |
LOGMARS | |
ISBT-128 | |
Interleaved 2 of 5 | |
Industrial 2 of 5 | |
EAN-8 | |
EAN-13 | |
EAN 2 or 5 Digit Extension | |
UPC-A | |
Code 93 | |
Code 49 | |
Code 39 | |
Code 128 (A/B/C) | |
Code 128 | |
Code 11 | |
Codablock | |
Codabar | |
2D | |
AZTEC | |
Aztec Code | |
Maximum Print Width | 103.89 mm (4.09") |
Recommended Use | Label Print |
Connectivity Technology | Wired |
Features | Liner Take Up Spindle |
Peel Facility | Yes |
Print Color Capability | Monochrome |
Maximum Print Length | 1854.20 mm |
Real Time Clock | Yes |
Maximum Print Resolution (dpi) | 300 |
Frequency | 60 Hz |
50 Hz |
USB | Yes |
Serial Port | Yes |
USB Host | Yes |
Bluetooth | Yes |
Ethernet | Yes |
Ethernet Technology | Fast Ethernet |
Weight (Approximate) | 10.89 kg |
Height | 323.9 mm |
Width | 241.3 mm |
Display Screen | Yes |
Screen Size | 10.9 cm (4.3") |
Touchscreen | Yes |
Display Screen Type | LCD |
Energy Star | Yes |
Power Cable Localization | AUS |
EU | |
JP | |
US |
Language Emulation | EPL |
EPL2 | |
ZPL II | |
ZBI 2.0 | |
ZPL | |
EZPL |
Product Type | Thermal Transfer Printer |
Manufacturer Part Number | ZT23143T3P000FZ |
Manufacturer Website Address | http://www.zebra.com/ap/en.html |
Manufacturer | Zebra Technologies Corporation |
Product Model | ZT231 |
Product Name | ZT231 Thermal Transfer Printer |
Brand Name | Zebra |
Media Thickness | 250 µm |
Media Type | Black Mark |
Continuous Paper | |
Die-cut Label | |
Notch | |
Media Sensor | Moveable Sensor |
Reflective Media Sensor |
