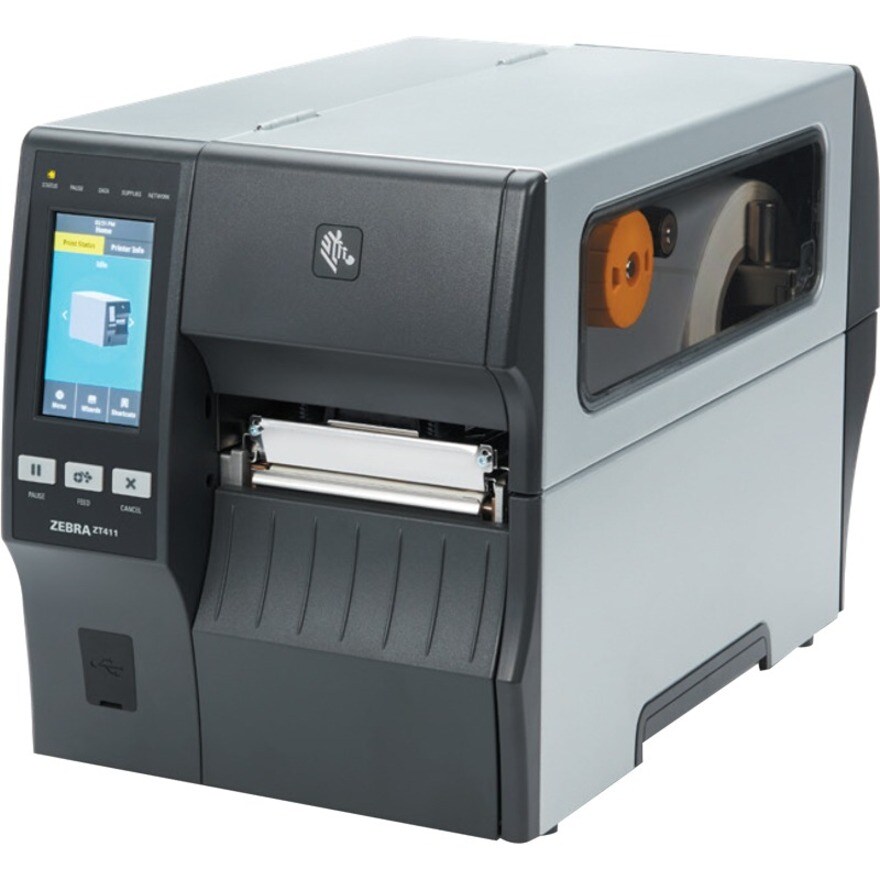

Product Overview
TT PRINTER ZT411 4 203 DPI UK/AU/JP/EU CORDS SERIAL USB 10/100 ETHERNET BLUETOOTH 4.1/MFI USB HOST PEEL W/ LINER TAKE-UP RFID UHF ENCODER: REST OF WORLD ROW EZPL
Specifications are provided for reference and are based on testing the ZT411™ printer using genuine Zebra® supplies. Results may vary in actual application settings or when using other-than-recommended Zebra supplies. Zebra recommends always qualifying any application with thorough testing.- Thermal transfer and direct thermal printing
- Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
- 203 dpi print resolution (8 dots / mm)
- Print speed per second up to 14" (356 mm / second)
- USB 2.0, high speed
- Bluetooth® 4.1 (including Apple®)
- Dual USB Host
- 512 MB Flash memory (64 MB User Available)
- Print Touch™ application
- Link-OS®-enabled
Technical Specifications
Memory
| Standard Memory | 256 MB |
Software
| Software Included | Link-OS |
Technical Information
| Application/Usage | Desktop |
| Industrial | |
| Barcode Symbology Supported | Industrial 2 of 5 |
| ISBT-128 | |
| EAN-13 | |
| EAN With 2 and 5 Digit Extension | |
| Data Matrix | |
| Code 93 | |
| Code 49 | |
| Code 39 | |
| Code 128-C | |
| Maxi Code | |
| Micro PDF | |
| MSI | |
| PDF417 | |
| Planet Code | |
| Plessey | |
| POSTNET | |
| QR Code | |
| RSS-14 | |
| Standard 2 of 5 | |
| TLC 39 | |
| UCC Case Codes | |
| UPC | |
| UPC-A | |
| UPC-E | |
| LOGMARS | |
| EAN-8 | |
| Interleaved 2 of 5 | |
| Aztec Code | |
| Codabar | |
| Codablock | |
| Code 11 | |
| Code 128-A | |
| Code 128-B | |
| Maximum Print Width | 103.89 mm (4.09") |
| Recommended Use | Label Print |
| Connectivity Technology | Wired |
| Features | Rugged |
| Bi-color LED | |
| Peel Facility | Yes |
| Print Color Capability | Monochrome |
| Maximum Print Length | 3.99 m |
| Optional Connectivity | Serial (RS-232) |
| Wireless LAN | |
| Parallel | |
| Maximum Print Resolution (dpi) | 203 |
Interfaces/Ports
| USB | Yes |
| USB Host | Yes |
Power Description
| Input Voltage | 120 V AC |
| 230 V AC |
Display & Graphics
| Display Screen | Yes |
| Screen Size | 10.9 cm (4.3") |
| Display Screen Type | LCD |
Network & Communication
| Bluetooth | Yes |
| Ethernet | Yes |
| Ethernet Technology | Fast Ethernet |
| Network Ready | Yes |
Physical Characteristics
| Weight (Approximate) | 16.33 kg |
| Height | 323.9 mm |
| Width | 269.2 mm |
| Depth | 495.3 mm |
Fonts & Emulation
| Language Emulation | ZPL II |
| ZPL | |
| XML | |
| EPL | |
| ZBI 2.0 |
Miscellaneous
| Platform Supported | PC |
| Certifications & Standards |
|
| Energy Star | Yes |
| Power Cable Localization | AUS |
| EU | |
| UK | |
| JP |
General Information
| Product Type | Direct Thermal/Thermal Transfer Printer |
| Manufacturer Part Number | ZT41142-T3P00C0Z |
| Manufacturer Website Address | http://www.zebra.com/ap/en.html |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | ZT411 |
| Product Name | ZT411 Industrial Printer |
| Product Series | ZT400 |
| Brand Name | Zebra |
Media Types & Handling
| Media Thickness | 250 µm |
| Maximum Roll Diameter | 203.20 mm |
| Media Type | Continuous Label |
| Continuous Paper | |
| Die-cut Label | |
| Label | |
| Linered Label | |
| Notch | |
| Black Mark | |
| Media Sensor | Transmissive Media Sensor |
| Reflective Media Sensor | |
| Maximum Label Width | 114 mm |
| Maximum Label Length | 990.60 mm |
