Product Overview

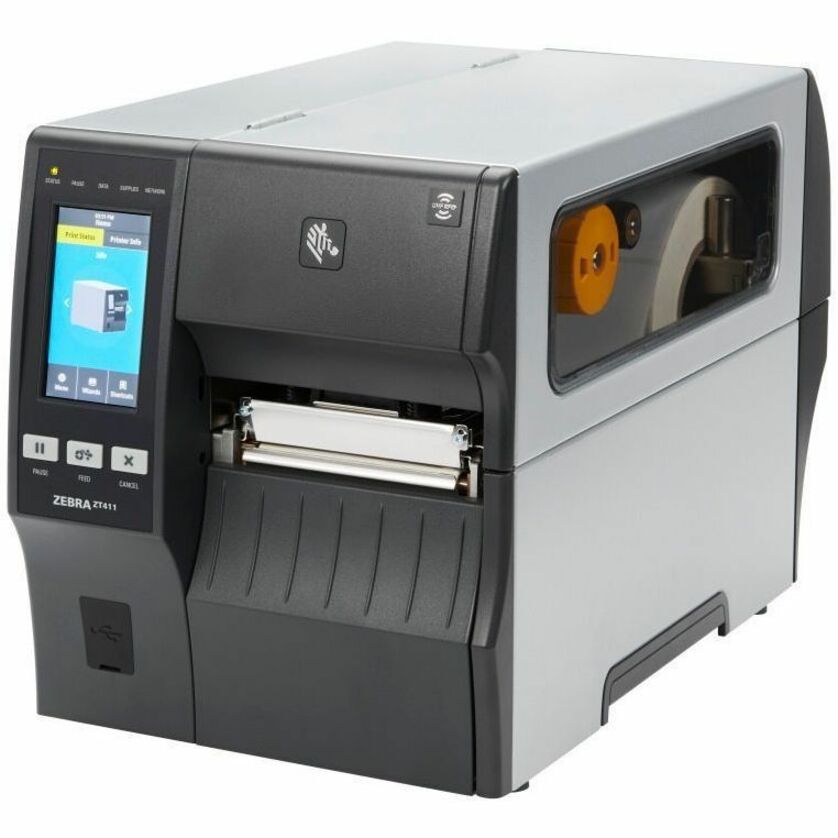

TT Printer ZT421; 6", 300 dpi, UK/AU/JP/EU Cords, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, RFID UHF Encoder: Rest of World ROW, EZPL
A New Level of Performance, Versatility and Ease of Use
Keep your critical operations running efficiently with Zebra's durable ZT400 Series printers. The ZT400 offers advanced technology that drives versatility, ease of use and performance to a new level. Available in three print resolutions and two print widths, the ZT400 Series addresses a broad array of applications throughout manufacturing, transportation and logistics, retail and more. See printer status at a glance and manage settings quickly using the large color touch display. Field-installable connectivity, media handling and RFID options let you easily add new features as your needs evolve. And your IT department will find ZT400 printers easy to integrate and manage, thanks to Zebra's Print DNATM suite of applications, utilities and developer tools-all powered by Link-OS. The result? The ZT400 offers the versatility, reliability and performance to meet your industrial printing needs - today and tomorrow.
Versatile to meet your evolving needs | Configure your way with multiple connectivity options
The ZT400 comes standard with Ethernet, Serial, USB, dual USB Host and Bluetooth 4.1. Add the optional dual-band wireless card with 802.11ac Wi-Fi and Bluetooth for blazing fast and reliable wireless connections.
Built to handle a wide range of media and applications
You can count on the ZT400 to print a variety of different label formats on a variety of different media types.The printer is offered in both 4 in. and 6 in. models, with 203 dpi, 300 dpi and 600 dpi (600 dpi available on 4 in. ZT411 only). Add factory- or field-installable RFID technology to print and encode labels for greater tracking abilities and deeper visibility. Select Zebra's exclusive ZT411 RFID On-metal Tagging Solution, which is the only dedicated option for printing and encoding thicker RFID labels for metal containers and assets.
Dual USB Host ports for added flexibility
Dual USB Host ports allow you to directly connect a wide range of USB device types. Use a memory stick to replicate firmware, files and configurations, or easily print and transfer formats. Simplify data entry by simultaneously connecting a scanner and keyboard - with two host ports, there's no need to plug and unplug peripherals.
Designed to evolve with your needs
You can customize the ZT400 with a range of media handling options that can be installed in minutes. Two open media slots accommodate additional communication options. And, the robust processing power and memory can support firmware upgrades and new Print DNA tools for years to come.
Effortless to integrate and operate | Large color touch display makes operation a snap
It's easy to set up and use the ZT400 with its intuitive icon-based interface. The 4.3-inch full-color touch display allows you to quickly navigate printer settings with the user friendly icon menu system to change languages, printer settings, connectivity options and more.
- Print Methods: Thermal transfer and direct thermal printing
- Construction: Metal frame and bi-fold metal media cover with enlarged clear
- viewing window
- Side-loading supplies path for simplified media and ribbon loading
- Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
- Communications: USB 2.0, high-speed, RS-232 Serial, 10/100 Ethernet,
- Bluetooth 4.1, Dual USB Host
- 4.3-inch color touch display with intuitive menu for quick operation and settings
- management
- Bi-colored status LEDs for quick printer status
- ENERGY STAR qualified
- Zebra Designer Essentials: easy label design tool free at
Technical Specifications
Flash Memory | 512 MB |
Standard Memory | 256 MB |
Application/Usage | Healthcare |
Industrial | |
Transportation & Logistic | |
Retail | |
Manufacturing | |
Barcode Symbology Supported | Interleaved 2 of 5 |
EAN-128 Subset B | |
EAN-128 Subset A | |
EAN With 2 and 5 Digit Extension | |
Data Matrix | |
Code 93 | |
Code 49 | |
Code 39 | |
Code 11 | |
Codablock | |
Codabar | |
RSS-14 | |
Standard 2 of 5 | |
TLC 39 | |
UCC Case Codes | |
UPC-A | |
UPC-E | |
EAN-128 Subset C | |
EAN-13 | |
EAN-8 | |
Industrial 2 of 5 | |
ISBT-128 | |
LOGMARS | |
Maxi Code | |
Micro PDF | |
MSI | |
PDF417 | |
Planet Code | |
Plessey | |
POSTNET | |
QR Code | |
Aztec Code | |
Maximum Print Width | 167.64 mm (6.60") |
Recommended Use | Label Print |
Connectivity Technology | Wired |
Features | Rugged |
Bi-color LED | |
Vertical Printing | |
Mobile Device Printing | Yes |
Print Color Capability | Monochrome |
Maximum Print Length | 2590.80 mm |
Real Time Clock | Yes |
Maximum Print Resolution (dpi) | 203 |
Energy Star | Yes |
Power Cable Localization | China |
Frequency | 50 Hz |
60 Hz |
Cutting Method | Automatic |
Cutter | Yes |
Cutter Type | Guillotine |
Display Screen | Yes |
Screen Size | 10.9 cm (4.3") |
Touchscreen | Yes |
Display Screen Type | LCD |
USB | Yes |
Serial Port | Yes |
USB Standard | USB 2.0 |
USB Host | Yes |
Weight (Approximate) | 18.14 kg |
Height | 323.9 mm |
Width | 336.6 mm |
Depth | 495.3 mm |
Language Emulation | EPL |
EPL2 | |
ZPL II | |
ZPL | |
ZBI 2.0 |
Bluetooth | Yes |
Ethernet | Yes |
Wireless LAN | Yes |
Ethernet Technology | Fast Ethernet |
RFID | Yes |
Near Field Communication (NFC) | Yes |
Product Type | Direct Thermal/Thermal Transfer Printer |
Manufacturer Part Number | ZT42163-T0P00C0Z |
Manufacturer Website Address | http://www.zebra.com/ap/en.html |
Manufacturer | Zebra Technologies Corporation |
Product Model | ZT421 |
Product Name | ZT421 Direct Thermal/Thermal Transfer Printer |
Product Series | ZT400 |
Brand Name | Zebra |
Media Thickness | 250 µm |
Maximum Roll Diameter | 203.20 mm |
Media Type | Black Mark |
Notch | |
Label | |
Continuous Paper | |
Die-cut Label | |
Media Sensor | Dual Media Sensor |
Reflective Media Sensor | |
Transmissive Media Sensor | |
Maximum Label Width | 104 mm |
Maximum Label Length | 2591 mm |
