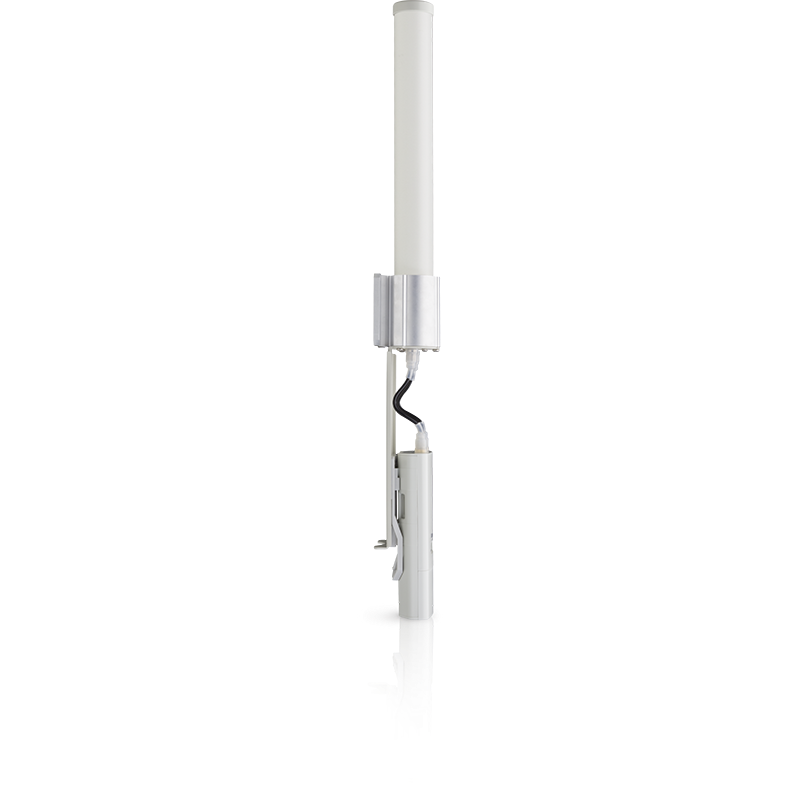

airMAX 5 GHz, 10 dBi Omni
Product Overview
AMO-5G10 | |
|---|---|
Dimensions | 582 x 90 x 65 mm (22.9 x 3.5 x 2.6") |
Weight | 680 g (1.5 lb) |
Frequency Range | 5.45 - 5.85 GHz |
Gain | 10 dBi |
Elevation Beamwidth | 12° |
Max. VSWR | 1.6:1 |
Downtilt | 4° |
Wind Survivability | 200 km/h (125 mph) |
Wind Loading | 44.5 N @ 160 km/h (10 lbf @ 100 mph) |
Polarization | Dual-Linear |
Cross-pol Isolation | 25 dB min. |
ETSI Specification | EN 302 326 DN2 |
Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
Technical Specifications
AMO-5G10 | |
|---|---|
Dimensions | 582 x 90 x 65 mm (22.9 x 3.5 x 2.6") |
Weight | 680 g (1.5 lb) |
Frequency Range | 5.45 - 5.85 GHz |
Gain | 10 dBi |
Elevation Beamwidth | 12° |
Max. VSWR | 1.6:1 |
Downtilt | 4° |
Wind Survivability | 200 km/h (125 mph) |
Wind Loading | 44.5 N @ 160 km/h (10 lbf @ 100 mph) |
Polarization | Dual-Linear |
Cross-pol Isolation | 25 dB min. |
ETSI Specification | EN 302 326 DN2 |
Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
